Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Lighting (ext) / Headlight Ecu / Installation

INSTALLATION

CAUTION / NOTICE / HINT

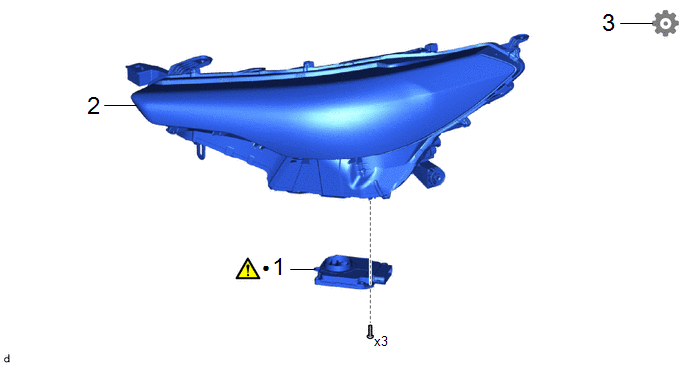

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

HEADLIGHT ECU SUB-ASSEMBLY

-

-

-

2

HEADLIGHT ASSEMBLY

-

-

-

-

3

PERFORM INITIALIZATION

-

-

-

*1

HEADLIGHT UNIT ASSEMBLY

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL HEADLIGHT ECU SUB-ASSEMBLY

NOTICE:

Make sure to replace the headlight ECU sub-assembly with a new one. Failure to do so may cause water ingress.

2. INSTALL HEADLIGHT ASSEMBLY

Click here

3. PERFORM INITIALIZATION

Click here
