Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

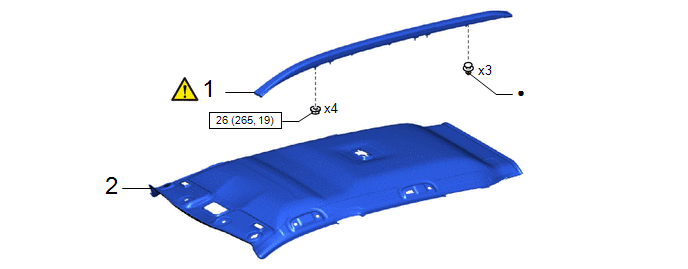

Procedure		Part Name Code
1	ROOF RACK ASSEMBLY	63470B		-	-
2	ROOF HEADLINING ASSEMBLY	63310	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

CAUTION / NOTICE / HINT

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

PROCEDURE

1. INSTALL ROOF RACK ASSEMBLY

NOTICE: When installing the roof rack assembly, heat the vehicle body using a heat light.

Standard:

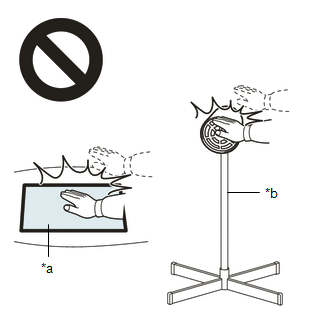

CAUTION:

• Do not touch the heat light and heated parts.

  *a	Heated Part
  *b	Heat Light

• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the vehicle body excessively.

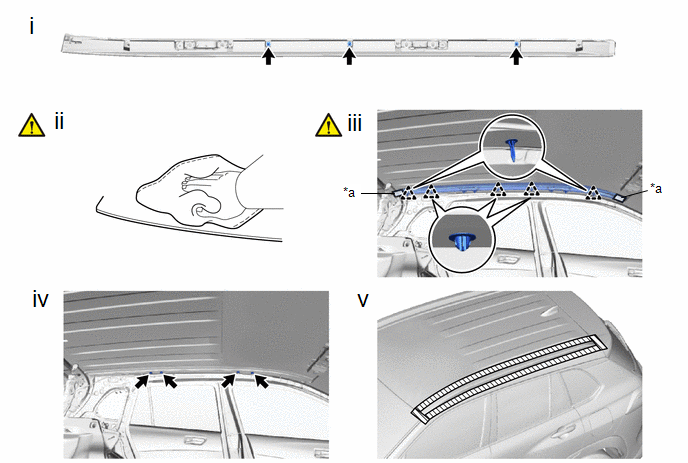

(1) Install 3 new clips.

(2) Clean the vehicle body.

1. Using a heat light, heat the vehicle body.

2. Remove any remaining double-sided tape from the vehicle body.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:

• Installing the roof rack assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
• Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

(3) Install the roof rack assembly.

1. Using a heat light, heat the vehicle body.

2. Remove the release paper from the roof rack assembly.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Engage the clips to install the roof rack assembly.

HINT:

Press the roof rack assembly firmly to install it.

(4) Install the 4 nuts.

Torque:

26 N·m {265 kgf·cm, 19 ft·lbf}

(5) Remove the protective tape.

2. INSTALL ROOF HEADLINING ASSEMBLY

Click here
