Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Wheel Opening Moulding (for Front) / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

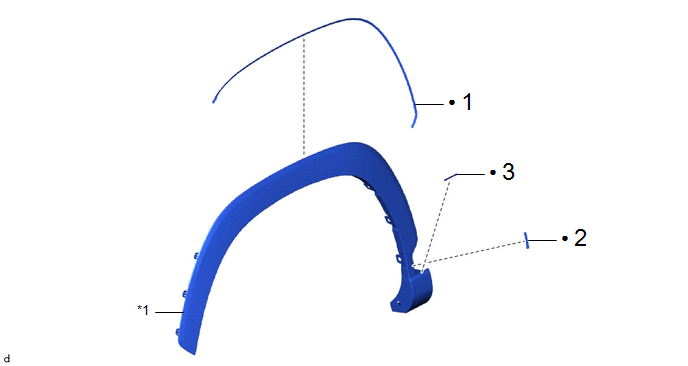

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

NO. 4 FRONT WHEEL OPENING EXTENSION PAD

53854

-

-

-

2

NO. 3 FRONT WHEEL OPENING EXTENSION PAD

53853

-

-

-

3

NO. 5 FRONT WHEEL OPENING EXTENSION PAD

53855B

-

-

-

*1

FRONT FENDER MOULDING

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

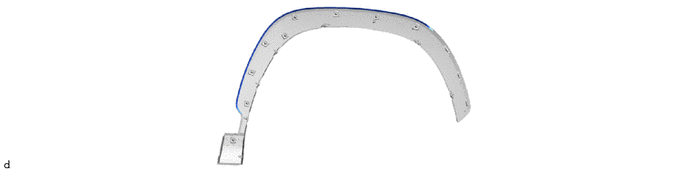

1. REMOVE NO. 4 FRONT WHEEL OPENING EXTENSION PAD

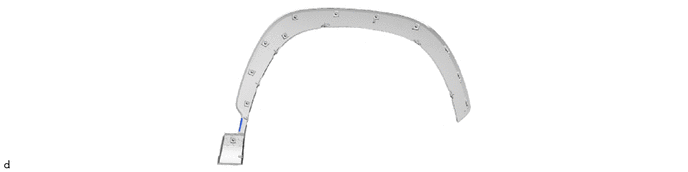

2. REMOVE NO. 3 FRONT WHEEL OPENING EXTENSION PAD

3. REMOVE NO. 5 FRONT WHEEL OPENING EXTENSION PAD
