Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

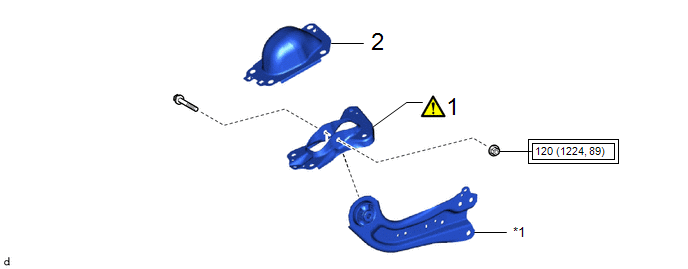

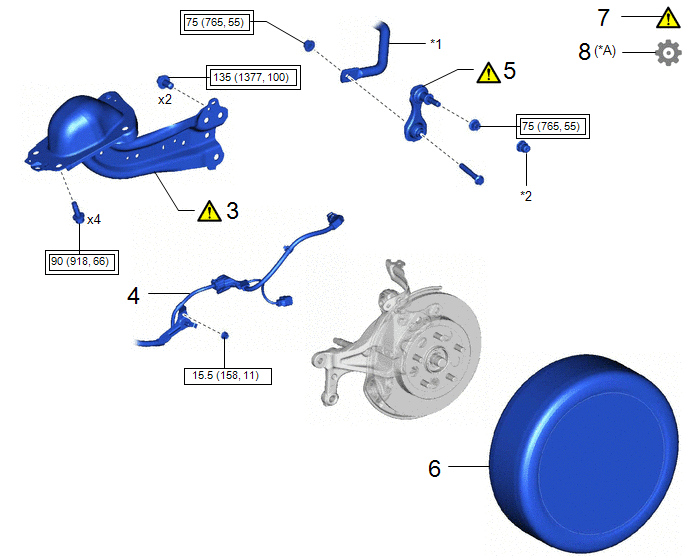

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR SUSPENSION ARM BRACKET

48727

-

-

2

REAR NO. 1 SUSPENSION SUPPORT COVER

48753C

-

-

-

*1

REAR TRAILING ARM ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

Procedure

Part Name Code

3

REAR TRAILING ARM ASSEMBLY

48780E

-

-

4

NO. 2 PARKING BRAKE CABLE ASSEMBLY

890C0A

-

-

-

5

REAR STABILIZER LINK ASSEMBLY

48840A

-

-

6

INSTALL REAR WHEEL

-

-

-

-

7

INSPECT AND ADJUST REAR WHEEL ALIGNMENT

-

-

-

8

PERFORM CALIBRATION

-

-

-

*A

w/ Parking Assist Monitor System

-

-

*1

REAR STABILIZER BAR

*2

CAP

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR SUSPENSION ARM BRACKET

*a

Upper Surface of Rear Suspension Arm Bracket

*b

Edge of Rear Trailing Arm Assembly

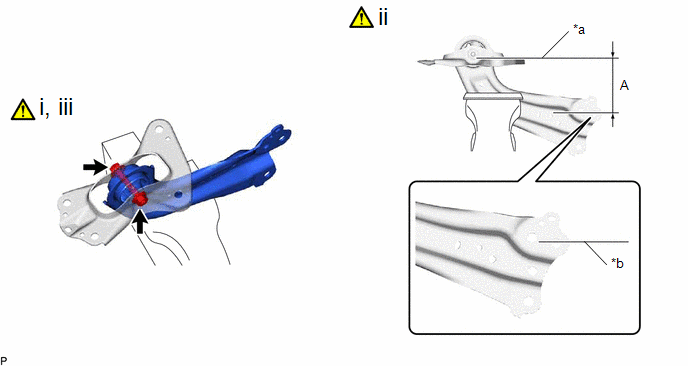

(1) Temporarily install the rear suspension arm bracket to the rear trailing arm assembly with the bolt and nut.

NOTICE:

  • Tighten the nut with the bolt secured.
  • Insert the bolt from the inside of the vehicle.

(2) Position the rear trailing arm assembly as shown in the illustration.

Reference Length (A):

116 mm (4.567 in.)

(3) Fully tighten the nut.

Torque:

120 N·m {1224 kgf·cm, 89 ft·lbf}

NOTICE:

Tighten the nut with the bolt secured.

2. INSTALL REAR NO. 1 SUSPENSION SUPPORT COVER

3. INSTALL REAR TRAILING ARM ASSEMBLY

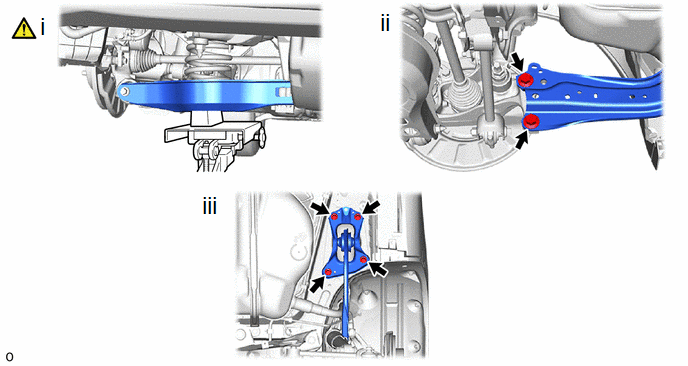

(1) Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.

NOTICE:

  • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
  • Make sure to perform this operation with the vehicle kept as low as possible.

(2) Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts.

Torque:

135 N·m {1377 kgf·cm, 100 ft·lbf}

(3) Install the rear trailing arm assembly to the vehicle with the 4 bolts.

Torque:

90 N·m {918 kgf·cm, 66 ft·lbf}

4. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY

Torque:

15.5 N·m {158 kgf·cm, 11 ft·lbf}

5. INSTALL REAR STABILIZER LINK ASSEMBLY

Click here

6. INSTALL REAR WHEEL

Click here

7. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Click here

8. PERFORM CALIBRATION (w/ Parking Assist Monitor System)

Parking assist monitor system

Automatic headlight beam level control system
