Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

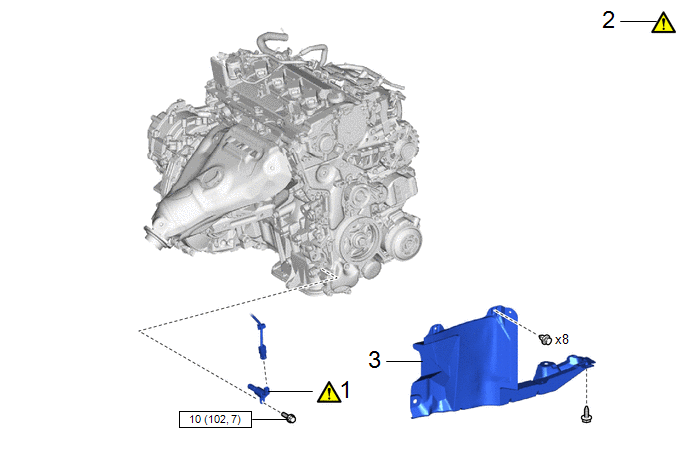

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

OIL PRESSURE CONTROL VALVE ASSEMBLY

15250

-

-

2

INSPECT FOR ENGINE OIL LEAK

-

-

-

3

REAR ENGINE UNDER COVER RH

51443C

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

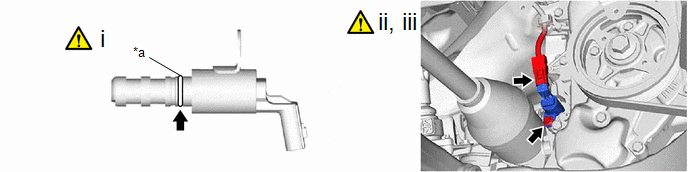

1. INSTALL OIL PRESSURE CONTROL VALVE ASSEMBLY

*a

O-Ring

-

-

(1) Apply a small amount of engine oil to the O-ring of the oil pressure control valve assembly.

(2) Using an 8 mm socket wrench, install the oil pressure control valve assembly to the No. 2 timing chain cover assembly with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

NOTICE:

  • When reusing the oil pressure control valve assembly, inspect the O-ring.
  • Make sure that the O-ring is not cracked or does not move out of place during installation.

(3) Connect the oil pressure control valve assembly connector.

2. INSPECT FOR ENGINE OIL LEAK

Click here

3. INSTALL REAR ENGINE UNDER COVER RH

Click here
