Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Interior / Seat Belt / Front Seat Inner Belt Assembly / Installation

INSTALLATION

CAUTION / NOTICE / HINT

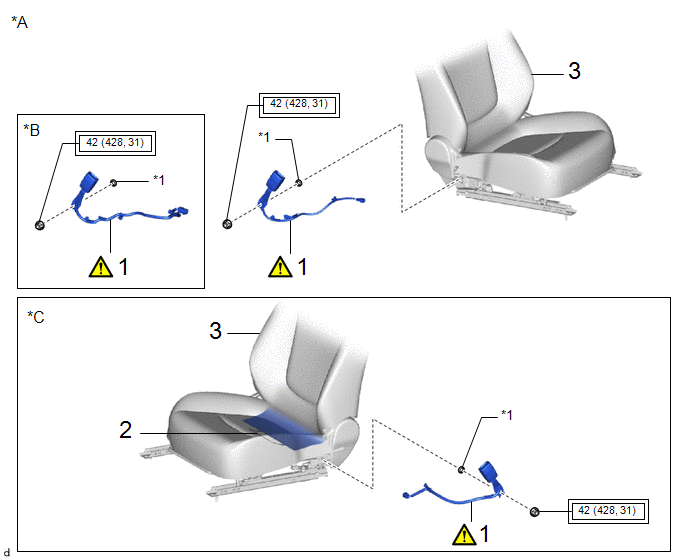

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT SEAT INNER BELT ASSEMBLY

73230

-

-

2

SEPARATE TYPE FRONT SEATBACK COVER

71073S

-

-

-

3

FRONT SEAT ASSEMBLY

-

-

-

*A

for Driver Side Manual Seat

*B

for Driver Side Power Seat

*C

for Front Passenger Seat

-

-

*1

Front Seat Belt Anchor Plate

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL FRONT SEAT INNER BELT ASSEMBLY

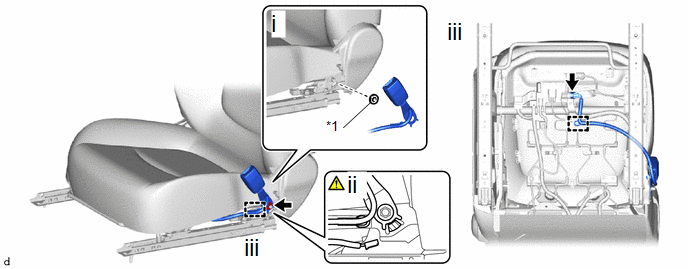

(a) for Driver Side Manual Seat:

*1

Front Seat Belt Anchor Plate

-

-

Protruding Part

-

-

(1) Install the front seat belt anchor plate as shown in the illustration.

(2) Install the front seat inner belt assembly with the nut.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.

(3) Engage each clamp.

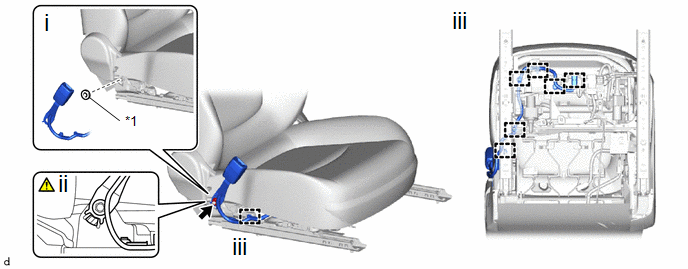

(b) for Driver Side Power Seat:

*1

Front Seat Belt Anchor Plate

-

-

Protruding Part

-

-

(1) Install the front seat belt anchor plate as shown in the illustration.

(2) Install the front seat inner belt assembly with the nut.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.

(3) Engage each clamp.

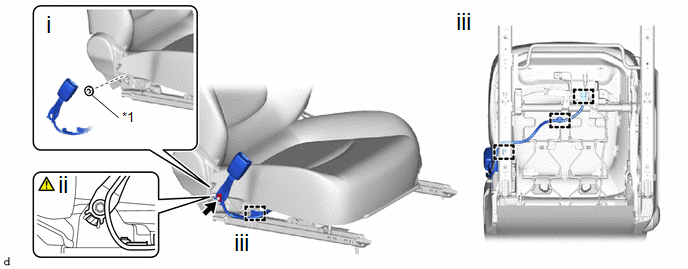

(c) for Front Passenger Seat:

*1

Front Seat Belt Anchor Plate

-

-

Protruding Part

-

-

(1) Install the front seat belt anchor plate as shown in the illustration.

(2) Install the front seat inner belt assembly with the nut.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.

(3) Engage each clamp.

2. CONNECT SEPARATE TYPE FRONT SEATBACK COVER

3. INSTALL FRONT SEAT ASSEMBLY

  • for Manual Seat:

    Click here

  • for Power Seat:

    Click here
