Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fks (lubrication) / Oil Pump / Installation

INSTALLATION

CAUTION / NOTICE / HINT

Procedure

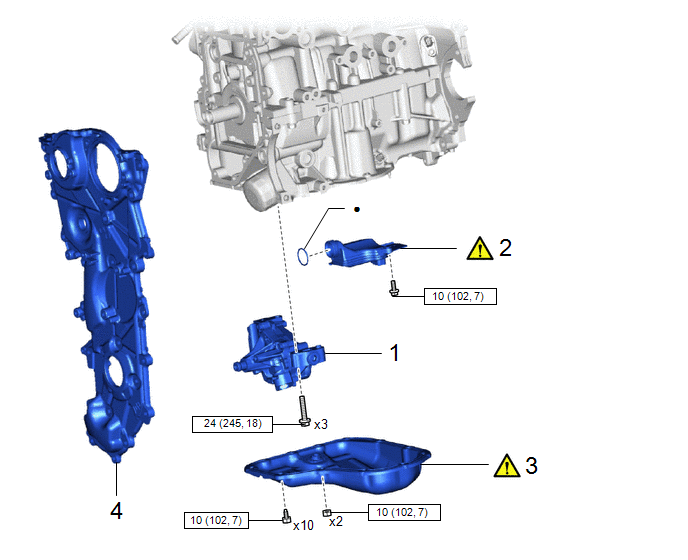

Part Name Code

1

OIL PUMP ASSEMBLY

15100

-

-

-

2

OIL STRAINER SUB-ASSEMBLY

15104

-

-

3

OIL PAN SUB-ASSEMBLY

12101

-

-

4

TIMING CHAIN COVER ASSEMBLY

11310

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL OIL PUMP ASSEMBLY

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

2. INSTALL OIL STRAINER SUB-ASSEMBLY

Click here

3. INSTALL OIL PAN SUB-ASSEMBLY

Click here

4. INSTALL TIMING CHAIN COVER ASSEMBLY

Click here
