Toyota Corolla Cross: Ignition Switch

Toyota Corolla Cross (2022-2026) Service Manual / Engine & Hybrid System / M20a-fks (starting) / Ignition Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

Procedure

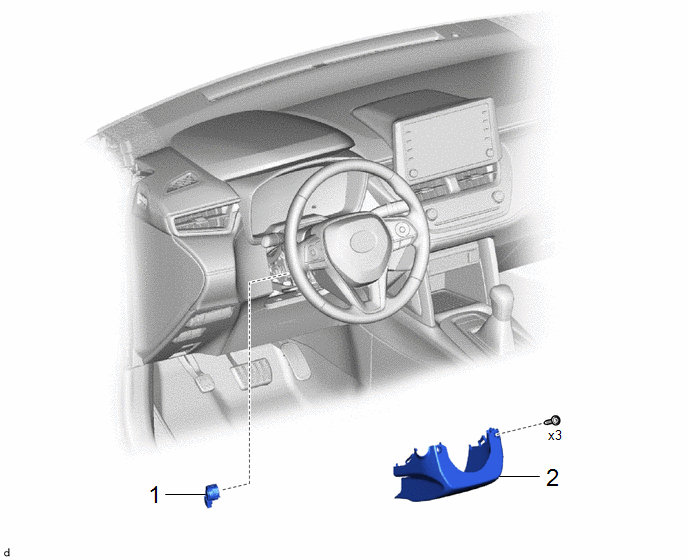

Part Name Code

1

LOWER STEERING COLUMN COVER

45287

-

-

2

IGNITION OR STARTER SWITCH ASSEMBLY

84450

-

-

-

PROCEDURE

1. REMOVE LOWER STEERING COLUMN COVER

Click here

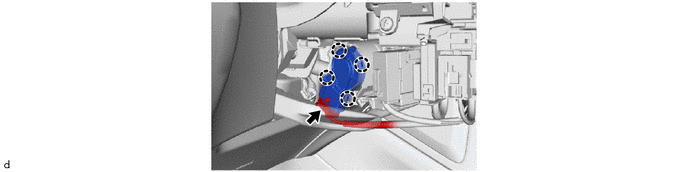

2. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT IGNITION OR STARTER SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Between all terminals

LOCK

10 kΩ or higher

6 (ACC) - 7 (AM1)

ACC

Below 1 Ω

6 (ACC) - 7 (AM1) - 8 (IG1)

ON

Below 1 Ω

5 (ST1) - 7 (AM1) - 8 (IG1)

START

Below 1 Ω

If the result is not as specified, replace the ignition or starter switch assembly.

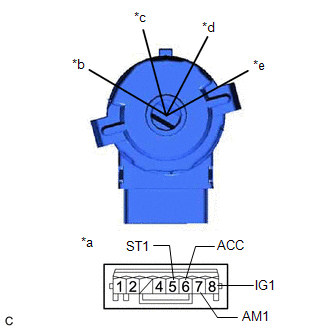

*a

Component without harness connected

(Ignition or Starter Switch Assembly)

*b

LOCK

*c

ACC

*d

ON

*e

START

Installation

INSTALLATION

CAUTION / NOTICE / HINT

Procedure

Part Name Code

1

IGNITION OR STARTER SWITCH ASSEMBLY

-

-

-

-

2

LOWER STEERING COLUMN COVER

-

-

-

-

PROCEDURE

1. INSTALL IGNITION OR STARTER SWITCH ASSEMBLY

2. INSTALL LOWER STEERING COLUMN COVER

Click here
