Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

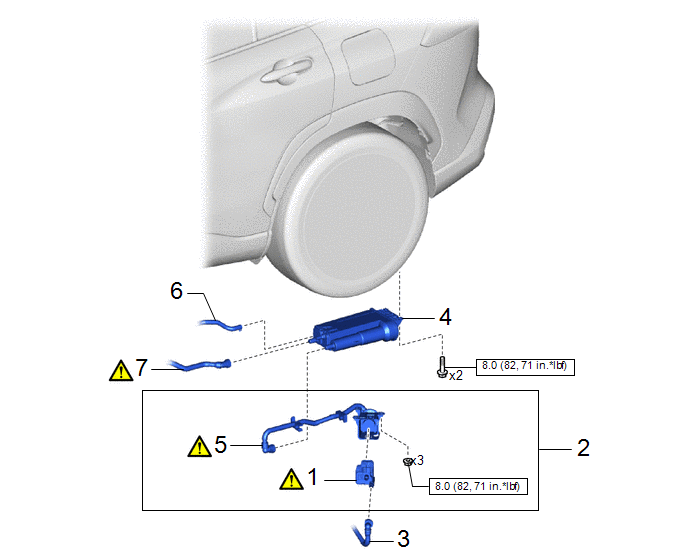

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

LEAK DETECTION PUMP SUB-ASSEMBLY

-

-

-

2

INSTALL CHARCOAL WITH OUTLET HOSE CANISTER ASSEMBLY

77730B

-

-

-

3

FUEL TANK VENT HOSE

77404

-

-

-

4

CANISTER (CHARCOAL CANISTER ASSEMBLY)

77740

-

-

-

5

CONNECT CHARCOAL WITH OUTLET HOSE CANISTER ASSEMBLY

77730B

-

-

6

CHARCOAL CANISTER HOSE

77759A

-

-

-

7

FUEL TANK VENT HOSE SUB-ASSEMBLY

77404

-

-

PROCEDURE

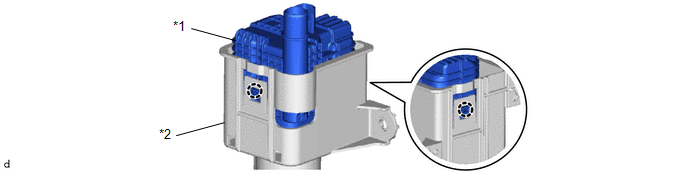

1. INSTALL LEAK DETECTION PUMP SUB-ASSEMBLY

HINT:

Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

*1

Leak Detection Pump Sub-assembly

*2

No. 2 charcoal canister filter

(1) Engage the 2 claws to install a new leak detection pump sub-assembly to the No. 2 charcoal canister filter.

NOTICE:

  • Do not allow foreign matter such as grease, oil or water to adhere to the O-rings.
  • Ensure that the claws are engaged properly.

2. INSTALL CHARCOAL WITH OUTLET HOSE CANISTER ASSEMBLY

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

3. CONNECT FUEL TANK VENT HOSE

4. INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

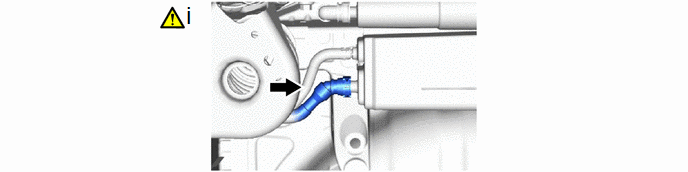

5. CONNECT CHARCOAL WITH OUTLET HOSE CANISTER ASSEMBLY

(1) Connect the fuel tank vent hose to the canister (charcoal canister assembly).

Click here

6. CONNECT CHARCOAL CANISTER HOSE

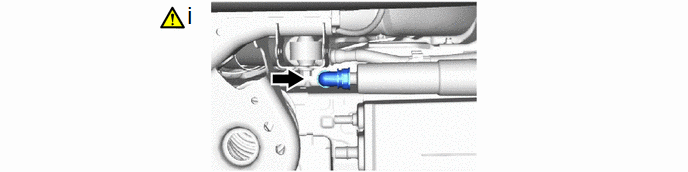

7. CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY

(1) Connect the fuel tank vent hose sub-assembly to the canister (charcoal canister assembly).

Click here
