Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

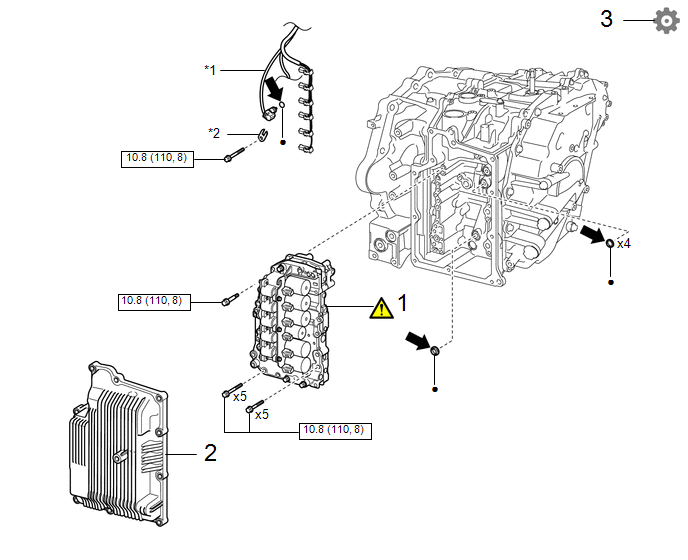

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSMISSION VALVE BODY ASSEMBLY

35410J

-

-

2

TRANSAXLE SIDE COVER SUB-ASSEMBLY

35015Y

-

-

-

3

RESET MEMORY

-

-

-

*1

TRANSMISSION WIRE

*2

TEMPERATURE SENSOR CLAMP

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Toyota Genuine CVT Fluid FE

-

-

CAUTION / NOTICE / HINT

HINT:

Shift shock may increase after replacing the transmission valve body assembly. In this case, shift shock will reduce as the vehicle is driven.

PROCEDURE

1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

*1

Manual Valve

*2

Manual Valve Link Lever Sub-assembly

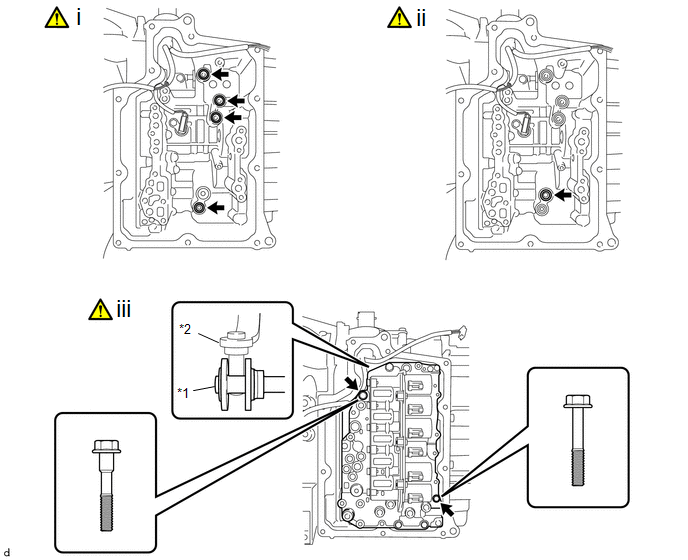

(1) Coat 4 new transaxle case gaskets with Toyota Genuine CVT fluid FE and install them to the transaxle case sub-assembly.

(2) Coat a new front oil pump cover gasket with Toyota Genuine CVT fluid FE and install it to the transaxle case sub-assembly.

(3) Align the slit portion of the manual valve and the manual valve link lever sub-assembly as shown in the illustration, and temporarily install the transmission valve body assembly to the transaxle case sub-assembly with the 2 bolts.

Bolt Length:

40 mm (1.57 in.)

Toyota Genuine CVT Fluid FE

-

-

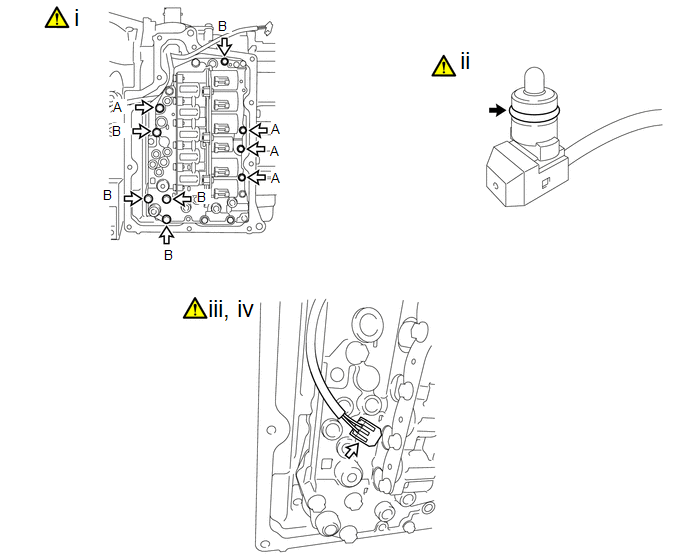

(1) Temporarily install the 9 bolts.

Bolt Length:

Bolt (A)

Bolt (B)

40 mm (1.57 in.)

55 mm (2.17 in.)

(2) Coat a new O-ring with Toyota Genuine CVT fluid FE and install it to the temperature sensor.

(3) Connect the temperature sensor to the transmission valve body assembly.

NOTICE:

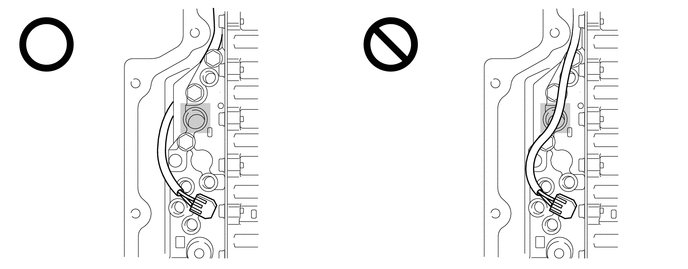

To prevent it from being pinched between the transmission valve body assembly and the transaxle side cover sub-assembly, do not let the transmission wire ride up over the area shown in the illustration.

Do not let transmission wire protrude into this area.

-

-

(4) Temporarily install the temperature sensor clamp to the transmission valve body assembly with the bolt.

Bolt Length:

55 mm (2.17 in.)

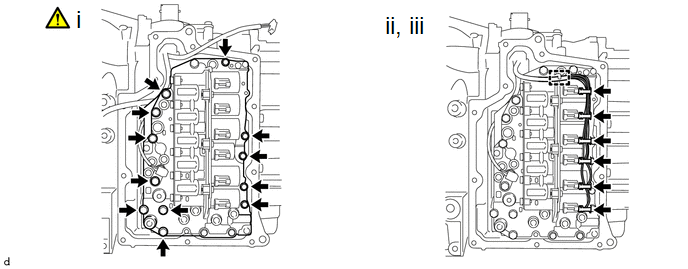

(1) Fully tighten the 12 bolts.

Torque:

10.8 N·m {110 kgf·cm, 8 ft·lbf}

(2) Connect the 6 solenoid valve connectors.

(3) Engage the clamp to connect the transmission wire to the solenoid lock plate.

2. INSTALL TRANSAXLE SIDE COVER SUB-ASSEMBLY

Click here

3. RESET MEMORY

NOTICE:

If continuously variable transaxle parts have been replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary.

Click here
