Toyota Corolla Cross: Combination Switch
Inspection
INSPECTION
PROCEDURE
1. INSPECT DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY)
(a) Check the resistance.
|
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|

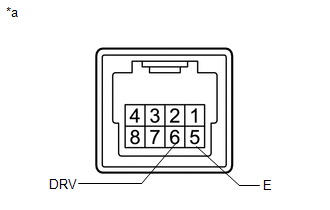

6 (DRV) - 5 (E)
|
Drive mode select switch (combination switch assembly) being
pushed and held
|
Below 1 Ω
|
|
Drive mode select switch (combination switch assembly) not pushed
|
10 kΩ or higher
|
If the result is not as specified, replace the drive mode select switch
(combination switch assembly).
|
|
(b) Check illumination.
|
(1) Apply auxiliary battery voltage between the terminals of the switch,
and check the illumination condition of the drive mode select switch (combination
switch assembly).
Standard:
|
Measurement Condition
|
Specified Condition
|
|

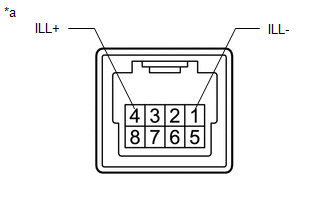

Auxiliary battery positive (+) → 4 (ILL+)
Auxiliary battery negative (-) → 1 (ILL-)
|
Illuminates
|
If the result is not as specified, replace the drive mode select switch
(combination switch assembly).
|
|
|
*a
|
Component without harness connected
(Drive Mode Select Switch (Combination Switch Assembly))
|
|
|
