Toyota Corolla Cross: Hybrid Transaxle Oil Seal

Components

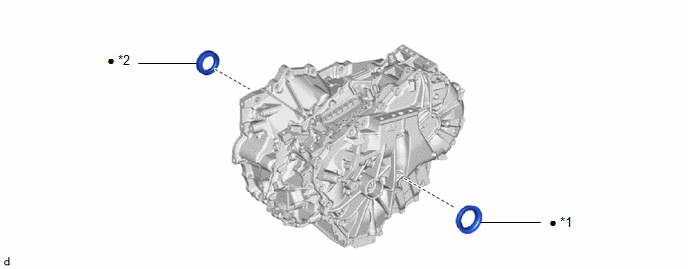

COMPONENTS

ILLUSTRATION

*1

FRONT DRIVE SHAFT OIL SEAL LH

*2

FRONT DRIVE SHAFT OIL SEAL RH

Non-reusable part

-

-

Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front drive shaft oil seal LH or front drive shaft oil seal RH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Front wheel alignment adjustment

  • Perform "Reset Memory"
  • Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Brake system warning light (yellow indicator) illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

Suspension, tires, etc.

Rear television camera assembly optical axis (Back camera position setting)

Parking Assist Monitor System

PROCEDURE

1. REMOVE FRONT DRIVE SHAFT ASSEMBLY

Click here

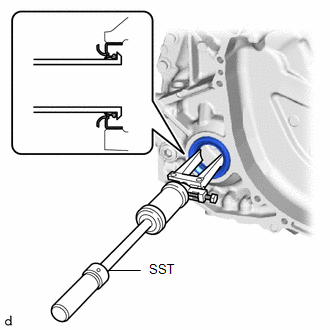

2. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

(a) Using SST, remove the front drive shaft oil seal LH from the hybrid vehicle transaxle assembly.

SST: 09308-00010

NOTICE:

Be careful not to damage the hybrid vehicle transaxle assembly.

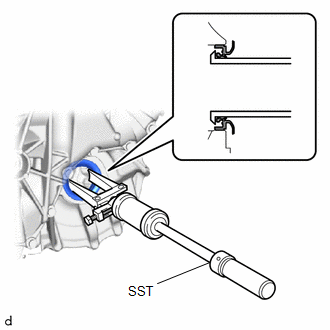

3. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

(a) Using SST, remove the front drive shaft oil seal RH from the hybrid vehicle transaxle assembly.

SST: 09308-00010

NOTICE:

Be careful not to damage the hybrid vehicle transaxle assembly.

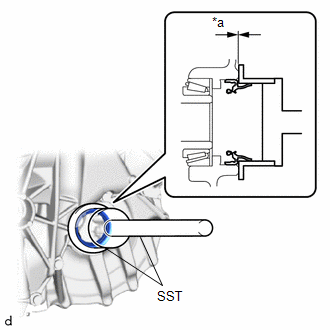

4. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

(a) Using SST and a hammer, install a new front drive shaft oil seal RH to the hybrid vehicle transaxle assembly.

*a

Depth

SST: 09316-10010

SST: 09950-70010

09951-07100

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:

  • Make sure that the outer lip of the front drive shaft oil seal RH is not pinched by SST.
  • Do not allow foreigh matter to attach to the inner lip and outer lip of the front drive shaft oil seal RH.
  • Do not install the front drive shaft oil seal RH at an angle.
  • Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal RH.

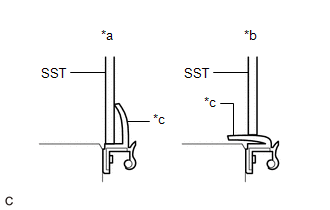

*a

Correct

*b

Incorrect

*c

Outer Lip

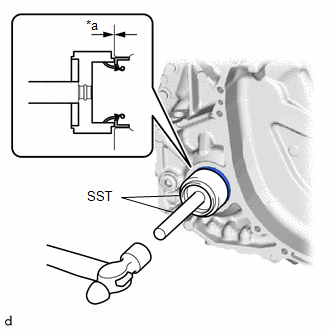

5. INSTALL FRONT DRIVE SHAFT OIL SEAL LH

(a) Using SST and a hammer, install a new front drive shaft oil seal LH to the hybrid vehicle transaxle assembly.

SST: 09316-20011

SST: 09517-30010

*a

Depth

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:

  • Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.
  • Do not allow foreigh matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.
  • Do not install the front drive shaft oil seal LH at an angle.
  • Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.

*a

Correct

*b

Incorrect

*c

Outer Lip

6. INSTALL FRONT DRIVE SHAFT ASSEMBLY

Click here
