Toyota Corolla Cross (2022-2026) Service Manual / Drivetrain / Pb10 (hybrid Transmission / Transaxle) / Input Shaft Oil Seal / Components

COMPONENTS

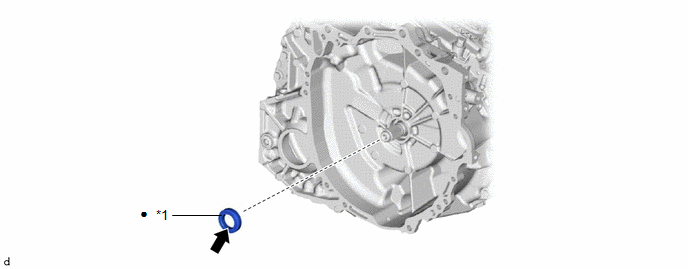

ILLUSTRATION

*1

INPUT SHAFT TYPE T OIL SEAL

-

-

MP grease

●

Non-reusable part
