Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

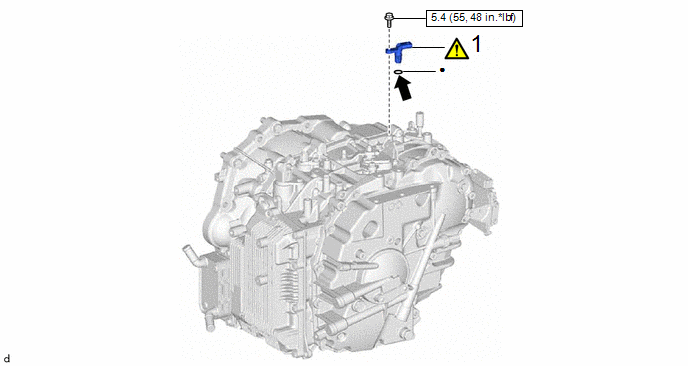

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSMISSION REVOLUTION SENSOR (NOUT)

89413M

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Toyota Genuine CVT fluid FE

-

-

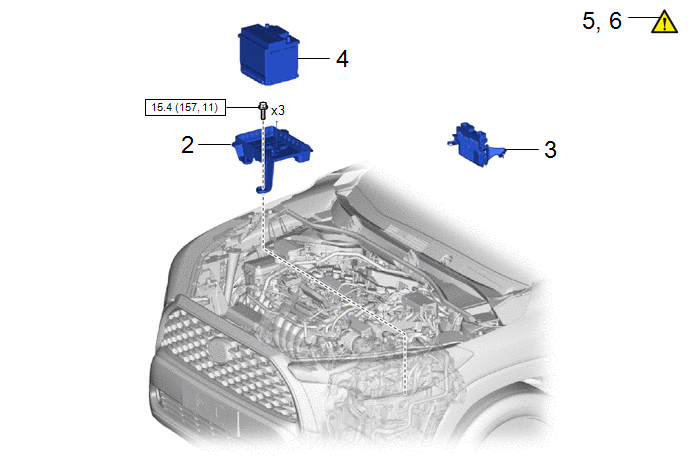

Procedure

Part Name Code

2

BATTERY CLAMP SUB-ASSEMBLY

74404A

-

-

-

3

ECM

89661

-

-

-

4

AUXILIARY BATTERY

-

-

-

-

5

INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK

-

-

-

6

CHECK DATA LIST

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

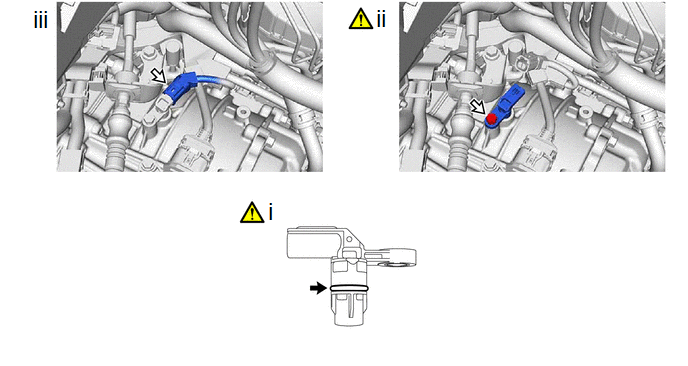

1. INSTALL TRANSMISSION REVOLUTION SENSOR (NOUT)

Toyota Genuine CVT fluid FE

-

-

(1) Coat a new O-ring with Toyota Genuine CVT fluid FE and install it to the transmission revolution sensor (NOUT).

NOTICE:

Ensure that the O-ring is not twisted.

(2) Install the transmission revolution sensor (NOUT) to the transaxle case sub-assembly with the bolt.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

NOTICE:

Be careful not to damage the O-ring.

(3) Connect the transmission revolution sensor (NOUT) connector.

2. INSTALL BATTERY CLAMP SUB-ASSEMBLY

Click here

3. INSTALL ECM

Click here

4. INSTALL AUXILIARY BATTERY

Click here

5. INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK

Click here

6. CHECK DATA LIST

Click here
