Toyota Corolla Cross: Inspection

Toyota Corolla Cross (2022-2026) Service Manual / Drivetrain / K120 (cvt) / Revolution Sensor (nss Sensor) / Inspection

INSPECTION

PROCEDURE

1. INSPECT TRANSMISSION REVOLUTION SENSOR (NSS)

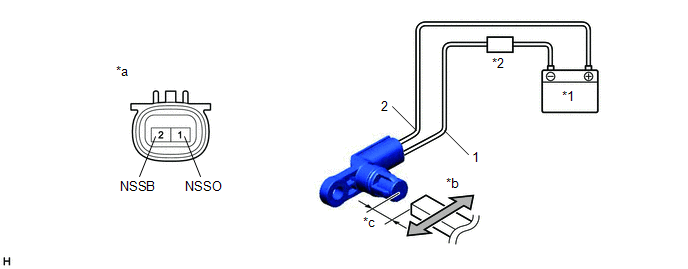

(a) Connect the battery to the transmission revolution sensor (NSS) as shown in the illustration.

*1

Battery

*2

Ammeter

*a

Component without harness connected

(Transmission Revolution Sensor (NSS))

*b

Magnet

*c

5 mm (0.197 in.) or less

-

-

(b) Wave a magnet left and right 5 mm (0.197 in.) or less from the tip of the transmission revolution sensor (NSS) to output a high/low signal while measuring the current.

NOTICE:

Make sure to wave the magnet during the inspection. The current will not change unless the magnet is moved as shown in the illustration.

(c) Measure the current according to the value(s) in the table below.

Standard Current:

Tester Connection

Condition

Specified Condition

1 (NSSO) - 2 (NSSB)

Low signal

4 to 8 mA

High signal

12 to 16 mA

(d) If the result is not as specified, replace the transmission revolution sensor (NSS).
