Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

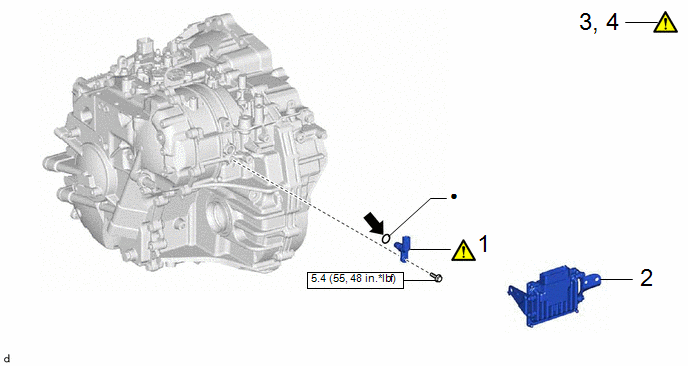

COMPONENTS (INSTALLATION)
|
Procedure |
Part Name Code |
.png) |
.png) |
.png) |
|
|---|---|---|---|---|---|
|
1 |
TRANSMISSION REVOLUTION SENSOR (NSS) |
89413T |
|
- |
- |
|
2 |
TCM |
89535B |
- |
- |
- |
|
3 |
INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK |
- |
|
- |
- |
|
4 |
CHECK DATA LIST |
- |
|
- |
- |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
.png) |
Toyota Genuine CVT Fluid FE |
- |
- |
PROCEDURE
1. INSTALL TRANSMISSION REVOLUTION SENSOR (NSS)
|
|
Toyota Genuine CVT fluid FE |
- |
- |

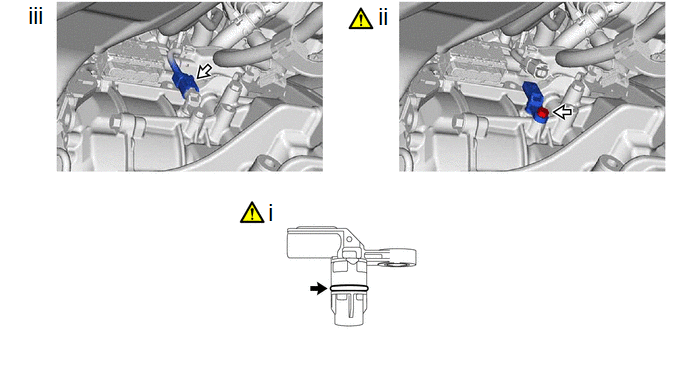

(1) Coat a new O-ring with Toyota Genuine CVT fluid FE and install it to the transmission revolution sensor (NSS).
NOTICE:
Ensure that the O-ring is not twisted.
(2) Install the transmission revolution sensor (NSS) to the transaxle case sub-assembly with the bolt.
NOTICE:
Be careful not to damage the O-ring.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
(3) Connect the transmission revolution sensor (NSS) connector.
2. INSTALL TCM
Click here .gif)
3. INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK
Click here
4. CHECK DATA LIST
Click here
