Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

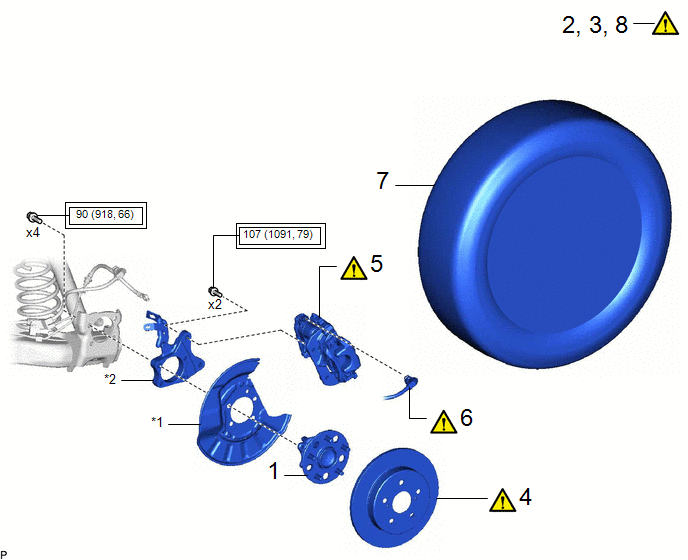

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR AXLE HUB AND BEARING ASSEMBLY

42450B

-

-

-

2

INSPECT REAR AXLE HUB BEARING LOOSENESS

-

-

-

3

INSPECT REAR AXLE HUB RUNOUT

-

-

-

4

REAR DISC

42431

-

-

5

REAR DISC BRAKE CALIPER ASSEMBLY

-

-

-

6

NO. 2 PARKING BRAKE WIRE ASSEMBLY

890C0A

-

-

7

REAR WHEEL

-

-

-

-

8

CHECK FOR SPEED SENSOR SIGNAL

-

-

-

*1

REAR DISC BRAKE DUST COVER SUB-ASSEMBLY

*2

REAR CALIPER SUPPORT BRACKET

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY

Torque:

90 N·m {918 kgf·cm, 66 ft·lbf}

2. INSPECT REAR AXLE HUB BEARING LOOSENESS

Click here

3. INSPECT REAR AXLE HUB RUNOUT

Click here

4. INSTALL REAR DISC

Click here

5. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

Click here

6. CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click here

7. INSTALL REAR WHEEL

Click here

8. CHECK FOR SPEED SENSOR SIGNAL

Click here
