1. INSPECT FOG LIGHT ASSEMBLY LH
(a) Check that the fog light assembly LH.
| (1) Apply auxiliary battery voltage to the fog light assembly LH and check that the light illuminates.
OK: |
Tester Connection | Specified Condition | |
A43-1 (B) - Auxiliary battery positive (+) A43-2 (E) - Auxiliary battery negative (-) |
Fog light assembly LH comes on |
If the result is not as specified, replace the fog light assembly LH. |
 |
|
*a | Component without harness connected
(Fog Light Assembly LH) | | |
2. INSPECT FOG LIGHT ASSEMBLY RH
(a) Check that the fog light assembly RH.
| (1) Apply auxiliary battery voltage to the fog light assembly RH and check that the light illuminates.
OK: |
Tester Connection | Specified Condition | |
A42-1 (B) - Auxiliary battery positive (+) A42-2 (E) - Auxiliary battery negative (-) |
Fog light assembly RH comes on |
If the result is not as specified, replace the fog light assembly RH. |
 |
|

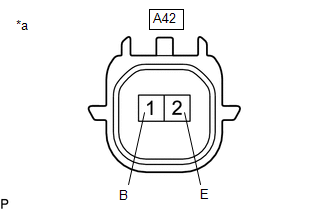

*a | Component without harness connected
(Fog Light Assembly RH) | | |
