Toyota Corolla Cross: Inspection

INSPECTION

PROCEDURE

1. INSPECT TRANSMISSION VALVE BODY ASSEMBLY

(a) Inspect Shift Solenoid Valve SLG:

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

20°C (68°F)

5.0 to 5.6 Ω

If the result is not as specified, replace the transmission valve body assembly.

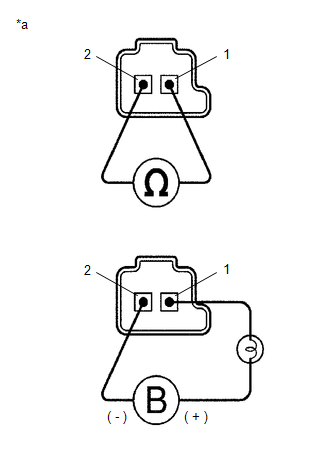

*a

Component without harness connected

(Shift Solenoid Valve SLG)

(2) Connect a positive (+) lead from the battery with a 21 W bulb to terminal 1 and a negative (-) lead to terminal 2 of the shift solenoid valve SL1 connector. Check that the valve moves and makes an operating sound.

NOTICE:

When using battery voltage during the inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.

OK:

The shift solenoid valve SLG moves and makes an operating sound.

If the result is not as specified, replace the transmission valve body assembly.

(b) Inspect Shift Solenoid Valve SL1:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.

(c) Inspect Shift Solenoid Valve SL2:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.

(d) Inspect Shift Solenoid Valve SLU:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.

(e) Inspect Shift Solenoid Valve SLP:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.

(f) Inspect Shift Solenoid Valve SLS:

HINT:

Refer to Inspect Shift Solenoid Valve SLG.
