Toyota Corolla Cross: Camshaft Position "B" - Timing Over-Advanced or System Performance Bank 1 (P001400,P001500)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fxs (engine Control) / Sfi System / Camshaft Position "B" - Timing Over-Advanced or System Performance Bank 1 (P001400,P001500)

DESCRIPTION

Refer to DTC P001313.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P001400

Camshaft Position "B" - Timing Over-Advanced or System Performance Bank 1

Exhaust valve timing is stuck at a certain value when in the advance range (2 trip detection logic).

  • Valve timing
  • Cam timing oil control solenoid assembly
  • Camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly)
  • Camshaft timing exhaust gear assembly
  • ECM

Comes on

  • SAE Code: P0014
  • DTC for Mexico Models: Applies

P001500

Camshaft Position "B" - Timing Over-Retarded Bank 1

Exhaust valve timing is stuck at a certain value when in the retard range (1 trip detection logic).

  • Valve timing
  • Cam timing oil control solenoid assembly
  • Camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly)
  • Camshaft timing exhaust gear assembly
  • ECM

Comes on

  • SAE Code: P0015
  • DTC for Mexico Models: Applies

MONITOR DESCRIPTION

The ECM optimizes the exhaust valve timing using the Variable Valve Timing (VVT) system to control the exhaust camshaft. The VVT system includes the ECM, cam timing oil control solenoid assembly, camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) and camshaft timing exhaust gear assembly. The ECM sends a target duty-cycle control signal to the cam timing oil control solenoid assembly. The camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) is operated to control the oil pressure supplied to the camshaft timing exhaust gear assembly based on this signal. The camshaft timing gear assembly can advance or retard the exhaust camshaft.

If the difference between the target and actual exhaust valve timing is large, and changes in the actual exhaust valve timing are small, the ECM interprets this as the camshaft timing exhaust gear assembly stuck malfunction and stores a DTC.

  • Example:
  • DTC P001400 is stored when the following conditions "A" and "B" are met:
    1. It takes 5 seconds or more to change the valve timing by 5°CA (Condition "A").
    2. After the above condition is met, the cam timing oil control solenoid assembly is forcibly activated for 60 seconds or more (Condition "B").
  • DTC P001500 is stored when the following conditions "C" and "D" are met:
    1. It takes 5 seconds or more to change the valve timing by 5°CA (Condition "C").
    2. After the above condition is met, the cam timing oil control solenoid assembly is forcibly activated for 9.5 seconds or more (Condition "D").

These DTCs indicate that the camshaft timing exhaust gear assembly cannot operate properly due to a camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) malfunction or the presence of foreign matter in the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly).

MONITOR STRATEGY

Related DTCs

P0014: Advanced camshaft timing (for exhaust camshaft)

P0015: Retarded camshaft timing (for exhaust camshaft)

Required Sensors/Components (Main)

Cam timing oil control solenoid assembly

Camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly)

Camshaft timing exhaust gear assembly

Required Sensors/Components (Related)

Crankshaft position sensor

Camshaft position sensor

Engine coolant temperature sensor

Frequency of Operation

Continuous

Duration

Within 10 seconds

MIL Operation

Advanced camshaft timing: 2 driving cycles

Retarded camshaft timing: Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

P0013 (Exhaust VVT oil control solenoid)

P0017 (Exhaust VVT system - misalignment)

P0101, P0102, P0103 (Mass air flow meter)

P0107, P0108 (Manifold absolute pressure)

P0117, P0118 (Engine coolant temperature sensor)

P0125 (Insufficient coolant temperature for closed loop fuel control)

P0335, P0337, P0338 (Crankshaft position sensor)

P0340, P0342, P0343 (Camshaft position sensor)

P0365, P0367, P0368 (Exhaust camshaft position sensor)

Auxiliary battery voltage

11 V or higher

Engine speed

500 to 4000 rpm

Engine coolant temperature

75 to 100°C (167 to 212°F)

TYPICAL MALFUNCTION THRESHOLDS

P0014: Advanced Camshaft Timing

Both of the following conditions are met

-

Deviation of actual valve timing and target valve timing

More than 5°CA (Crankshaft Angle) for 5 seconds or more after the VVT hold duty ratio learned value reaches the upper or lower limit

Valve timing

No change at advanced valve timing

P0015: Retarded Camshaft Timing

Both of the following conditions are met

-

Deviation of actual valve timing and target valve timing

More than 5°CA (Crankshaft Angle) for 5 seconds or more after the VVT hold duty ratio learned value reaches the upper or lower limit

Valve timing

No change at retarded valve timing

If the difference between the target and actual camshaft timing is greater than the specified value, the ECM operates the VVT actuator for 10 seconds by applying and releasing oil pressure. Then, the ECM monitors the camshaft timing change for 10 seconds.

MONITOR RESULT

Refer to detailed information in Checking Monitor Status.

Click here

P0014, P0015: Exhaust Gas Recirculation/VVT / EX VVT STUCK B1

Monitor ID

Test ID

Scaling

Unit

Description

$35

$85

Multiply by 0.01

Second

Forced movement of cam timing control actuator time

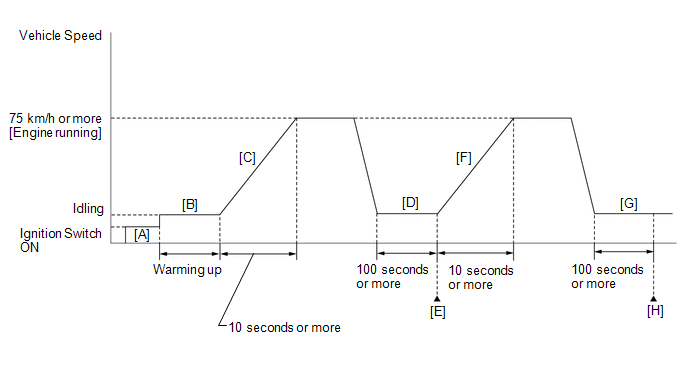

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

    HINT:

    • P001400 is output:

      Clear the DTC not using the GTS.

    • P001500 is output:

      Clear the DTC using the GTS.

  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON [A].
  7. Turn the GTS on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
  10. With the engine running, accelerate the vehicle to 75 km/h (46 mph) or more by depressing the accelerator pedal for 10 seconds or more [C].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    If the engine stops, further depress the accelerator pedal to restart the engine.

  11. Idle the engine for 100 seconds or more [D].

    HINT:

    • P001400 is output:

      With the shift lever in P.

    • P001500 is output:

      With the shift lever in D.

  12. Enter the following menus: Powertrain / Engine / Trouble Codes [E].
  13. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  15. Input the DTC: P001400 or P001500.
  16. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [F] through [H].
    • [A] to [E]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
  17. With the engine running, accelerate the vehicle to 75 km/h (46 mph) or more by depressing the accelerator pedal for 10 seconds or more [F].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    If the engine stops, further depress the accelerator pedal to restart the engine.

  18. Idle the engine for 100 seconds or more [G].

    HINT:

    • P001400 is output:

      With the shift lever in P.

    • P001500 is output:

      With the shift lever in D.

  19. Enter the following menus: Powertrain / Engine / Trouble Codes [H].
  20. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  21. Check the DTC judgment result again.

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • [A] to [H]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the freeze frame data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

  • DTC P001400 or P001500 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. This foreign matter may then be captured by the oil filter.
  • Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P001400 OR P001500)

(a) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P001400 or P001500 is output

A

DTC P001400 or P001500 and other DTCs are output

B

HINT:

If any DTCs other than P001400 or P001500 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.

PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO BANK 1)

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(b) Start the engine.

(c) Enter the following menus.

Powertrain > Engine > Active Test

Tester Display

Control the Exhaust VVT OCV Duty Ratio Bank 1

(d) Check the engine speed while operating the cam timing oil control solenoid assembly using the GTS.

OK:

GTS Operation

Engine Condition

0%

Normal engine speed

100%

Engine idles roughly or stalls

HINT:

  • Refer to "Data List / Active Test" [Exhaust VVT Hold Learn Value Bank 1, Exhaust VVT Change Angle Bank 1, Exhaust VVT OCV Control Duty Ratio Bank 1 and Exhaust VVT Target Angle Bank 1].

    Click here

  • Test not possible with the shift lever in P during charge control. Move the shift lever to N to perform test.
  • If the DTCs are stored after the Active Test, clear the DTCs.
NG

GO TO STEP 5

OK

3.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

HINT:

  • P001400 is output:

    Clear the DTC not using the GTS.

  • P001500 is output:

    Clear the DTC using the GTS.

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

4.

CHECK WHETHER DTC OUTPUT RECURS (DTC P001400 OR P001500)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P001400 or P001500 is output

B

HINT:

DTC P001400 or P001500 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.

A

CHECK FOR INTERMITTENT PROBLEMS

B

5.

INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Click here

NG

GO TO STEP 8

OK

6.

INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

Click here

NG

GO TO STEP 10

OK

7.

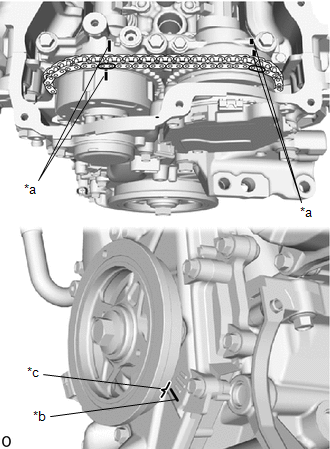

CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)

*a

Timing Mark

*b

TDC Timing Mark

*c

Groove

(a) Remove the cylinder head cover sub-assembly.

Click here

(b) Turn the crankshaft pulley and align its groove with the TDC timing mark of the timing chain cover.

(c) Check that the timing marks of the camshaft timing gear assembly and camshaft timing exhaust gear assembly are at the positions shown in the illustration.

HINT:

If the timing marks are not as shown, turn the crankshaft one revolution clockwise.

OK:

Timing marks on camshaft timing gear assembly and camshaft timing exhaust gear assembly are at the positions shown in the illustration.

HINT:

If the result is not as specified, check for mechanical malfunctions that may have affected the valve timing, such as a jumped tooth or stretching of the timing chain.

OK

GO TO STEP 12

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

8.

REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Click here

NEXT

9.

INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

Click here

OK

GO TO STEP 11

NG

10.

REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

Click here

NEXT

11.

PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO BANK 1)

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(b) Start the engine.

Powertrain > Engine > Active Test

Tester Display

Control the Exhaust VVT OCV Duty Ratio Bank 1

(c) Check the engine speed while operating the cam timing oil control solenoid assembly using the GTS.

OK:

GTS Operation

Engine Condition

0%

Normal engine speed

100%

Engine idles roughly or stalls

HINT:

  • Refer to "Data List / Active Test" [Exhaust VVT Hold Learn Value Bank 1, Exhaust VVT Change Angle Bank 1, Exhaust VVT OCV Control Duty Ratio Bank 1 and Exhaust VVT Target Angle Bank 1].

    Click here

  • Test not possible with the shift lever in P during charge control. Move the shift lever to N to perform test.
  • If the DTCs are stored after the Active Test, clear the DTCs.
OK

END

NG

12.

REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

Click here

HINT:

Perform "Inspection After Repair" after replacing the camshaft timing exhaust gear assembly.

Click here

NEXT

13.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

HINT:

  • P001400 is output:

    Clear the DTC not using the GTS.

  • P001500 is output:

    Clear the DTC using the GTS.

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

14.

CHECK WHETHER DTC OUTPUT RECURS (DTC P001400 OR P001500)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P001400 or P001500 is output

B

A

END

B

REPLACE ECM

    READ NEXT:

     Crankshaft Position - Camshaft Position Correlation Bank 1 Sensor A (P001600)

    DESCRIPTION Refer to DTC P001001. Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note P001600 Crankshaft Position - Camshaft Position Co

     Crankshaft Position - Camshaft Position Correlation Bank 1 Sensor B (P001700)

    DESCRIPTION Refer to DTC P001313. Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note P001700 Crankshaft Position - Camshaft Position Co

     HO2S Heater Control Bank 1 Sensor 1 Circuit Short to Battery (P003012,P003013,P101A9E)

    DESCRIPTION The air fuel ratio sensor (sensor 1) generates current that corresponds to the actual air fuel ratio. This sensor current is used to provide the ECM with feedback so that it can control th

    SEE MORE:

     Relay

    On-vehicle InspectionON-VEHICLE INSPECTION PROCEDURE 1. INSPECT IGCT RELAY (IGCT) (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Condition 3 - 5 Auxiliary battery voltage

     Front Blower Motor

    RemovalREMOVAL CAUTION / NOTICE / HINT COMPONENTS (REMOVAL) Procedure Part Name Code 1 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY 55607 - - - 2 BLOWER MOTOR WITH FAN SUB-ASSEMBLY 87103B - - - PROCEDURE 1. REMO

    © 2020-2024 Copyright www.tcorollacross.com
