Toyota Corolla Cross: Crankshaft Position - Camshaft Position Correlation Bank 1 Sensor B (P001700)

DESCRIPTION

Refer to DTC P001313.

Click here

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	Note
P001700	Crankshaft Position - Camshaft Position Correlation Bank 1 Sensor B	Deviation in the crankshaft position sensor signal and camshaft position sensor (for exhaust camshaft) signal (2 trip detection logic).	Valve timing Cam timing oil control solenoid assembly Camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) Camshaft timing exhaust gear assembly ECM	Comes on	SAE Code: P0017 DTC for Mexico Models: Applies

MONITOR DESCRIPTION

To monitor the correlation of the exhaust camshaft position and crankshaft position, the ECM checks the VVT learned value while the engine is idling. The VVT learned value is calibrated based on the camshaft position and crankshaft position. The exhaust valve timing is set to the most advanced angle while the engine is idling. If the VVT learned value is out of the specified range in consecutive driving cycles, the ECM stores this DTC.

MONITOR STRATEGY

Related DTCs	P0017: Camshaft timing misalignment at idling (for exhaust camshaft)
Required Sensors/Components (Main)	Camshaft timing exhaust gear assembly
Required Sensors/Components (Related)	Camshaft position sensor Crankshaft position sensor
Frequency of Operation	Continuous
Duration	Within 1 minute
MIL Operation	2 driving cycles
Sequence of Operation	None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored	None
Engine speed	500 to 1800 rpm

TYPICAL MALFUNCTION THRESHOLDS

Either of the following conditions is met	A or B
A. VVT learned value at maximum advanced valve timing	Less than 82.7°CA (Crankshaft Angle)
B. VVT learned value at maximum advanced valve timing	More than 105°CA (Crankshaft Angle)

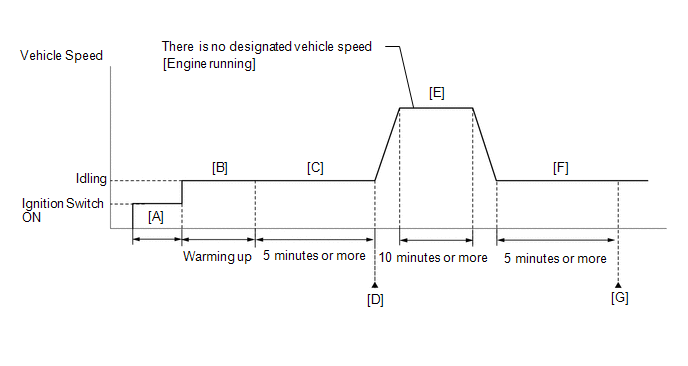

CONFIRMATION DRIVING PATTERN

HINT:

• After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

  Click here

• When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

  Click here

1. Connect the GTS to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the GTS on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
5. Turn the ignition switch off and wait for at least 30 seconds.
6. Turn the ignition switch to ON [A].
7. Turn the GTS on.
8. Put the engine in Inspection Mode (Maintenance Mode).

   Click here

9. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
10. Idle the engine for 5 minutes or more [C].
11. Enter the following menus: Powertrain / Engine / Trouble Codes [D].
12. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
14. Input the DTC: P001700.
15. Check the DTC judgment result.

    GTS Display	Description
    NORMAL	DTC judgment completed System normal
    ABNORMAL	DTC judgment completed System abnormal
    INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [E] through [G].
    • [A] to [D]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
16. With the engine running, drive the vehicle for 10 minutes or more [E].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    If the engine stops, further depress the accelerator pedal to restart the engine.

17. Idle the engine for 5 minutes or more [F].
18. Enter the following menus: Powertrain / Engine / Trouble Codes [G].
19. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
20. Check the DTC judgment result.

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • [A] to [G]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

CAUTION / NOTICE / HINT

NOTICE:

• Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the freeze frame data and Vehicle Control History can be useful for troubleshooting.

  Click here

  (Select Powertrain in Health Check and then check the time stamp data.)

• If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

  Click here

HINT:

• The monitor for this DTC detects when the timing chain is shifted by two teeth or more.
• Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.	CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P001700)

(a) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTC P001700 is output	A
DTC P001700 and other DTCs are output	B

HINT:

If any DTCs other than P001700 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.	PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO BANK 1)

HINT:

If the VVT system can be operated through the Active Test, it can be assumed that the VVT system is operating normally.

(a) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(b) Start the engine.

(c) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display
Control the Exhaust VVT OCV Duty Ratio Bank 1

Data List Display
Exhaust VVT Change Angle Bank 1

(d) Perform the Active Test. Check that the displacement angle varies.

OK:

Displacement angle varies.

HINT:

• Test not possible with the shift lever in P during charge control. Move the shift lever to N to perform test.
• If the DTCs are stored after the Active Test, clear the DTCs.

NG

GO TO STEP 4

OK

3.	CHECK ENGINE MECHANICAL SYSTEM

(a) Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.

HINT:

Perform "Inspection After Repair" after repairing or replacing the engine mechanical system.

Click here

OK

GO TO STEP 7

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

4.	INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Click here

NG

REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

OK

5.	INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

Click here

NG

REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

OK

6.	INSPECT CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

Click here

HINT:

Perform "Inspection After Repair" after replacing the camshaft timing exhaust gear assembly.

Click here

NG

REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

OK

7.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

8.	CHECK WHETHER DTC OUTPUT RECURS (DTC P001700)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the pending DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTCs are not output	A
DTC P001700 is output	B

A

CHECK FOR INTERMITTENT PROBLEMS

B

REPLACE ECM
