Toyota Corolla Cross: Terminals Of Ecu

TERMINALS OF ECU

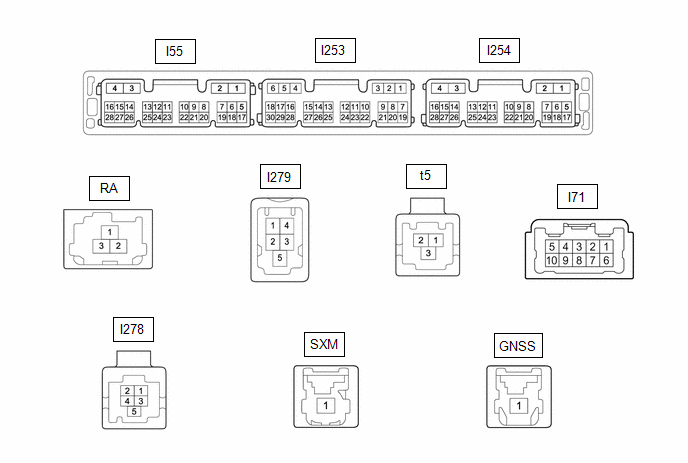

RADIO AND DISPLAY RECEIVER ASSEMBLY

Standard:

Connector I55

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

*1: for 9 Speakers

*2: w/ Parking Assist Monitor System

*3: w/ Panoramic View Monitor System

I55-1 (GND1) - Body ground

Ground

Always

Below 1 Ω

I55-2 (GND2) - Body ground

Ground

Always

Below 1 Ω

I55-3 (+B) - I55-1 (GND1)

Stereo jack adapter assembly power source

Ignition switch off

11 to 14 V

I55-4 (+B1) - I55-1 (GND1)

Power source (+B)

Ignition switch off

11 to 14 V

I55-5 (REV) - I55-1 (GND1)

Reverse Signal

Ignition switch ON, shiftposition not in R → shiftposition in R

2 V or less → 11 to 14 V

I55-7 (PKB) - I55-1 (GND1)

Parking brake signal

Ignition switch ON Parking brake released → Ignition switch ON Parking brake applied

4 V or higher

I55-8 (SPD) - I55-1 (GND1)

Vehicle speed signal

Wheel being rotated

Waveform 1

I55-12 (MUT1) - I55-1 (GND1)*1

Mute signal

Audio system playing → Mute

3.5 V or higher → Below 1 V

I55-15 (IG) - I55-1 (GND1)

Power source (IG)

Ignition switch ON

11 to 14 V

I55-16 (ACC1) - I55-1 (GND1)

Power source (ACC)

Ignition switch ACC

11 to 14 V

I55-17 (REVD) - I55-1 (GND1)*2

Camera image transition signal

Normal → camera image screen change

2 V or less → 6 V or higher

I55-18 (CSWA) - I55-1 (GND1)*3

Camera image transition signal

Normal → camera image screen change

2 V or less → 6 V or higher

I55-20 (SWG) - I55-1 (GND1)

Ground

Always

Below 1 Ω

I55-21 (SW1) - I55-1 (GND1)

Steering pad switch signal

No switch pushed → Volume- switch pushed → Volume+ switch pushed → Seek- switch pushed → Seek+ switch pushed

2.7 V or higher → approximately 2.3 V → approximately 1.6 V → approximately 1.0 V → 0.8 V or less

I55-22 (SW2) - I55-1 (GND1)

Steering pad switch signal

No switch pushed → Voice switch pushed → Off hook switch pushed → On hook switch pushed → MODE switch pushed

2.7 V or higher → approximately 2.3 V → approximately 1.6 V → approximately 1.0 V → 0.8 V or less

I55-24 (ILL-) - I55-1 (GND1)

Illumination signal ground

Dimmed

Pulse generation

I55-25 (ILL+) - I55-1 (GND1)

Illumination signal

Light control switch not in tail or head position

11 to 14 V

I55-26 (WK2) - I55-1 (GND1)*1

Stereo component amplifier assembly startup signal

Ignition switch ACC

4 V or higher

I55-28 (ACCO) - I55-1 (GND1)

Multimedia ACC control signal

Power switch is pressed when playback is starting

8.0 to 13.5 V

Connector I253

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

*1: for 9 Speakers

*2: w/ Rear View Monitor System

I253-1 (TX1+)*1

AVC-LAN communication signal

-

-

I253-2 (TX1-)*1

AVC-LAN communication signal

-

-

I253-4 (SGND) - I55-1 (GND1)

Shield ground

Always

Below 1 Ω

I253-5 (TMUT) - I55-1 (GND1)

Mute signal

Normal → Emergency call mode

2.0 V or higher → Below 1 V

I253-6 (ADPG) - I55-1 (GND1)

Stereo jack adapter assembly detection signal

Stereo jack adapter assembly disconnected → Stereo jack adapter assembly connected

3.3 V or higher→ Below 2.15 V

I253-11 (CNH1)

Local bus communication signal

Service Menu

-

I253-12 (CNL1)

Local bus communication signal

Service Menu

-

I253-13 (CANH)

CAN communication signal

Service Menu

-

I253-14 (CANL)

CAN communication signal

Service Menu

-

I253-15 (VOR+) - I55-1 (GND1)

Sound signal

Answering incoming operator call

A waveform synchronized with sound signals is output

I253-16 (VOR-) - I55-1 (GND1)

Sound signal

Answering incoming operator call

A waveform synchronized with sound signals is output

I253-17 (USBG) - Body ground

Ground

Always

Below 1 Ω

I253-18 (USBV) - I55-1 (GND1)

Telematics transceiver USB power source

Ignition switch ON

3 V or higher

I253-21 (MIN+) - I55-1 (GND1)

Microphone voice signal

Voice is being input

A waveform synchronized with sound signals is output

I253-22 (MIN-) - I55-1 (GND1)

Microphone voice signal ground

Always

Below 1 Ω

I253-23 (MACC) - I55-1 (GND1)

Microphone power source or A2B hub power source

Ignition switch ON

7.5 to 8.5 V

I253-24 (SGND) - Body ground

Shield ground

Always

Below 1 Ω

I253-25 (SNS) - I55-1 (GND1)

Microphone circuit open detection signal

Always

Below 1 Ω

I253-26 (CSLD)*2

Shield ground

Always

Below 1 Ω

I253-27 (CGND)*2

Camera ground

Always

Below 1 Ω

I253-28 (V+)*2

Video signal

-

-

I253-29 (V-)*2

Video signal

-

-

I253-30 (CA+)*2

Camera power source

Ignition switch ON

7.5 to 9.0 V

Connector I254

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

*1: for 9 Speakers

I254-4 (FBGN) - I55-1 (GND1)*1

Shield ground

Always

Below 1 Ω

I254-15 (FB2+) - I55-1 (GND1)*1

Stereo component amplifier assembly voice signal 2

Voice is being input

A waveform synchronized with sound signals is output

I254-16 (FB2-) - I55-1 (GND1)*1

Stereo component amplifier assembly voice signal 2

Voice is being input

A waveform synchronized with sound signals is output

I254-17 (MI2+) - I55-1 (GND1)

Microphone 2 voice signal

Voice is being input

A waveform synchronized with sound signals is output

I254-18 (MI2-) - I55-1 (GND1)

Microphone 2 voice signal ground

Always

Below 1 Ω

I254-19 (SGD2) - I55-1 (GND1)

Ground

Always

Below 1 Ω

I254-20 (MAC2) - I55-1 (GND1)

Microphone 2 power source

Ignition switch ON

7.5 to 8.5 V

I254-21 (SNS2) - I55-1 (GND1)

Microphone 2 open circuit detection signal

Always

Below 1 Ω

I254-27 (FB1+) - I55-1 (GND1)*1

Stereo component amplifier assembly voice signal 1

Voice is being input

A waveform synchronized with sound signals is output

I254-28 (FB1-) - I55-1 (GND1)*1

Stereo component amplifier assembly voice signal 1

Voice is being input

A waveform synchronized with sound signals is output

Connector t5

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

t5-1 (USB+)

USB signal

-

-

t5-2 (USB-)

USB signal

-

-

t5-3 (USBS)

Shield ground

Always

Below 1 Ω

Connector I71

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

*1: for 6 Speakers

*2: for 9 Speakers

I71-1 (FR+) - I55-1 (GND)

Sound signal

Audio system playing

A waveform synchronized with sound signals is output

I71-2 (FL+) - I55-1 (GND)

Sound signal

Audio system playing

A waveform synchronized with sound signals is output

I71-3 (RL+) - I55-1 (GND)

Sound signal*1

Interrupt sound signal*2

Audio system playing*1

Interrupt sound signal being output*2

A waveform synchronized with sound signals is output

I71-4 (RR+) - I55-1 (GND)

Sound signal*1

Interrupt sound signal*2

Audio system playing*1

Interrupt sound signal being output*2

A waveform synchronized with sound signals is output

I71-6 (FR-) - I55-1 (GND)

Sound signal

Audio system playing

A waveform synchronized with sound signals is output

I71-7 (FL-) - I55-1 (GND)

Sound signal

Audio system playing

A waveform synchronized with sound signals is output

I71-8 (RL-) - I55-1 (GND)

Sound signal*1

Interrupt sound signal*2

Audio system playing*1

Interrupt sound signal being output*2

A waveform synchronized with sound signals is output

I71-9 (RR-) - I55-1 (GND)

Sound signal*1

Interrupt sound signal*2

Audio system playing*1

Interrupt sound signal being output*2

A waveform synchronized with sound signals is output

Connector I279

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

I279-1 (USV1)

Power source

Ignition switch ON

4.75 to 5.25 V

I279-2 (US1-)

USB communication signal

-

-

I279-3 (US1+)

USB communication signal

-

-

I279-4 (UGD1)

Ground

Always

Below 1 Ω

I279-5 (USG1)

Shield ground

Always

Below 1 Ω

Connector RA

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

RA-1 (ANT+)

Radio antenna power source

Receiving radio broadcast

7 to 16 V

RA-2 (SUB)

Radio signal (SUB)

-

-

RA-2a (GND)

Ground

-

-

RA-3 (MAIN)

Radio signal (MAIN)

-

-

RA-3a (GND)

Ground

-

-

Connector SXM (w/ SXM Function)

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

SXM-1 (XM)

SXM Radio Signal

-

-

Connector GNSS

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

GNSS-1 (GPS)

GNSS signal

-

-

Connector I278 (w/ Parking Assist Monitor System)

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

I278-1 (CGND)

Camera ground

Always

Below 1 Ω

I278-2 (CB+)

Camera power source

Ignition switch ON

7.5 to 9.0 V

I278-3 (CV+)

Video signal

-

-

I278-4 (CV-)

Video signal

-

-

I278-5 (SGND)

Shield ground

Always

Below 1 Ω

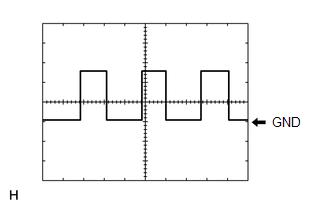

(a) Waveform 1

Item

Content

Measurement terminal

I55-8 (SPD) - I55-1 (GND1)

Measurement setting

5 V/DIV, 20 ms/DIV

Condition

Wheel being rotated

HINT:

The period changes depending on the rotation speed of the wheels.

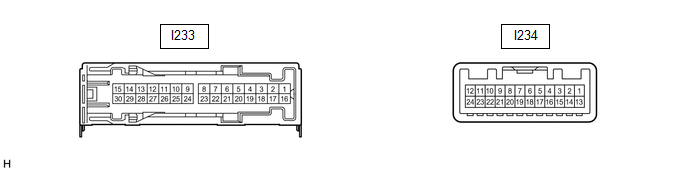

STEREO COMPONENT AMPLIFIER ASSEMBLY (for 9 Speakers)

Standard:

Connector I233

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

I233-1 (+B) - I233-3 (GND)

Power source (+B)

Ignition switch off

11 to 14 V

I233-3 (GND) - Body ground

Ground

Always

Below 1 Ω

I233-9 (RL+) - I233-3 (GND)

Rear sound signal (LH)

Audio system playing

A waveform synchronized with sound signals is output

I233-10 (WF1+) - I233-3 (GND)

Sound signal (woofer)

Audio system playing

A waveform synchronized with sound signals is output

I233-11 (RR+) - I233-3 (GND)

Rear sound signal (RH)

Audio system playing

A waveform synchronized with sound signals is output

I233-12 (TWL+) - I233-3 (GND)

Front sound signal (LH)

Audio system playing

A waveform synchronized with sound signals is output

I233-13 (FL+) - I233-3 (GND)

Front sound signal (LH)

Audio system playing

A waveform synchronized with sound signals is output

I233-14 (TWR+) - I233-3 (GND)

Front sound signal (RH)

Audio system playing

A waveform synchronized with sound signals is output

I233-15 (FR+) - I233-3 (GND)

Front sound signal (RH)

Audio system playing

A waveform synchronized with sound signals is output

I233-16 (+B2) - I233-3 (GND)

Power source (+B)

Ignition switch off

11 to 14 V

I233-18 (GND2) - Body ground

Ground

Always

Below 1 Ω

I233-24 (RL-) - I233-3 (GND)

Rear sound signal (LH)

Audio system playing

A waveform synchronized with sound signals is output

I233-25 (WF1-) - I233-3 (GND)

Sound signal (Woofer)

Audio system playing

A waveform synchronized with sound signals is output

I233-26 (RR-) - I233-3 (GND)

Rear sound signal (RH)

Audio system playing

A waveform synchronized with sound signals is output

I233-27 (TWL-) - I233-3 (GND)

Front sound signal (LH)

Audio system playing

A waveform synchronized with sound signals is output

I233-28 (FL-) - I233-3 (GND)

Front sound signal (LH)

Audio system playing

A waveform synchronized with sound signals is output

I233-29 (TWR-) - I233-3 (GND)

Front sound signal (RH)

Audio system playing

A waveform synchronized with sound signals is output

I233-30 (FR-) - I233-3 (GND)

Front sound signal (RH)

Audio system playing

A waveform synchronized with sound signals is output

Connector I234

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

I234-1 (MUTE) - I233-3 (GND)

Mute signal

Normal → Mute

3.5 V or higher → Below 1 V

I234-2 (L-) - I233-3 (GND)

Input voice signal (LH)

Voice is being input

A waveform synchronized with sound signals is output

I234-3 (L+) - I233-3 (GND)

Input voice signal (LH)

Voice is being input

A waveform synchronized with sound signals is output

I234-4 (R-) - I233-3 (GND)

Input voice signal (RH)

Voice is being input

A waveform synchronized with sound signals is output

I234-5 (R+) - I233-3 (GND)

Input voice signal (RH)

Voice is being input

A waveform synchronized with sound signals is output

I234-6 (SLD) - Body ground

Shield ground

Always

Below 1 Ω

I234-7 (TX-)

AVC-LAN communication signal

Service Menu

-

I234-8 (TX+)

AVC-LAN communication signal

Service Menu

-

I234-9 (FB1-) - I233-3 (GND)

Sound signal

Audio system playing

A waveform synchronized with sound signals is output

I234-10 (FB1+) - I233-3 (GND)

Sound signal

Audio system playing

A waveform synchronized with sound signals is output

I234-11 (SPD) - I233-3 (GND)

Vehicle speed signal

Wheel being rotated

Waveform 1

I234-13 (SLD1) - Body ground

Ground

Always

Below 1 Ω

I234-14 (II1-) - I233-3 (GND)

Input voice signal (LH)

Interrupt voice is being input

A waveform synchronized with sound signals is output

I234-15 (II1+) - I233-3 (GND)

Input voice signal (LH)

Interrupt voice is being input

A waveform synchronized with sound signals is output

I234-16 (II2-) - I233-3 (GND)

Input voice signal (RH)

Interrupt voice is being input

A waveform synchronized with sound signals is output

I234-17 (II2+) - I233-3 (GND)

Input voice signal (RH)

Interrupt voice is being input

A waveform synchronized with sound signals is output

I234-18 (SLD2) - Body ground

Sound signal

Always

Below 1 Ω

I234-21 (FB2-) - I233-3 (GND)

Sound signal

Audio system playing

A waveform synchronized with sound signals is output

I234-22 (FB2+) - I233-3 (GND)

Sound signal

Audio system playing

A waveform synchronized with sound signals is output

I234-24 (TMUT) - Body ground

Mute signal

Normal → Mute

3.5 V or higher → Below 1 V

(a) Waveform 1

Item

Content

Measurement terminal

I234-11 (SPD) - I233-3 (GND)

Measurement setting

5 V/DIV, 20 ms/DIV

Condition

Wheel being rotated

HINT:

The period changes depending on the rotation speed of the wheels.

COMBINATION METER ASSEMBLY

HINT:

Click here

TELEMATICS TRANSCEIVER

HINT:

Click here

    READ NEXT:

     Diagnosis System

    DIAGNOSIS SYSTEM CHECK FOR DTCs (USING SYSTEM CHECK MODE SCREEN) HINT: When system self-diagnosis DTCs cannot be output due to a malfunction that is preventing diagnosis mode from being star

     Freeze Frame Data

    FREEZE FRAME DATA CHECK FREEZE FRAME DATA (USING GTS) HINT: Whenever a DTC is stored, the ECU stores the current vehicle state as freeze frame data. (a) Select the DTC from "Trouble Codes&q

     Data List / Active Test

    DATA LIST / ACTIVE TEST DATA LIST (a) In accordance with the screen on the GTS, display the data list screen and check the data. Body Electrical > Navigation System > Data List

    SEE MORE:

     Precaution

    PRECAUTION INITIALIZATION NOTICE: Make sure to perform the necessary procedures (adjustment, calibration, initialization, or registration) after parts related to the cable has been disconnected from the negative (-) battery terminal. When parts related to the charging system have b

     Front Air Mix Damper Control Servo Motor Actuator Stuck Off (B14067F)

    DESCRIPTION The No. 1 air conditioning radiator damper servo sub-assembly sends pulse signals to inform the air conditioning amplifier assembly of the damper position. The air conditioning amplifier assembly activates the motor (normal or reverse) based on these signals to move the air outlet damper

    © 2020-2024 Copyright www.tcorollacross.com
