Toyota Corolla Cross: Rocker Panel Moulding

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Rocker Panel Moulding

Removal

REMOVAL

CAUTION / NOTICE / HINT

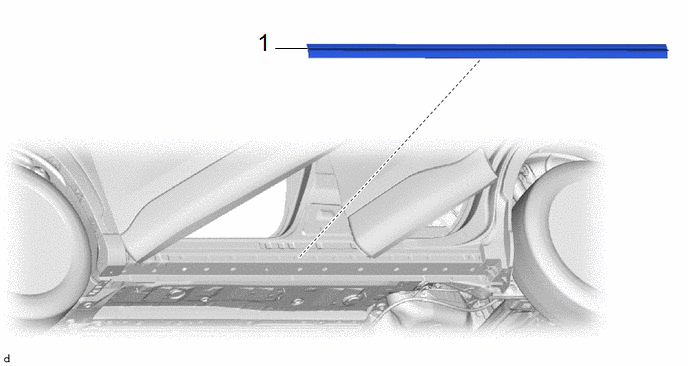

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 2 FRONT DOOR WEATHERSTRIP

67864F

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE NO. 2 FRONT DOOR WEATHERSTRIP

Installation

INSTALLATION

CAUTION / NOTICE / HINT

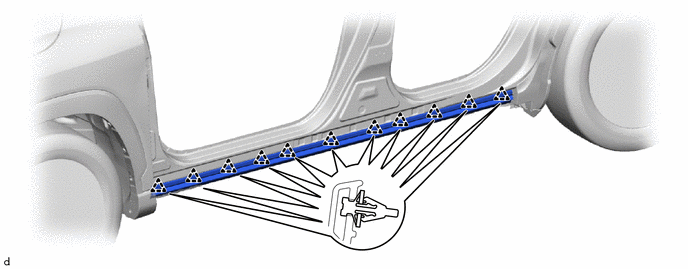

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 2 FRONT DOOR WEATHERSTRIP

67864F

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL NO. 2 FRONT DOOR WEATHERSTRIP
