Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Lighting (ext) / Headlight Dimmer Switch / Removal

REMOVAL

CAUTION / NOTICE / HINT

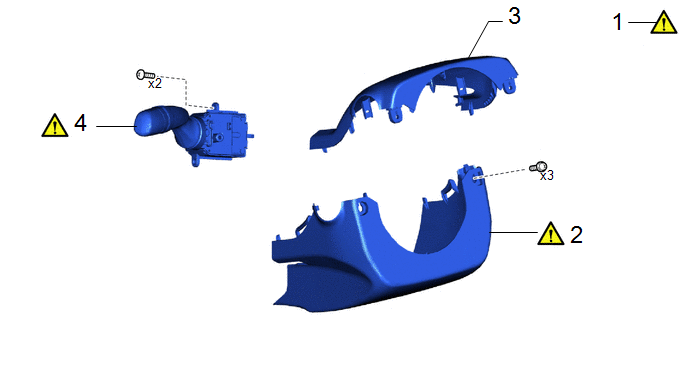

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

STEERING WHEEL POSITION

-

-

-

2

LOWER STEERING COLUMN COVER

45287

-

-

3

UPPER STEERING COLUMN COVER

45286B

-

-

-

4

TURN SIGNAL SWITCH

84329

-

-

PROCEDURE

1. ADJUST STEERING WHEEL POSITION

Click here

2. REMOVE LOWER STEERING COLUMN COVER

Click here

3. REMOVE UPPER STEERING COLUMN COVER

Click here

4. REMOVE TURN SIGNAL SWITCH

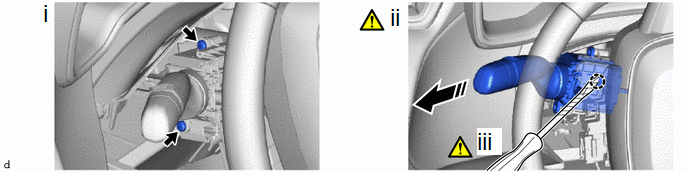

Remove in this Direction

-

-

(1) Remove the 2 screws.

(2) Turn the steering wheel assembly to the left.

(3) Using a screwdriver with its tip wrapped with protective tape, disengage the claw to remove the turn signal switch as shown in the illustration.

NOTICE:

If the claw is pulled with excessive force, it may break.
