Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

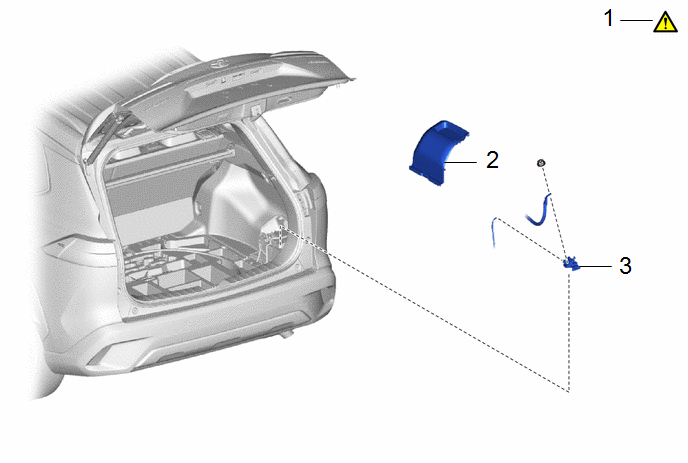

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	SIDE DECK TRIM SERVICE HOLE COVER	64735	-	-	-
3	BATTERY STATE SENSOR ASSEMBLY	28850C	-	-	-

CAUTION / NOTICE / HINT

NOTICE:

If both left and right front flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.

HINT:

• When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
    Front Camera System	Drive the vehicle straight ahead at 15 km/h(10 mph) or more for 1 second or more.

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
    Power door lock control system Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
    Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.
    Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

1. PRECAUTION

NOTICE: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Click here When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.

2. REMOVE SIDE DECK TRIM SERVICE HOLE COVER

Click here

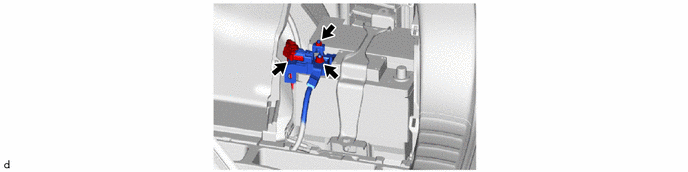

3. REMOVE BATTERY STATE SENSOR ASSEMBLY
