Toyota Corolla Cross (2022-2026) Service Manual / Power Source & Network / M20a-fxs (battery / Charging) / Battery Current Sensor / Installation

INSTALLATION

CAUTION / NOTICE / HINT

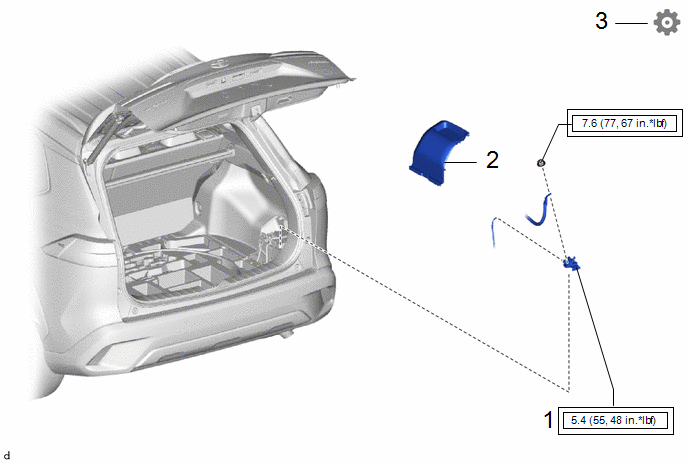

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BATTERY STATE SENSOR ASSEMBLY

28850C

-

-

-

2

SIDE DECK TRIM SERVICE HOLE COVER

64735

-

-

-

3

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

PROCEDURE

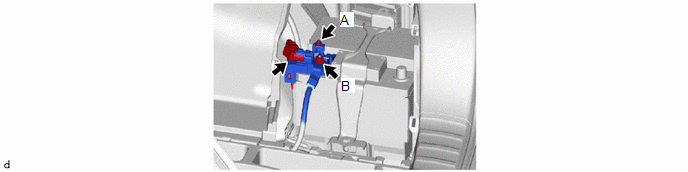

1. INSTALL BATTERY STATE SENSOR ASSEMBLY

Torque:

Nut (A) :

5.4 N·m {55 kgf·cm, 48 in·lbf}

Nut(B) :

7.6 N·m {77 kgf·cm, 67 in·lbf}

2. INSTALL SIDE DECK TRIM SERVICE HOLE COVER

3. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function thatcompletes learning when the respective system is used.

Click here
