Toyota Corolla Cross: Microphone

Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Audio / Video / Microphone

Removal

REMOVAL

CAUTION / NOTICE / HINT

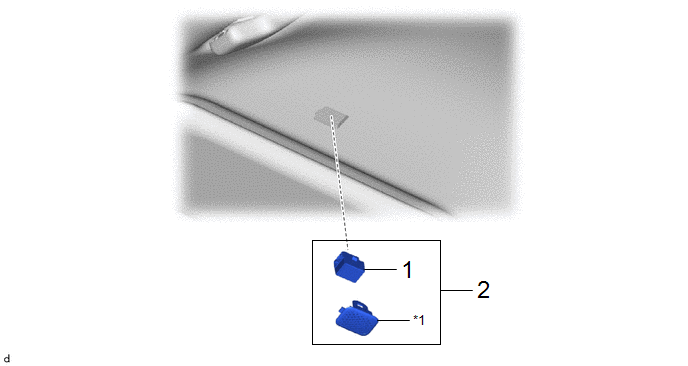

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

TELEPHONE MICROPHONE ASSEMBLY WITH MICROPHONE CASE

-

-

-

-

2

TELEPHONE MICROPHONE ASSEMBLY

-

-

-

-

*1

MICROPHONE CASE

-

-

PROCEDURE

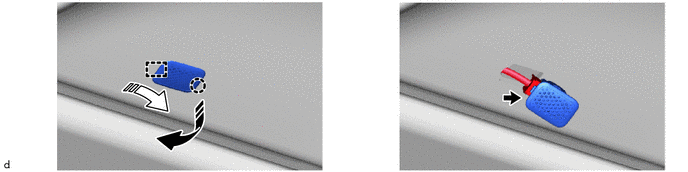

1. REMOVE TELEPHONE MICROPHONE ASSEMBLY WITH MICROPHONE CASE

Remove in this Direction (1)

Remove in this Direction (2)

(b) Use the same procedures for the opposite side.

2. REMOVE TELEPHONE MICROPHONE ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

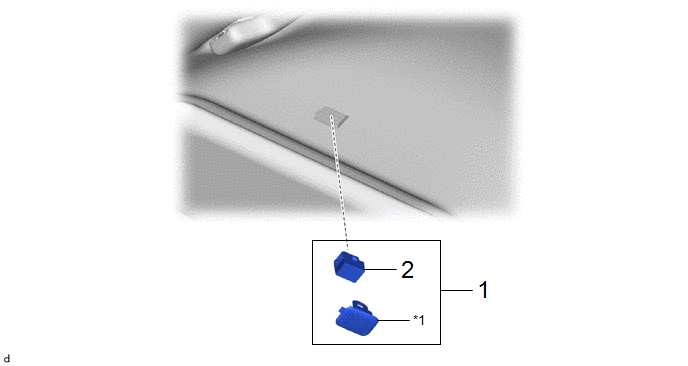

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TELEPHONE MICROPHONE ASSEMBLY

-

-

-

-

2

TELEPHONE MICROPHONE ASSEMBLY WITH MICROPHONE CASE

-

-

-

-

*1

MICROPHONE CASE

-

-

PROCEDURE

1. INSTALL TELEPHONE MICROPHONE ASSEMBLY

2. INSTALL TELEPHONE MICROPHONE ASSEMBLY WITH MICROPHONE CASE
