Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure

Part Name Code

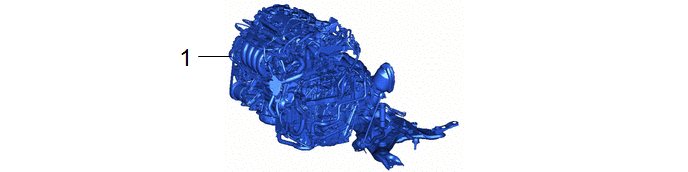

1

ENGINE ASSEMBLY WITH TRANSAXLE

-

-

-

-

Procedure

Part Name Code

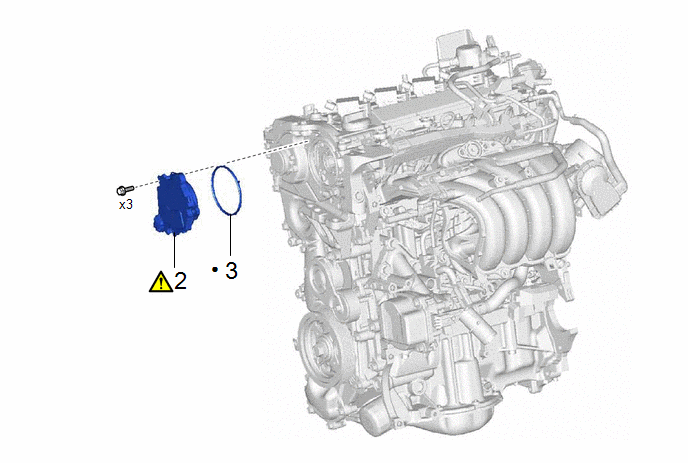

2

CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

13090D

-

-

3

CAM TIMING CONTROL MOTOR O-RING

13090E

-

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during cam timing control motor with EDU assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Replacement of cam timing control motor with EDU assembly

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

  • After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) battery terminal.
  • This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

    Click here

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven.

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front Camera System

    Drive the vehicle straight ahead at 15 km/h(10 mph) or more for 1 second or more.

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

Click here

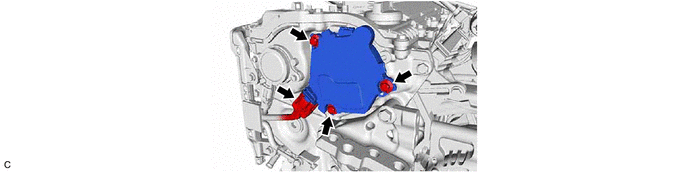

2. REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

NOTICE:

If the cam timing control motor with EDU assembly has been struck or dropped, replace it.

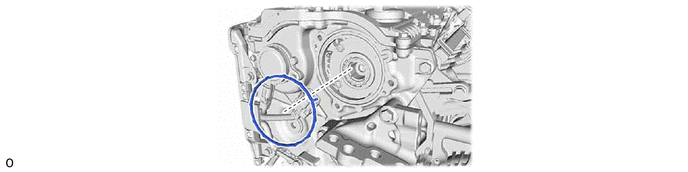

3. REMOVE CAM TIMING CONTROL MOTOR O-RING
