Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

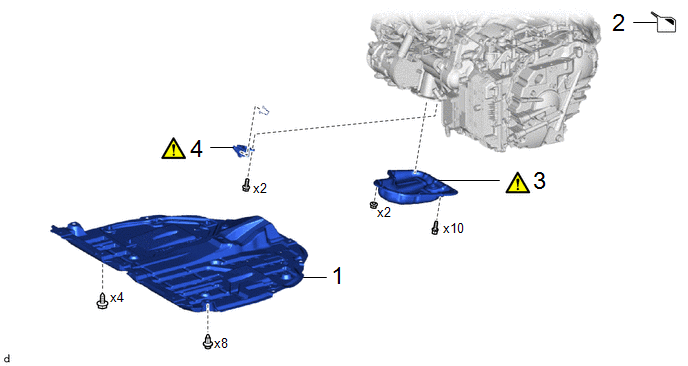

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

2

DRAIN ENGINE OIL

-

-

-

3

OIL PAN SUB-ASSEMBLY

12101

-

-

4

ENGINE OIL LEVEL SENSOR

89491

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

2. DRAIN ENGINE OIL

Click here

3. REMOVE OIL PAN SUB-ASSEMBLY

Click here

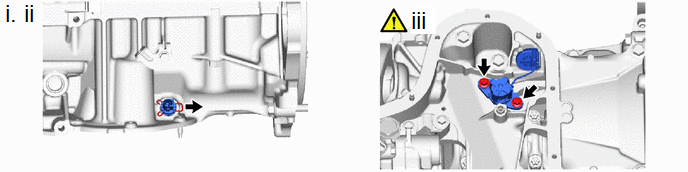

4. REMOVE ENGINE OIL LEVEL SENSOR

(1) Disconnect the engine oil level sensor connector.

(2) Remove the clip from the engine oil level sensor.

(3) Using an 8 mm socket wrench, remove the 2 bolts and engine oil level sensor from the stiffening crankcase assembly.
