Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

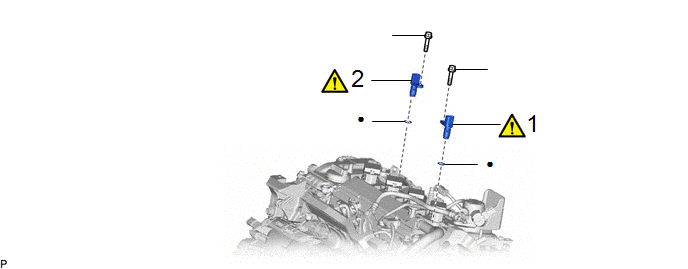

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CAMSHAFT POSITION SENSOR (for Intake Side)

11102A

-

-

2

CAMSHAFT POSITION SENSOR (for Exhaust Side)

11102A

-

-

Non-reusable part

Precoated part

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

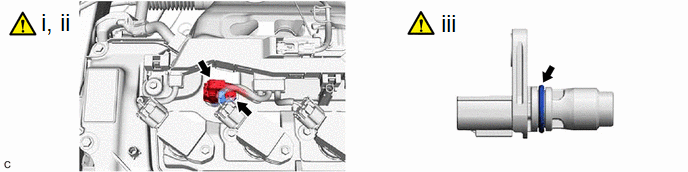

1. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

(1) Disconnect the camshaft position sensor connector.

(2) Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.

NOTICE:

If the camshaft position sensor has been struck or dropped, replace it.

(3) Perform this procedure only when reusing the

1. Remove the O-ring from the camshaft position sensor.

NOTICE:

  • Make sure to only remove the O-ring with bare hands.
  • When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
  • If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.

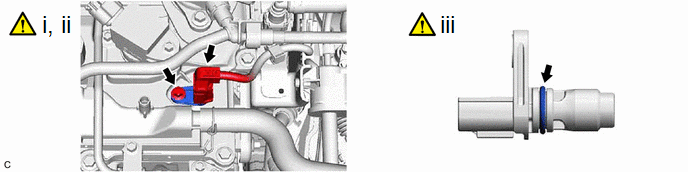

2. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

(1) Disconnect the camshaft position sensor connector.

(2) Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.

NOTICE:

If the camshaft position sensor has been struck or dropped, replace it.

(3) Perform this procedure only when reusing the

1. Remove the O-ring from the camshaft position sensor.

NOTICE:

  • Make sure to only remove the O-ring with bare hands.
  • When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
  • If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
