Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

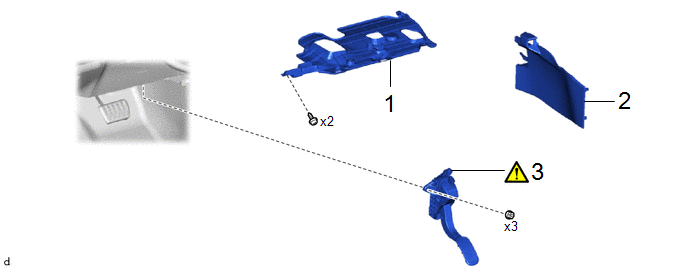

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55606

-

-

-

2

FRONT NO. 1 CONSOLE BOX INSERT

58816D

-

-

-

3

ACCELERATOR PEDAL SENSOR ASSEMBLY

78110K

-

-

PROCEDURE

1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

2. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

Click here

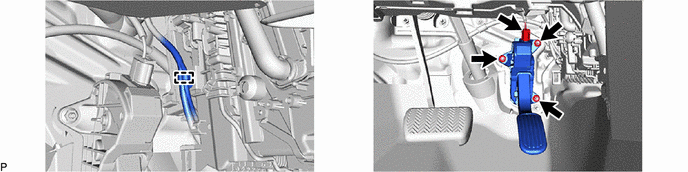

3. REMOVE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY

NOTICE:

  • If the accelerator pedal sensor assembly has been struck or dropped, replace it.
  • Avoid physical shock to the accelerator pedal sensor assembly.
  • Do not disassemble the accelerator pedal sensor assembly.
  • The accelerator pedal sensor assembly does not require lubrication.
  • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.
