Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

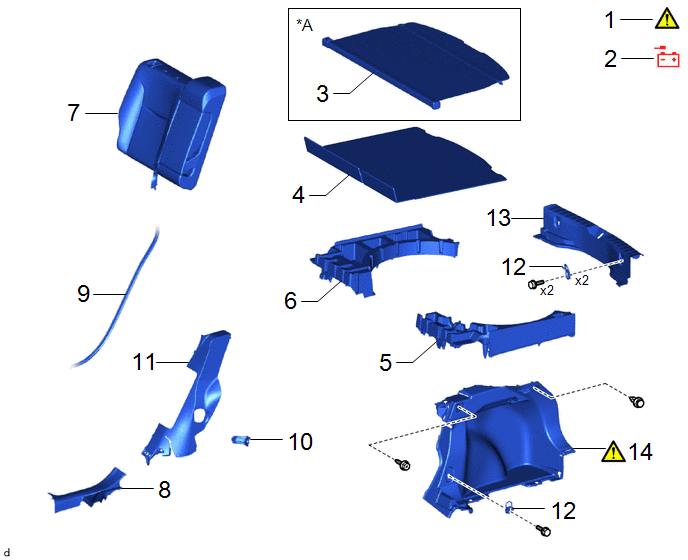

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

3

TONNEAU COVER ASSEMBLY

64910J

-

-

-

4

DECK BOARD ASSEMBLY

58410B

-

-

-

5

DECK FLOOR BOX LH

64997

-

-

-

6

DECK FLOOR BOX RH

64995

-

-

-

7

REAR SEATBACK ASSEMBLY RH

-

-

-

-

8

REAR DOOR SCUFF PLATE RH

67917A

-

-

-

9

REAR DOOR OPENING TRIM WEATHERSTRIP RH

62331A

-

-

-

10

REAR SEAT BACK HINGE SUB-ASSEMBLY RH

71303C

-

-

-

11

REAR SEAT SIDE GARNISH RH

62551F

-

-

-

12

LUGGAGE HOLD BELT STRIKER ASSEMBLY

58460D

-

-

-

13

REAR DECK TRIM COVER

64716D

-

-

-

14

DECK TRIM SIDE PANEL ASSEMBLY RH

64730B

-

-

*A

w/ Tonneau Cover

-

-

Procedure

Part Name Code

15

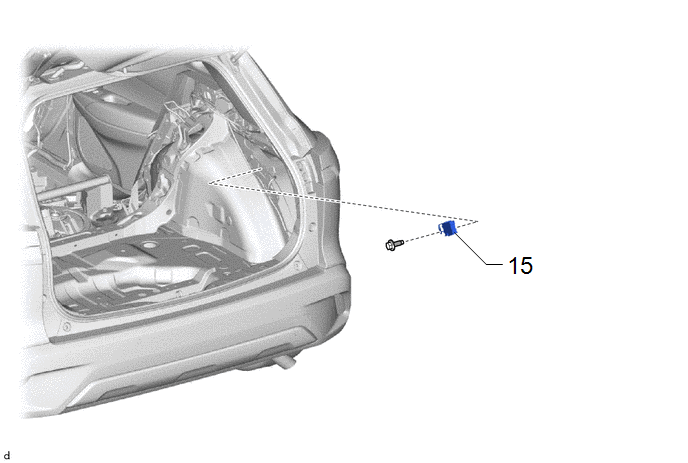

4WD ECU ASSEMBLY

89630A

-

-

-

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click here

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

3. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

Click here

4. REMOVE DECK BOARD ASSEMBLY

Click here

5. REMOVE DECK FLOOR BOX LH

Click here

6. REMOVE DECK FLOOR BOX RH

Click here

7. REMOVE REAR SEATBACK ASSEMBLY RH

Click here

8. REMOVE REAR DOOR SCUFF PLATE RH

(a) Use the same procedure as for the LH side.

Click here

9. SEPARATE REAR DOOR OPENING TRIM WEATHERSTRIP RH

(a) Use the same procedure as for the LH side.

Click here

10. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY RH

(a) Use the same procedure as for the LH side.

Click here

11. REMOVE REAR SEAT SIDE GARNISH RH

(a) Use the same procedure as for the LH side.

Click here

12. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

Click here

13. REMOVE REAR DECK TRIM COVER

Click here

14. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

  • Use the same procedure as for the LH side.

    Click here

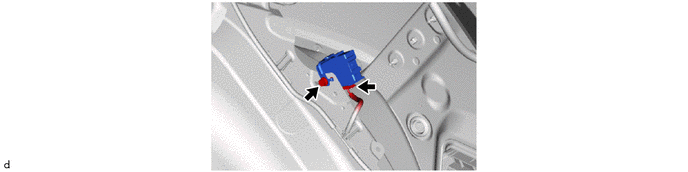

15. REMOVE 4WD ECU ASSEMBLY
