Toyota Corolla Cross (2022-2026) Service Manual / Brake / Parking Brake / Electric Parking Brake Switch / Removal

REMOVAL

CAUTION / NOTICE / HINT

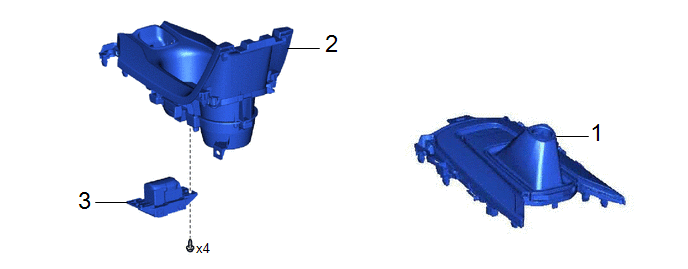

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

POSITION INDICATOR HOUSING ASSEMBLY

35970F

-

-

-

2

REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

-

-

-

-

3

ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

84390B

-

-

-

PROCEDURE

1. REMOVE POSITION INDICATOR HOUSING ASSEMBLY

Click here

2. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

Click here

3. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY
