Toyota Corolla Cross (2022-2025) Service Manual / Brake / Brake System (other) / Brake Pedal (for Hev Model) / Removal

REMOVAL

CAUTION / NOTICE / HINT

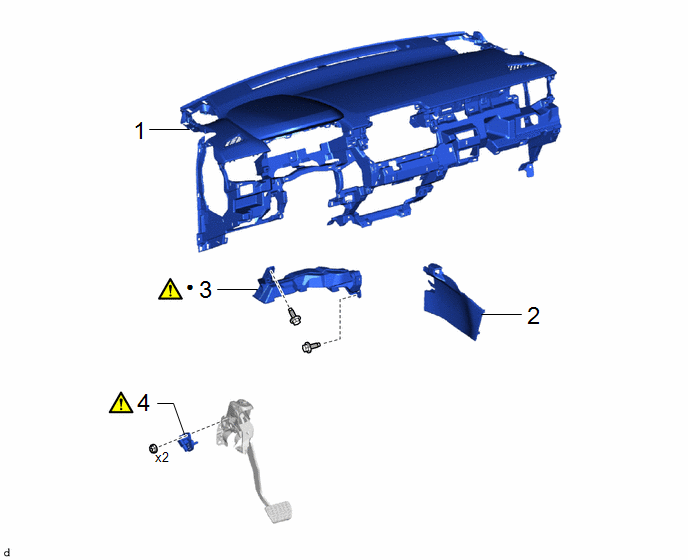

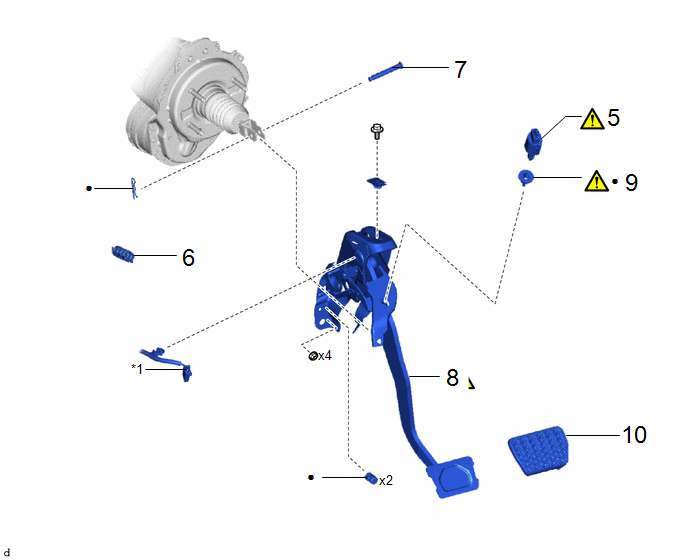

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

INSTRUMENT PANEL SAFETY PAD ASSEMBLY

55400

-

-

-

2

FRONT NO. 1 CONSOLE BOX INSERT

58816D

-

-

-

3

NO. 1 AIR DUCT

87211

-

-

4

BRAKE PEDAL STROKE SENSOR ASSEMBLY

89510D

-

-

●

Non-reusable part

-

-

Procedure

Part Name Code

5

STOP LIGHT SWITCH ASSEMBLY

84340

-

-

6

BRAKE PEDAL RETURN SPRING

47101A

-

-

-

7

PUSH ROD PIN

47264A

-

-

-

8

BRAKE PEDAL SUPPORT ASSEMBLY

47110

-

-

-

9

STOP LIGHT SWITCH MOUNTING ADJUSTER

84345

-

-

10

BRAKE PEDAL PAD

47121

-

-

-

*1

WIRE HARNESS

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during brake pedal support assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

Brake pedal*1
  1. Perform "Reset Memory"
  2. Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Brake system warning light (yellow indicator) illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click here

2. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

Click here

3. REMOVE NO. 1 AIR DUCT

Click here

4. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

Click here

5. REMOVE STOP LIGHT SWITCH ASSEMBLY

Click here

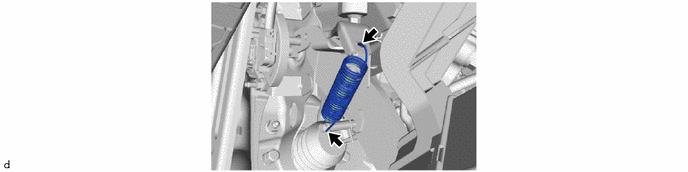

6. REMOVE BRAKE PEDAL RETURN SPRING

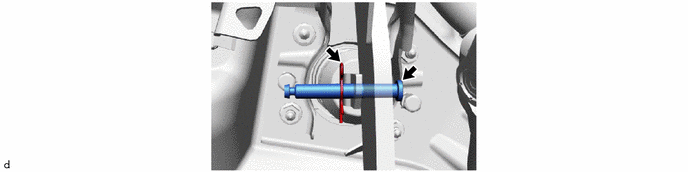

7. REMOVE PUSH ROD PIN

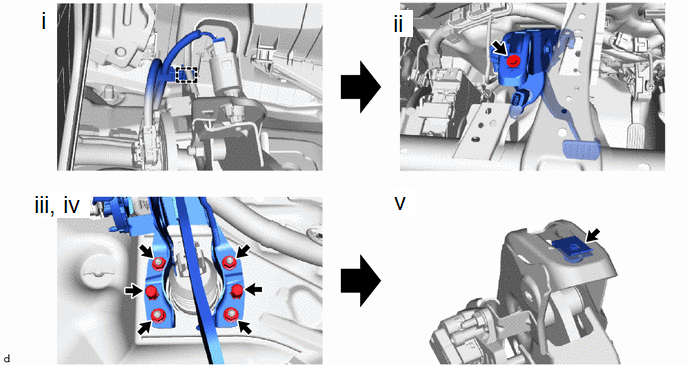

8. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

9. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

Click here

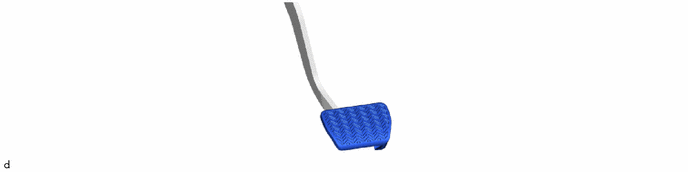

10. REMOVE BRAKE PEDAL PAD
