Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Audio / Video / Instrument Panel Speaker / Removal

REMOVAL

CAUTION / NOTICE / HINT

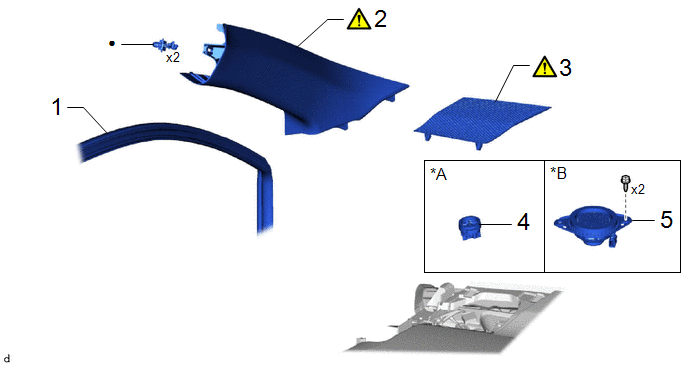

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT DOOR OPENING TRIM WEATHERSTRIP

62312B

-

-

-

2

FRONT PILLAR GARNISH ASSEMBLY

62212B

-

-

3

NO. 1 INSTRUMENT PANEL SPEAKER PANEL

55472C

-

-

4

FRONT NO. 2 SPEAKER ASSEMBLY

86160P

-

-

-

5

FRONT NO. 2 SPEAKER ASSEMBLY

86160P

-

-

-

*A

w/o Stereo Component Amplifier

*B

w/ Stereo Component Amplifier

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Click here

2. REMOVE FRONT PILLAR GARNISH ASSEMBLY

Click here

3. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL

Click here

4. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (w/o Stereo Component Amplifier)

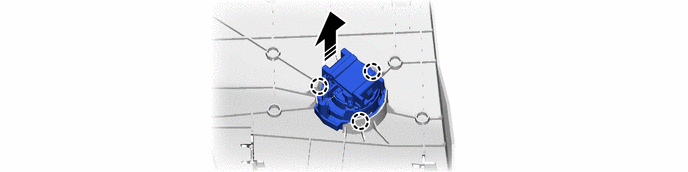

Remove in this Direction

-

-

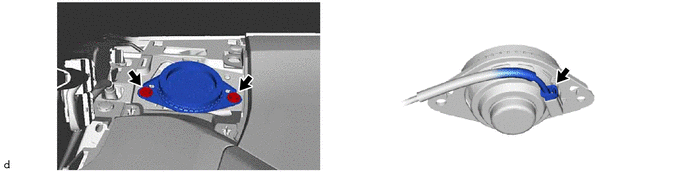

5. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (w/ Stereo Component Amplifier)
