Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

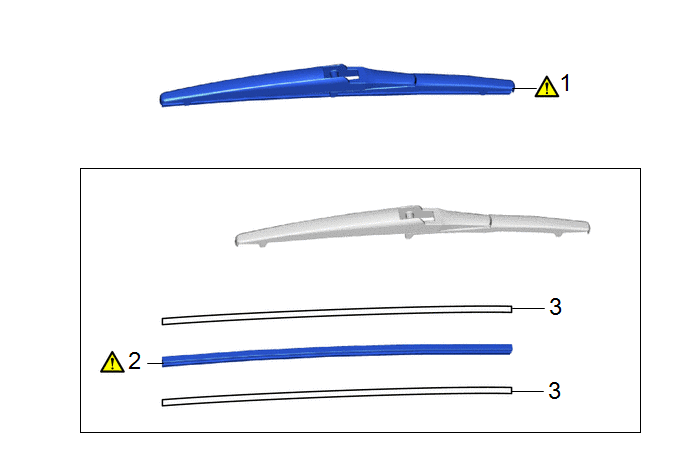

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR WIPER BLADE

85242

-

-

2

REAR WIPER RUBBER

85214R

-

-

3

WIPER BLADE RUBBER BACKING PLATE

-

-

-

-

PROCEDURE

1. REMOVE REAR WIPER BLADE

Remove in this Direction

-

-

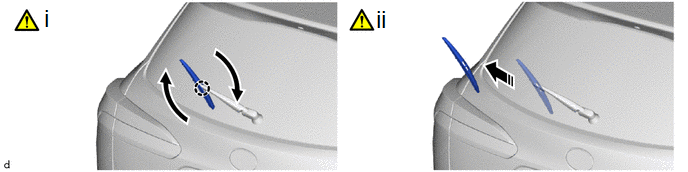

(1) Raise the rear wiper blade to the position where the claw disengages with a click sound as shown in the illustration.

NOTICE:

Be careful not to damage the claw.

(2) Remove the rear wiper blade from the rear wiper arm as shown in the illustration.

NOTICE:

Place a piece of cloth between the rear wiper arm and back door glass to avoid damaging the back door glass.

2. REMOVE REAR WIPER RUBBER

*a

Stopper

-

-

Push

Pull Out

Remove in this Direction

-

-

(1) Remove the rear wiper rubber by the below procedure.

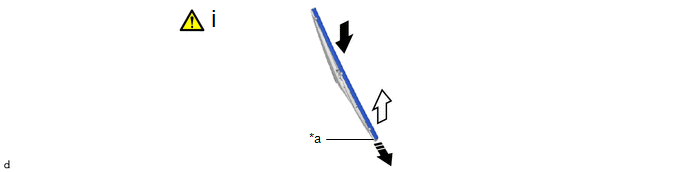

1. Lift and pull the end of the rear wiper rubber over the stopper as shown in the illustration.

NOTICE:

Do not forcibly pull out the rear wiper rubber as the rear wiper rubber backing plates may be deformed or the claws of the rear wiper blade may be damaged.

HINT:

Lightly pushing the middle of the rear wiper rubber will allow it to be removed more easily.

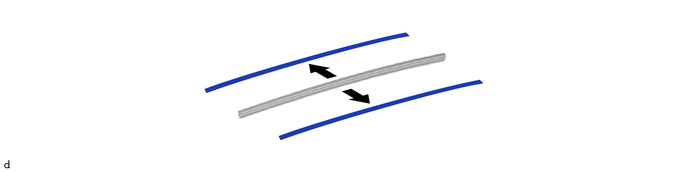

2. Remove the rear wiper rubber with the 2 rear wiper rubber backing plates from the rear wiper blade.

3. REMOVE WIPER BLADE RUBBER BACKING PLATE
