Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

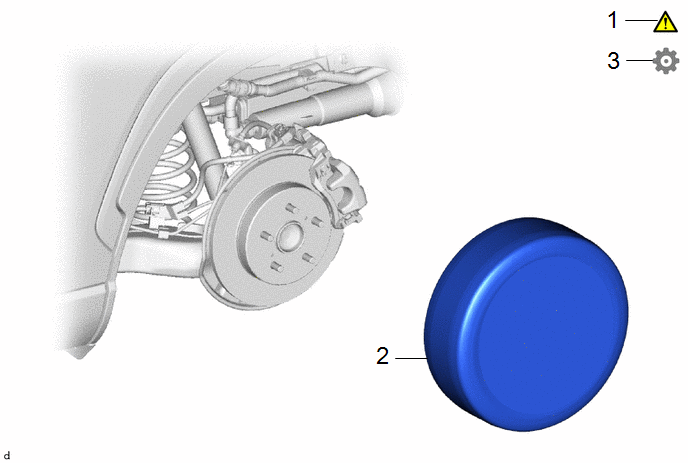

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

REAR WHEEL

-

-

-

-

3

PERFORM REAR BRAKE PAD REPLACEMENT MODE

-

-

-

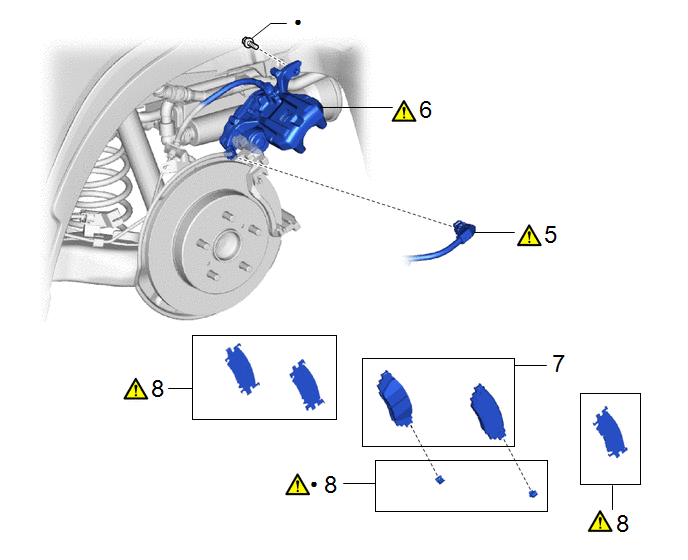

Procedure

Part Name Code

4

NO. 2 PARKING BRAKE WIRE ASSEMBLY

890C0A

-

-

5

REAR DISC BRAKE CYLINDER ASSEMBLY

-

-

-

6

REAR DISC BRAKE PAD KIT

04466

-

-

-

7

REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

-

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the rear disc brake pad removal/installation are shown below.

NOTICE:

  • Immediately after installing the rear disc brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.
  • After replacing the rear disc brake pads, the brake pedal may feel soft due to clearance between the rear disc brake pads and rear disc. Depress the brake pedal several times until the brake pedal feels firm.
  • After replacing the rear disc brake pads, always perform a road test to check the braking performance and check for vibrations.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

NOTICE:

Make sure to read the precautions of the electric parking brake system before removing the rear brake assembly.

  • for HEV Model:

    Click here

  • for Gasoline Model:

    Click here

2. REMOVE REAR WHEEL

Click here

3. PERFORM REAR BRAKE PAD REPLACEMENT MODE

  • for HEV Model:

    Click here

  • for Gasoline Model:

    Click here

4. DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click here

5. SEPARATE REAR DISC BRAKE CYLINDER ASSEMBLY

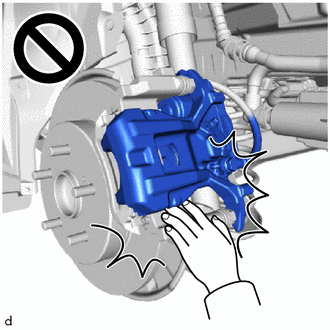

CAUTION:

  • Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when removing the rear disc brake pads.
  • After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.
  • The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

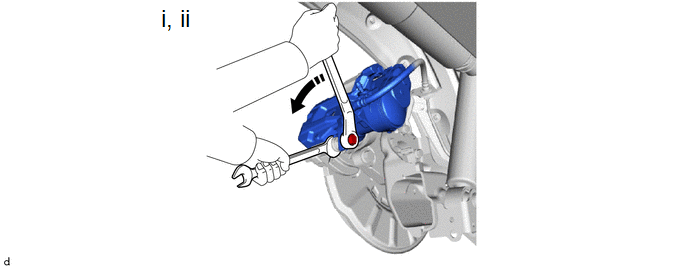

(1) Hold the rear disc brake cylinder slide pin (lower side) and remove the bolt.

(2) Pull the rear disc brake cylinder assembly upward.

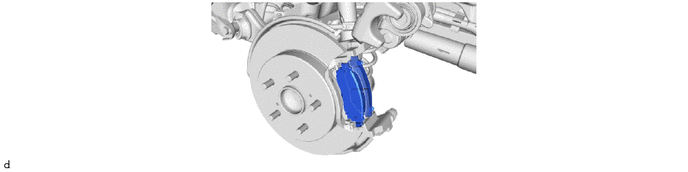

6. REMOVE REAR DISC BRAKE PAD KIT

7. REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

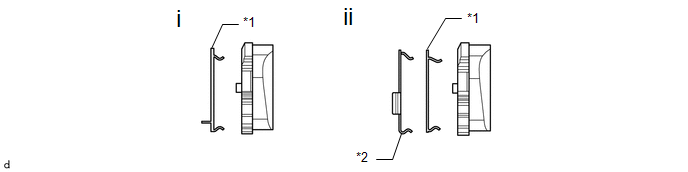

*1

Rear Disc Brake Anti-squeal Shim

*2

Rear No. 2 Disc Brake Anti-squealShim

(1) Remove the rear disc brake anti-squeal shim from the rear disc brake pad.

(2) Remove the rear disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim from each rear disc brake pad.

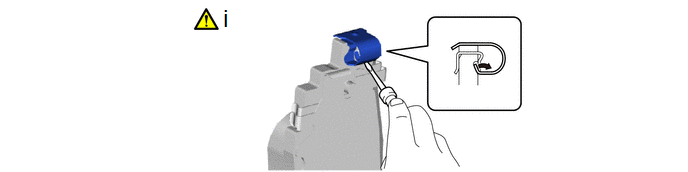

(1) Using a screwdriver, remove the rear disc brake pad wear indicator plate from each rear disc brake pad.
