Toyota Corolla Cross: Rear Side Marker Light Bulb

Toyota Corolla Cross (2022-2026) Service Manual / General / Maintenance / Rear Side Marker Light Bulb

Removal

REMOVAL

CAUTION / NOTICE / HINT

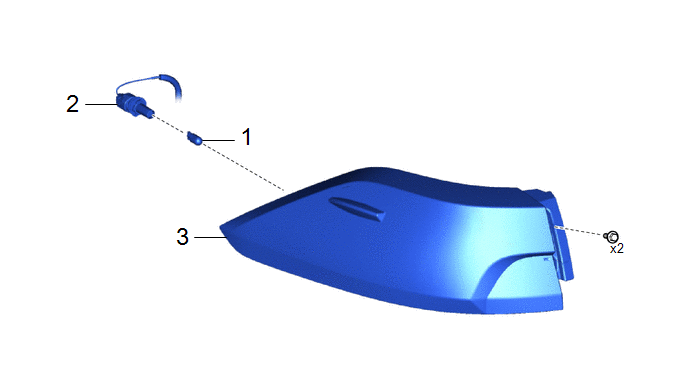

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR COMBINATION LIGHT ASSEMBLY

81560

-

-

2

REAR SIDE MARKER LIGHT SOCKET

-

-

-

-

3

REAR SIDE MARKER LIGHT BULB

81550S

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. SEPARATE REAR COMBINATION LIGHT ASSEMBLY

*a

Pin

*b

Guide

Remove in this Direction

-

-

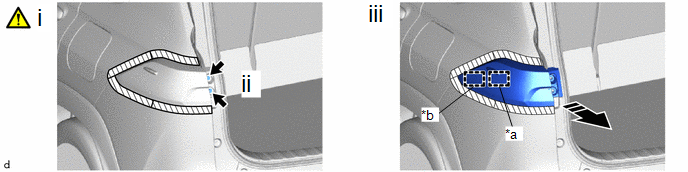

(1) Apply protective tape around the rear combination light assembly as shown in the illustration.

(2) Remove the 2 screws.

(3) Disengage the pin and guide to separate the rear combination light assembly as shown in the illustration.

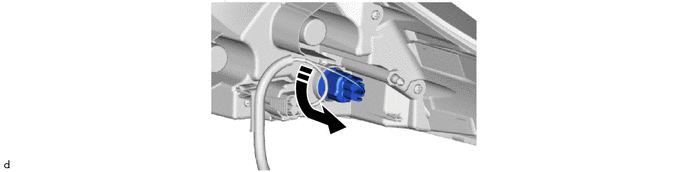

2. REMOVE REAR SIDE MARKER LIGHT SOCKET

Remove in this Direction

-

-

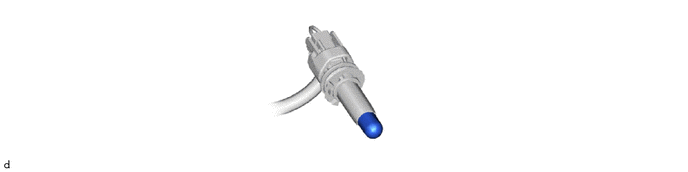

3. REMOVE REAR SIDE MARKER LIGHT BULB

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR SIDE MARKER LIGHT BULB

81550S

-

-

-

2

REAR SIDE MARKER LIGHT SOCKET

-

-

-

-

3

REAR COMBINATION LIGHT ASSEMBLY

81560

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR SIDE MARKER LIGHT BULB

2. INSTALL REAR SIDE MARKER LIGHT SOCKET

3. INSTALL REAR COMBINATION LIGHT ASSEMBLY
