Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

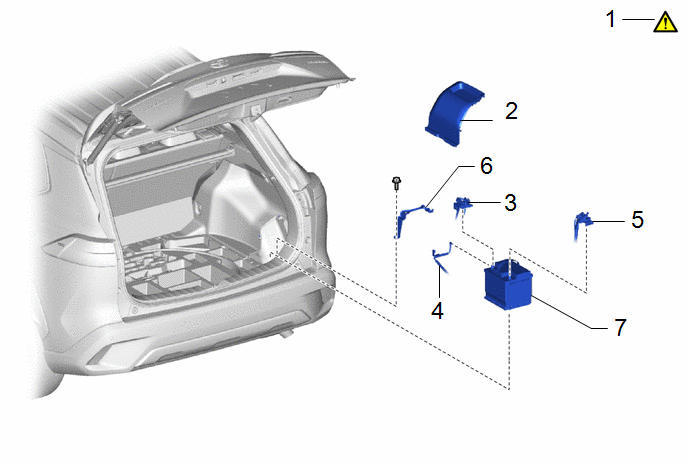

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

SIDE DECK TRIM SERVICE HOLE COVER

64735

-

-

-

3

NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

4

BATTERY HOSE

-

-

-

-

5

POSITIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

6

BATTERY CLAMP

74482

-

-

-

7

AUXILIARY BATTERY

-

-

-

-

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front Camera System

    Drive the vehicle straight ahead at 15 km/h(10 mph) or more for 1 second or more.

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

NOTICE:

  • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Click here

  • When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.

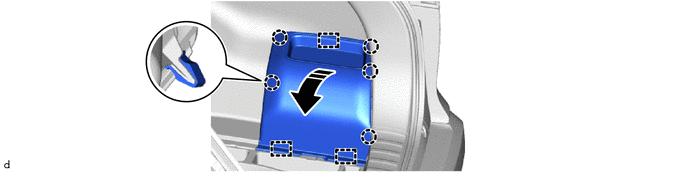

2. REMOVE SIDE DECK TRIM SERVICE HOLE COVER

Remove in this Direction

-

-

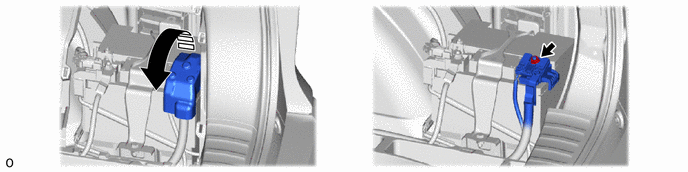

3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

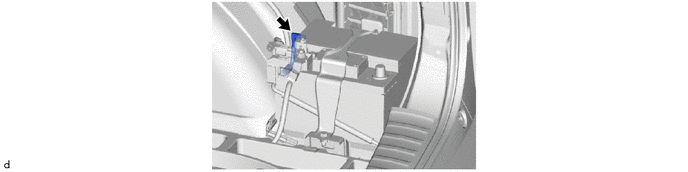

4. DISCONNECT BATTERY HOSE

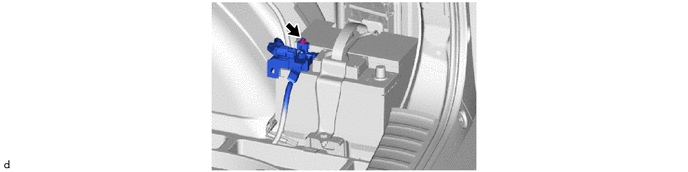

5. DISCONNECT POSITIVE AUXILIARY BATTERY TERMINAL

Remove in this Direction

-

-

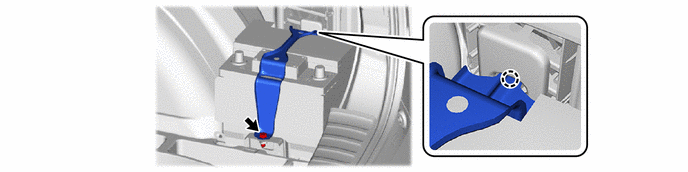

6. REMOVE BATTERY CLAMP

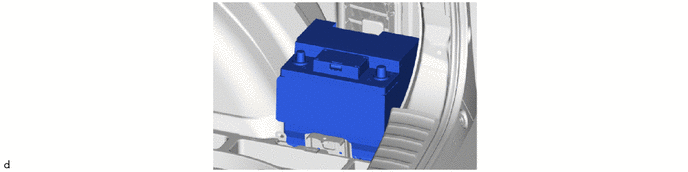

7. REMOVE AUXILIARY BATTERY
