Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

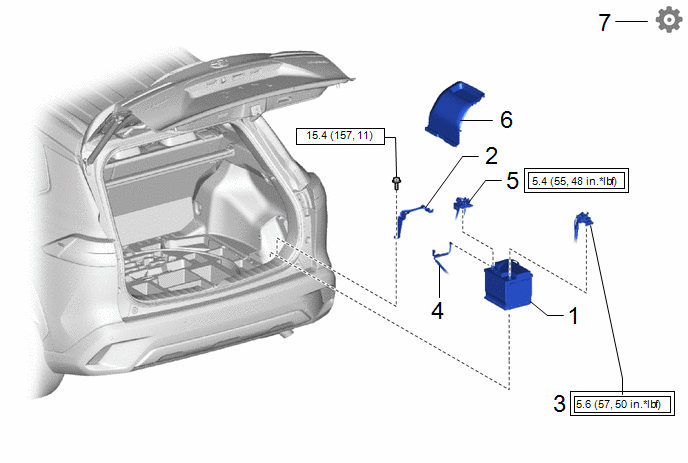

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

AUXILIARY BATTERY

-

-

-

-

2

BATTERY CLAMP

74482

-

-

-

3

POSITIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

4

BATTERY HOSE

-

-

-

-

5

NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

6

SIDE DECK TRIM SERVICE HOLE COVER

64735

-

-

-

7

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

CAUTION / NOTICE / HINT

NOTICE:

When replacing the battery, use a new battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.

PROCEDURE

1. INSTALL AUXILIARY BATTERY

2. INSTALL BATTERY CLAMP

Torque:

15.4 N·m {157 kgf·cm, 11 ft·lbf}

3. CONNECT POSITIVE AUXILIARY BATTERY TERMINAL

Torque:

5.6 N·m {57 kgf·cm, 50 in·lbf}

4. CONNECT BATTERY HOSE

5. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

6. INSTALL SIDE DECK TRIM SERVICE HOLE COVER

7. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function thatcompletes learning when the respective system is used.

Click here
