Toyota Corolla Cross (2022-2026) Service Manual / General / Maintenance / Air Conditioning Filter / Removal

REMOVAL

CAUTION / NOTICE / HINT

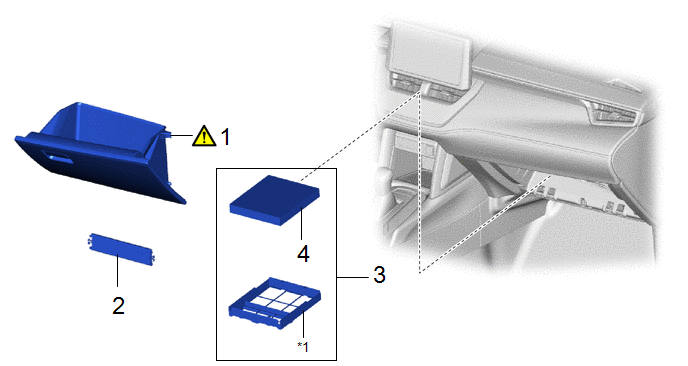

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

GLOVE COMPARTMENT DOOR ASSEMBLY

55550

-

-

2

AIR FILTER COVER PLATE

88899M

-

-

-

3

AIR FILTER CASE WITH CLEAN AIR FILTER

-

-

-

-

4

CLEAN AIR FILTER

87139C

-

-

-

*1

AIR FILTER CASE

-

-

PROCEDURE

1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Click here

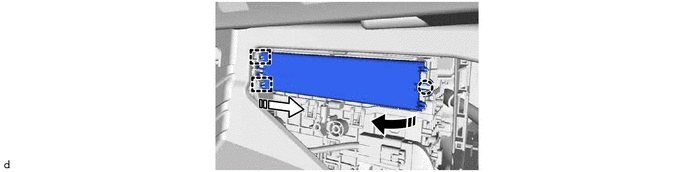

2. REMOVE AIR FILTER COVER PLATE

Remove in this Direction (1)

Remove in this Direction (2)

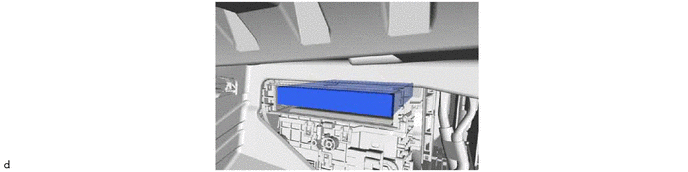

3. REMOVE AIR FILTER CASE WITH CLEAN AIR FILTER

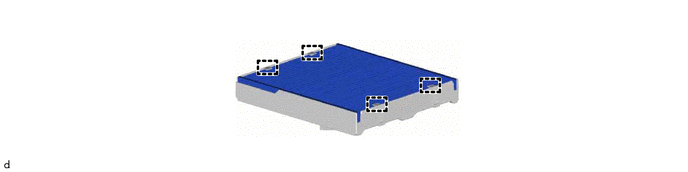

4. REMOVE CLEAN AIR FILTER
