INSTALLATION

CAUTION / NOTICE / HINT

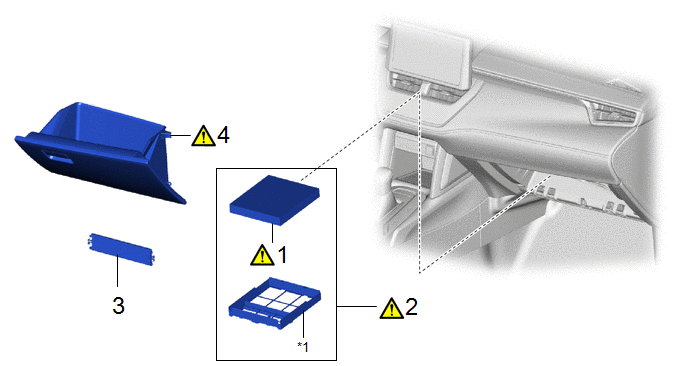

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

CLEAN AIR FILTER

87139C

-

-

2

AIR FILTER CASE WITH CLEAN AIR FILTER

-

-

-

3

AIR FILTER COVER PLATE

88899M

-

-

-

4

GLOVE COMPARTMENT DOOR ASSEMBLY

55550

-

-

*1

AIR FILTER CASE

-

-

PROCEDURE

1. INSTALL CLEAN AIR FILTER

*a

Cutout

-

-

Install in this Direction (1)

Install in this Direction (2)

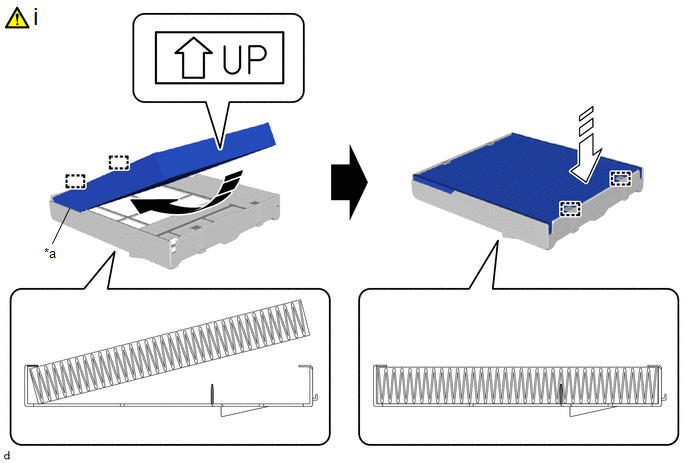

(1) Engage the guides on the cutout side of the air filter case and then engage the guides as shown in the illustration to install the clean air filter.

NOTICE:

  • Do not apply excessive force to the filter medium, as doing so may damage it.
  • Make sure that the "UP" mark are facing the correct direction before installing the clean air filter.
  • Make sure that there is no clearance between the clean air filter and air filter case and that the clean air filter is not deformed.

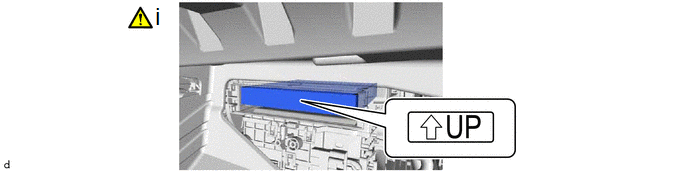

2. INSTALL AIR FILTER CASE WITH CLEAN AIR FILTER

(1) Install the air filter case with clean air filter as shown in the illustration.

NOTICE:

Make sure that the "UP" mark is facing the correct direction before installing the air filter case with clean air filter.

3. INSTALL AIR FILTER COVER PLATE

4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
