Toyota Corolla Cross: Back-up Light Bulb

Toyota Corolla Cross (2022-2025) Service Manual / General / Maintenance / Back-up Light Bulb

Removal

REMOVAL

CAUTION / NOTICE / HINT

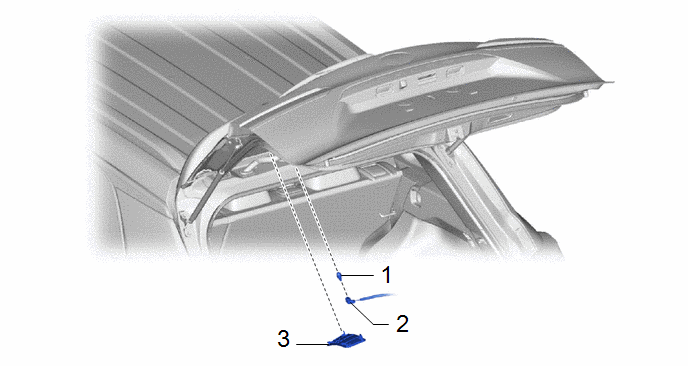

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

BACK DOOR SERVICE HOLE COVER

67848

-

-

2

BACK UP LIGHT SOCKET

-

-

-

-

3

BACK UP LIGHT BULB

81550N

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

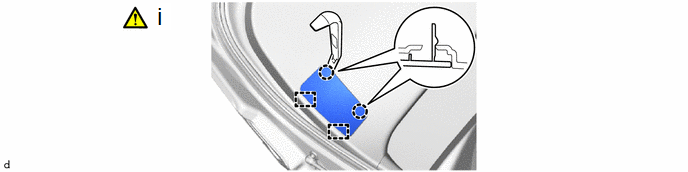

1. REMOVE BACK DOOR SERVICE HOLE COVER

(1) Using a moulding remover A, disengage the claws and guides to remove the back door service hole cover.

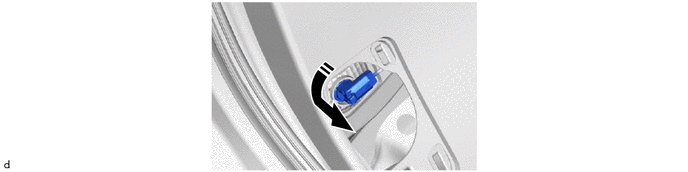

2. REMOVE BACK UP LIGHT SOCKET

Remove in this Direction

-

-

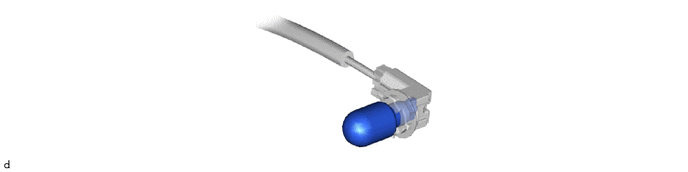

3. REMOVE BACK UP LIGHT BULB

Installation

INSTALLATION

CAUTION / NOTICE / HINT

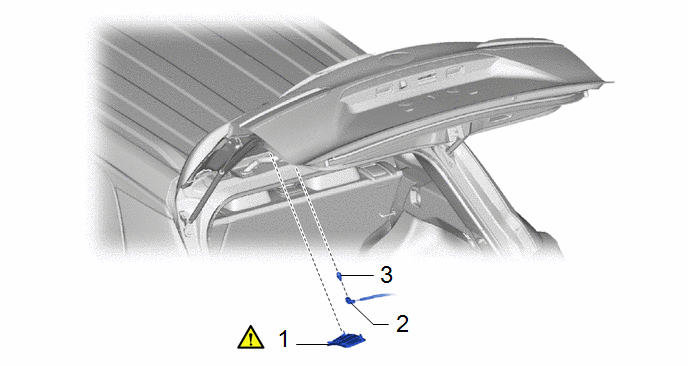

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BACK UP LIGHT BULB

81550N

-

-

-

2

BACK UP LIGHT SOCKET

-

-

-

-

3

BACK DOOR SERVICE HOLE COVER

67848

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL BACK UP LIGHT BULB

2. INSTALL BACK UP LIGHT SOCKET

3. INSTALL BACK DOOR SERVICE HOLE COVER
