Toyota Corolla Cross: Rear Speed Sensor (for Awd)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

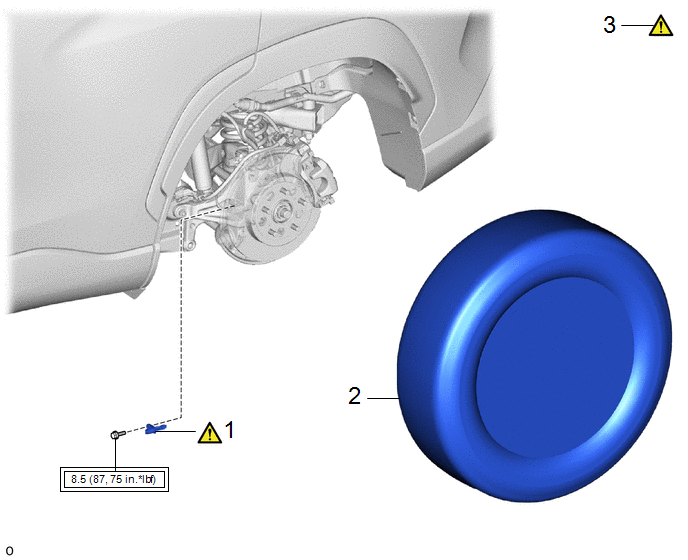

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR SKID CONTROL SENSOR

89544E

-

-

2

REAR WHEEL

-

-

-

-

3

CHECK FOR SPEED SENSOR SIGNAL

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR SKID CONTROL SENSOR

NOTICE:

  • Keep the tip of the rear skid control sensor and installation hole free of foreign matter.
  • Firmly insert the rear speed sensor body into the rear axle carrier sub-assembly before tightening the bolt.
  • After installing the rear speed sensor to the rear axle carrier sub-assembly, make sure that there is no clearance between the rear speed sensor stay and rear axle carrier sub-assembly. Also make sure that no foreign matter is stuck between the parts.

Torque:

:

8.5 N·m {87 kgf·cm, 75 in·lbf}

2. INSTALL REAR WHEEL

Click here

3. CHECK FOR SPEED SENSOR SIGNAL

  • for HEV Model:

    Click here

  • for Gasoline Model:

    Click here
