Toyota Corolla Cross: Recovery Inspection

CAUTION / NOTICE / HINT

CAUTION:

  • When disposing of an HV battery, make sure to return it through an authorized collection agent who is capable of handling it safely. If the HV battery is returned via the manufacturer specified route, it will be returned properly and in a safe manner by an authorized collection agent.
  • Before returning the HV battery, make sure to perform a pre-return inspection.
  • Accidents such as electric shock may result if the HV battery is discharged improperly and disposed or abandoned.

    Therefore, make sure to return the HV battery through an authorized collection agent.

  • To reduce the risk of fire, HV battery must not be stored in an area where they will be exposed to fire or high temperatures.
  • If the temperature of the HV battery is high, leave it to cool down.

HINT:

In order to return the HV battery in a safe manner, it may be necessary to discharge it. The following pre-return inspection procedure can be used to determine whether or not it is necessary to discharge the HV battery the method that may be required.

PROCEDURE

1.

INSPECT FOR ELECTROLYTE LEAK

CAUTION:

Be sure to wear insulated gloves and protective goggles.

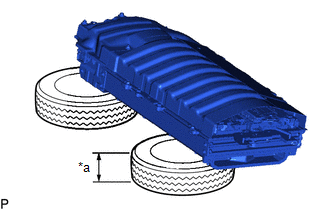

(a) Position the HV battery as shown in the illustration and leave it for 5 minutes.

*a

155 mm (6.10 in.) or more

(b) Check that no electrolyte is leaking from the HV battery.

OK:

There is no electrolyte leaking from the HV battery.

CAUTION:

  • Perform this procedure in an area where the battery will not be exposed to fire.
  • Do not touch the HV battery, unless absolutely necessary, as electrolyte may be leaking.

NOTICE:

If there is an electrolyte leak, make sure to wear insulated gloves and goggles and clean it using a piece of cloth. Do not leave electrolyte-contaminated cloths unattended. Dispose of them according to law or local regulations.

NG

DISCHARGING (WHEN USING THE SALT WATER SOLUTION)

OK

2.

CHECK FOR DTCS

(a) Check the previously recorded DTCs which resulted in replacement of the HV battery.

Result

Proceed to

DTC record not available.

A

The HV battery was replaced due to one of the DTCs listed in the following table.

B

The HV battery was replaced due to a reason other than the DTCs listed in the following table.

C

DTC No.

P1A6017

P31AA17

P0C3000

P31B300

P1C7D49

B

GO TO STEP 6

C

GO TO STEP 5

A

3.

CHECK HV BATTERY VOLTAGE

CAUTION:

Wear insulated gloves.

(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A - B

Always

Below 222.0 V

CAUTION:

Make sure not to cross the probes of the electrical tester.

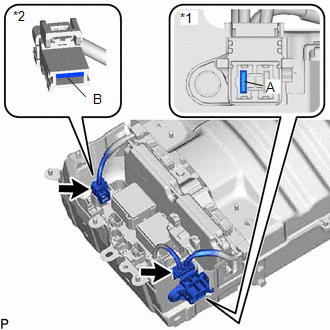

*1

No. 2 HV Battery Main Cable (A)

*2

No. 1 HV Battery Main Cable (B)

NG

GO TO STEP 6

OK

4.

INSULATION INSPECTION OF HV BATTERY

CAUTION:

Wear insulated gloves.

(a) Using a megohmmeter set to 500 V, measure the insulation resistance according to the value(s) in the table below.

NOTICE:

Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A - Battery Outer Case

Always

1 MΩ or higher

B - Battery Outer Case

Always

1 MΩ or higher

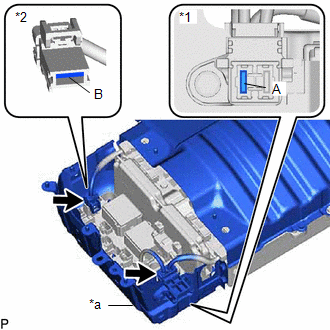

*1

No. 2 HV Battery Main Cable (A)

*2

No. 1 HV Battery Main Cable (B)

*a

Battery Outer Case

NG

GO TO STEP 6

OK

5.

HV BATTERY VISUAL CHECK

CAUTION:

Wear insulated gloves.

(a) Check that the HV battery is not deformed or damaged.

OK:

The HV battery is not deformed or damaged.

OK

RETURN HV BATTERY

NG

GO TO STEP 6

6.

HV BATTERY CONNECTORS VISUAL CHECK

CAUTION:

Be sure to wear insulated gloves and protective goggles.

(a) Check that the orange connectors connected to the battery ECU assembly are not deformed or damaged.

OK:

The connectors are not deformed or damaged.

HINT:

If any of the connectors are damaged, a Li-ion battery discharger will not be able to be connected to the HV battery. Soak the HV battery in a saltwater solution to discharge it.

OK

DISCHARGING (WHEN USING THE LI-ION BATTERY DISCHARGER)

NG

DISCHARGING (WHEN USING THE SALT WATER SOLUTION)
