Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

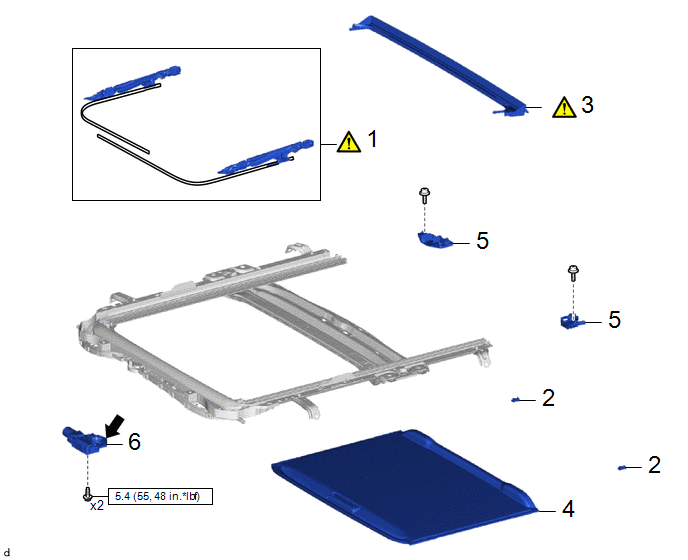

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

63205A

-

-

2

REAR NO. 1 SLIDING ROOF SUNSHADE STOPPER

-

-

-

-

3

REAR ROOF DRIP CHANNEL

-

-

-

4

SUNSHADE TRIM SUB-ASSEMBLY

63306

-

-

-

5

SLIDING ROOF PIECE SUB-ASSEMBLY

-

-

-

-

6

SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

63260A

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

MP grease

PROCEDURE

1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

NOTICE:

Perform this procedure only when replacement of the sliding roof drive cable sub-assembly is necessary.

*a

Alignment Mark

-

-

Non-reusable part

Hold Down

Push Position

Install in this Direction

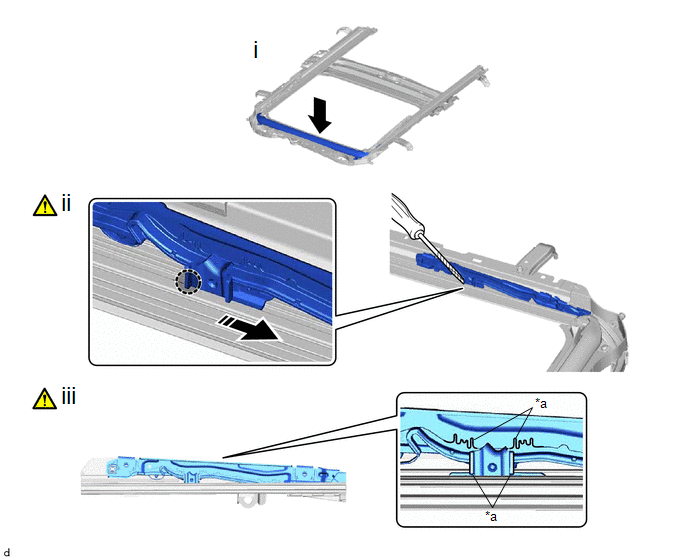

(1) Hold down the roof wind deflector panel sub-assembly.

(2) Using a screwdriver with its tip wrapped with protective tapes, install the sliding roof drive cable sub-assembly as shown in the illustration.

HINT:

Use the same procedure for the opposite side.

(3) Adjust Fully Closed Position:

1. Using a screwdriver with its tip wrapped with protective tapes, align the alignment marks as shown in the illustration.

HINT:

Use the same procedure for the opposite side.

2. INSTALL REAR NO. 1 SLIDING ROOF SUNSHADE STOPPER

3. INSTALL REAR ROOF DRIP CHANNEL

NOTICE:

Perform this procedure only when replacement of the sliding roof drive cable sub-assembly is necessary.

4. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

5. INSTALL SLIDING ROOF PIECE SUB-ASSEMBLY

6. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

MP grease

-

-

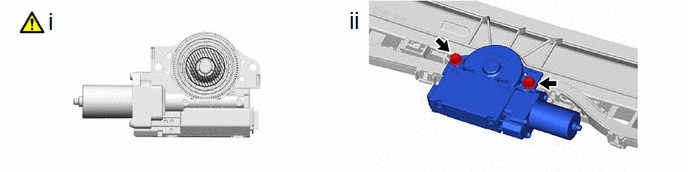

(1) Apply MP grease to the gear of the sliding roof drive gear sub-assembly.

(2) Install the sliding roof drive gear sub-assembly with the 2 bolts.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}
