Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Lighting (ext) / Headlight Assembly (for Led Type Clearance Light) / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

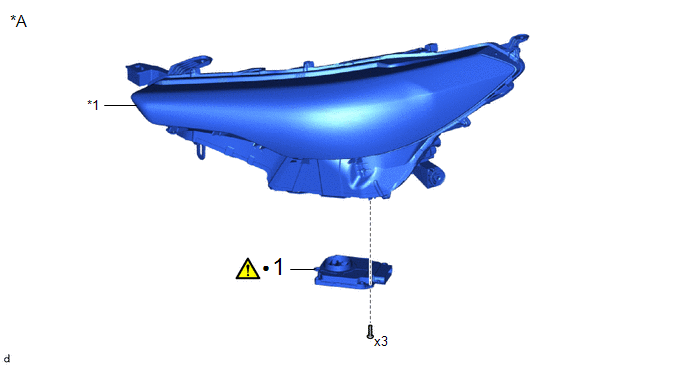

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

HEADLIGHT ECU SUB-ASSEMBLY

-

-

-

*A

w/ AFS

-

-

*1

HEADLIGHT UNIT ASSEMBLY

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL HEADLIGHT ECU SUB-ASSEMBLY (w/ AFS)

Click here
