Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

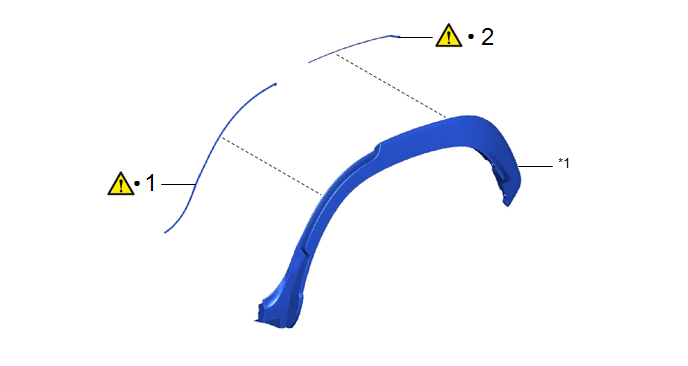

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

NO. 2 BODY OUTSIDE MOULDING PAD

75697

-

-

2

NO. 1 BODY OUTSIDE MOULDING PAD

75696

-

-

*1

QUARTER OUTSIDE MOULDING

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL NO. 2 BODY OUTSIDE MOULDING PAD

NOTICE:

When installing a new No. 2 body outside moulding pad, heat the quarter outside moulding using a heat light.

Standard:

Item

Temperature

Quarter Outside Moulding

20 to 30°C (68 to 86°F)

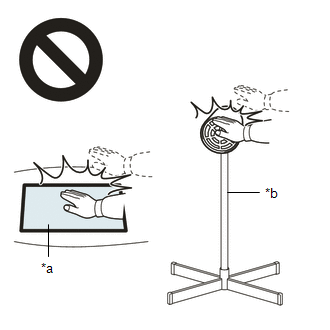

CAUTION:

  • Do not touch the heat light and heated parts.
  • Touching the heat light may result in burns.
  • Touching heated parts for a long time may result in burns.

*a

Heated Part

*b

Heat Light

NOTICE:

Do not heat the quarter outside moulding excessively.

*a

Location Line

*b

End of R

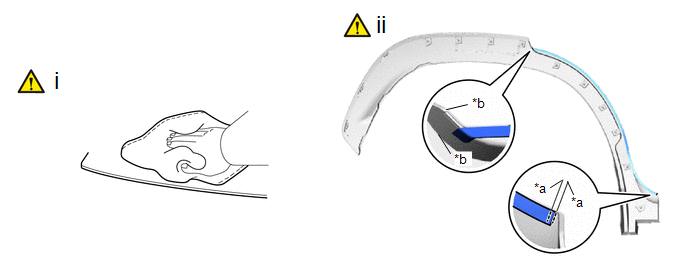

(1) Clean the quarter outside moulding.

1. Using a heat light, heat the quarter outside moulding surface.

2. Remove any remaining double-sided tape from the quarter outside moulding.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:

  • Installing the No. 2 body outside moulding pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
  • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

(2) Install a new No. 2 body outside moulding pad.

1. Using a heat light, heat the quarter outside moulding.

2. Remove the release paper from the No. 2 body outside moulding pad.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Install the No. 2 body outside moulding pad as shown in the illustration.

HINT:

  • Make sure that the end of the No. 2 body outside moulding pad is between the location lines.
  • Make sure that the end of the No. 2 body outside moulding pad is between the end of R.
  • Press the No. 2 body outside moulding pad firmly to install it.

2. INSTALL NO. 1 BODY OUTSIDE MOULDING PAD

NOTICE:

When installing a new No. 1 body outside moulding pad, heat the quarter outside moulding using a heat light.

Standard:

Item

Temperature

Quarter Outside Moulding

20 to 30°C (68 to 86°F)

CAUTION:

  • Do not touch the heat light and heated parts.
  • Touching the heat light may result in burns.
  • Touching heated parts for a long time may result in burns.

*a

Heated Part

*b

Heat Light

NOTICE:

Do not heat the quarter outside moulding excessively.

*a

Location Line

-

-

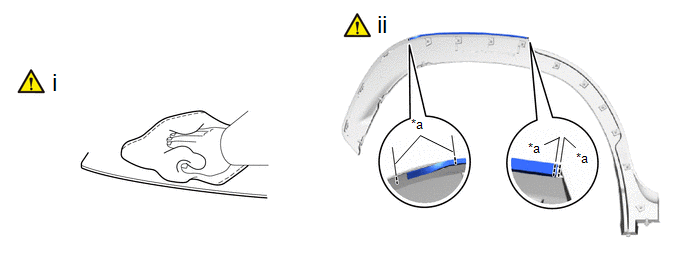

(1) Clean the quarter outside moulding.

1. Using a heat light, heat the quarter outside moulding surface.

2. Remove any remaining double-sided tape from the quarter outside moulding.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:

  • Installing the No. 1 body outside moulding pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
  • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

(2) Install a new No. 1 body outside moulding pad.

1. Using a heat light, heat the quarter outside moulding.

2. Remove the release paper from the No. 1 body outside moulding pad.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Install the No. 1 body outside moulding pad as shown in the illustration.

HINT:

  • Make sure that the end of the No. 1 body outside moulding pad is between the location lines.
  • Press the No. 1 body outside moulding pad firmly to install it.
