Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

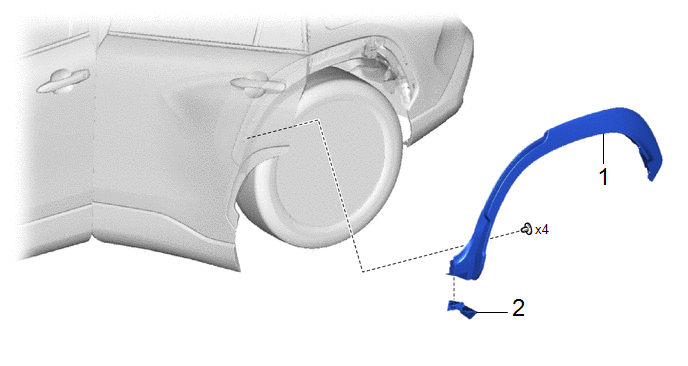

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) |
|
1 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY |
75606B | - |
- | - |
|
2 | REAR WHEEL HOUSE FRONT PLATE |
65632D | - |
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL QUARTER OUTSIDE MOULDING SUB-ASSEMBLY
2. INSTALL REAR WHEEL HOUSE FRONT PLATE
Click here
.gif)
