Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

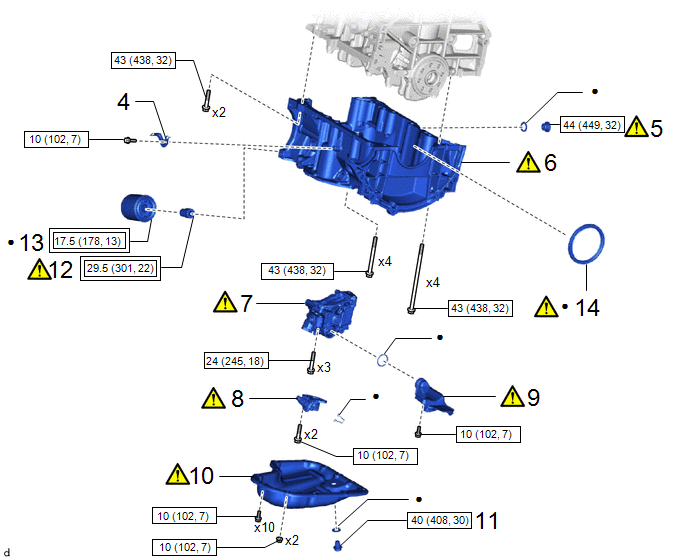

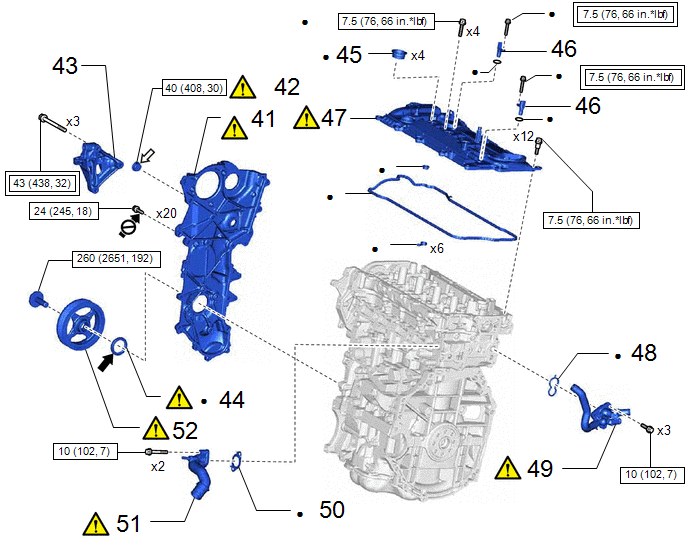

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

STRAIGHT PIN

-

-

-

2

RING PIN

-

-

-

3

STUD BOLT

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Procedure

Part Name Code

4

WIRE HARNESS CLAMP BRACKET

-

-

-

-

5

STRAIGHT SCREW PLUG

-

-

-

6

STIFFENING CRANKCASE ASSEMBLY

11420

-

-

7

OIL PUMP ASSEMBLY

15100

-

-

8

ENGINE OIL LEVEL SENSOR

89491

-

-

9

OIL STRAINER SUB-ASSEMBLY

15104

-

-

10

OIL PAN SUB-ASSEMBLY

12101

-

-

11

OIL PAN DRAIN PLUG

12101A

-

-

-

12

OIL FILTER UNION

15600A

-

-

13

OIL FILTER SUB-ASSEMBLY

15601

-

-

-

14

REAR ENGINE OIL SEAL

11401L

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

Procedure

Part Name Code

15

CYLINDER BLOCK WATER JACKET SPACER

11445

-

-

-

16

CYLINDER HEAD GASKET

11115

-

-

17

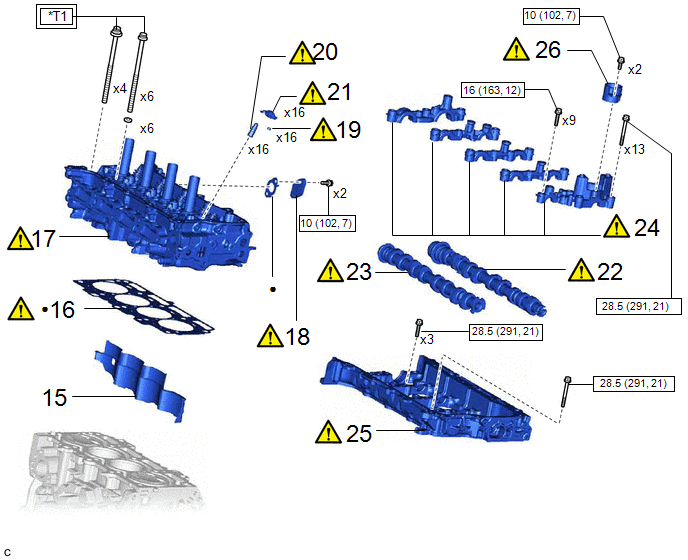

CYLINDER HEAD SUB-ASSEMBLY

11101

-

-

18

WATER SEAL PLATE

11492B

-

-

19

VALVE STEM CAP

13716

-

-

20

VALVE LASH ADJUSTER ASSEMBLY

13750

-

-

21

NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

13801

-

-

22

EXHAUST CAMSHAFT SUB-ASSEMBLY

13502B

-

-

23

INTAKE CAMSHAFT SUB-ASSEMBLY

13501A

-

-

24

CAMSHAFT BEARING CAP

-

-

-

25

CAMSHAFT HOUSING SUB-ASSEMBLY

11103

-

-

26

FUEL PUMP LIFTER GUIDE

23477

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

*T1

1st: 50 (510, 37)

2nd: Turn 90°

3rd: Turn 90°

-

-

Procedure

Part Name Code

27

CRANKSHAFT TIMING GEAR KEY

13471A

-

-

28

OIL NOZZLE VALVE SUB-ASSEMBLY

15703A

-

-

-

29

TIMING CHAIN COVER ASSEMBLY

11310

-

-

30

CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

13070A

-

-

31

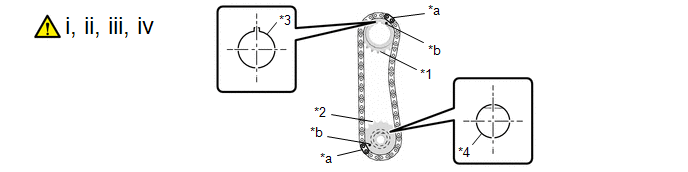

NO. 1 CYLINDER TO TDC (COMPRESSION)

-

-

-

32

NO. 1 CHAIN VIBRATION DAMPER

13561

-

-

-

33

CHAIN TENSIONER SLIPPER

13559

-

-

-

34

NO. 1 CHAIN TENSIONER ASSEMBLY

13540

-

-

35

CRANKSHAFT TIMING SPROCKET

13521

-

-

-

36

CHAIN SUB-ASSEMBLY

13506

-

-

-

37

CAMSHAFT TIMING GEAR ASSEMBLY

13050

-

-

38

OIL PUMP DRIVE CHAIN SUB-ASSEMBLY

13507A

-

-

39

CHAIN TENSIONER PLATE

-

-

-

-

40

NO. 1 CYLINDER TO TDC (COMPRESSION)

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Procedure

Part Name Code

41

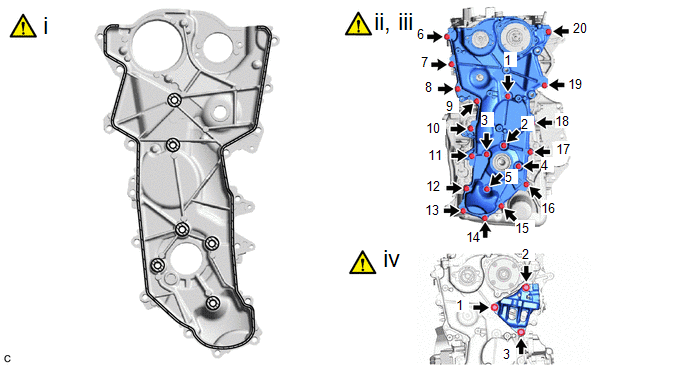

NO. 2 TIMING CHAIN COVER ASSEMBLY

11320B

-

-

42

STRAIGHT SCREW PLUG

-

-

-

43

ENGINE MOUNTING BRACKET RH

12315A

-

-

-

44

TIMING CHAIN COVER OIL SEAL

11301C

-

-

45

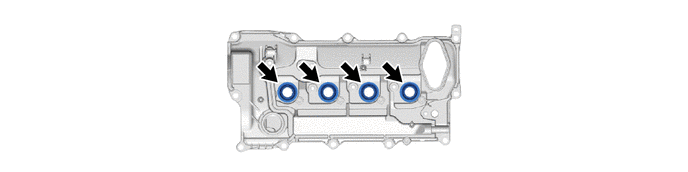

SPARK PLUG TUBE GASKET

11193

-

-

-

46

CAMSHAFT POSITION SENSOR

11102A

-

-

-

47

CYLINDER HEAD COVER SUB-ASSEMBLY

11201

-

-

48

WATER OUTLET PIPE GASKET

16345

-

-

-

49

WATER BY-PASS OUTLET SUB-ASSEMBLY

16305E

-

-

50

WATER OUTLET GASKET

16341

-

-

-

51

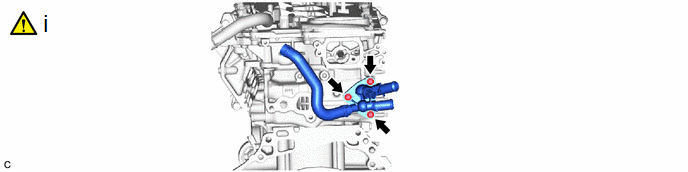

WATER OUTLET

16331

-

-

52

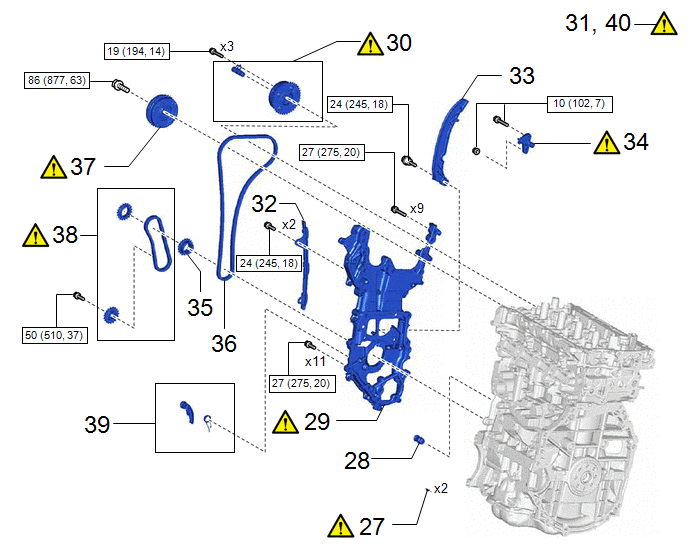

CRANKSHAFT PULLEY ASSEMBLY

13470

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

Adhesive 1324

Precoated part

Do not apply lubricants to the threaded parts

-

-

Procedure

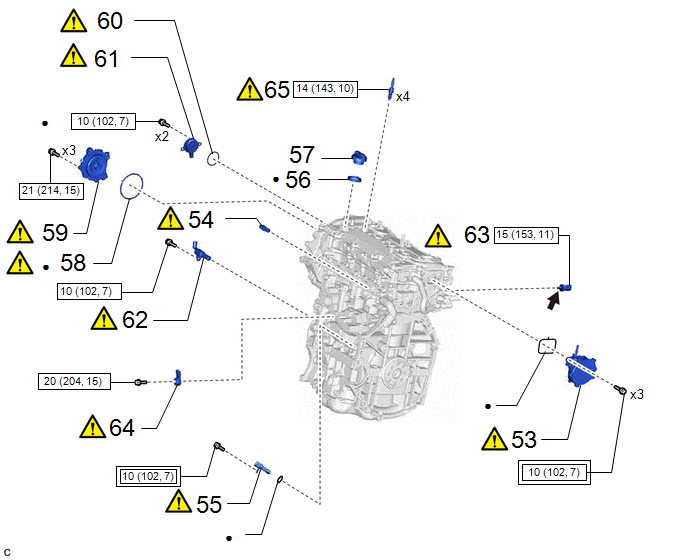

Part Name Code

53

VACUUM PUMP ASSEMBLY

29300

-

-

54

PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

12204C

-

-

55

CRANKSHAFT POSITION SENSOR

11401G

-

-

56

OIL FILLER CAP GASKET

12108A

-

-

-

57

OIL FILLER CAP ASSEMBLY

12180E

-

-

-

58

CAM TIMING CONTROL MOTOR O-RING

13090E

-

-

59

CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

13090D

-

-

60

CAM TIMING OIL CONTROL SOLENOID O-RING

13090E

-

-

61

CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

15370

-

-

62

OIL PRESSURE CONTROL VALVE ASSEMBLY

15250

-

-

63

OIL PRESSURE AND TEMPERATURE SENSOR

89448D

-

-

64

KNOCK CONTROL SENSOR

89615

-

-

65

SPARK PLUG

19100P

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Adhesive 1344

Precoated part

-

-

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

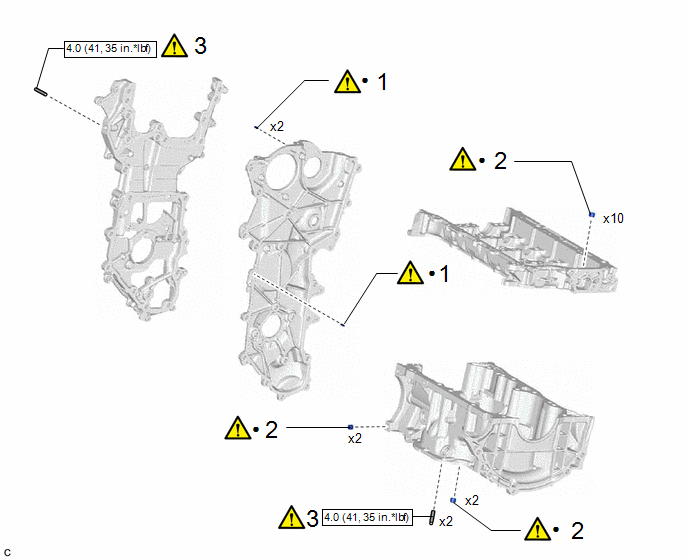

1. INSTALL STRAIGHT PIN

NOTICE:

It is not necessary to remove the straight pins unless they are being replaced.

*a

Protrusion Height

-

-

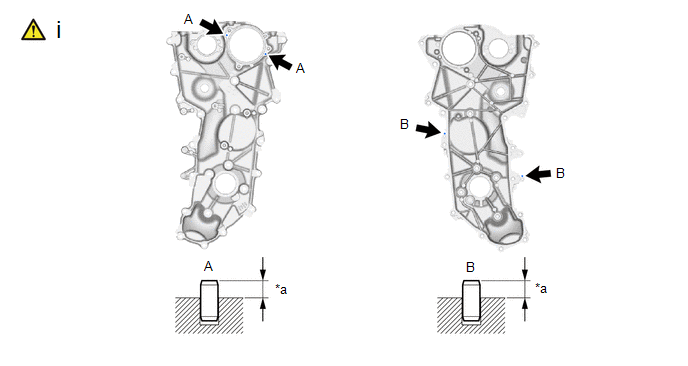

(1) Using a plastic hammer, tap in 4 new straight pins to the No. 2 timing chain cover assembly.

Standard Protrusion Height:

Straight Pin (A)

3.0 to 5.0 mm (0.118 to 0.197 in.)

Straight Pin (B)

5.0 to 7.0 mm (0.197 to 0.276 in.)

2. INSTALL RING PIN

NOTICE:

It is not necessary to remove the ring pins unless they are being replaced.

*a

Protrusion Height

-

-

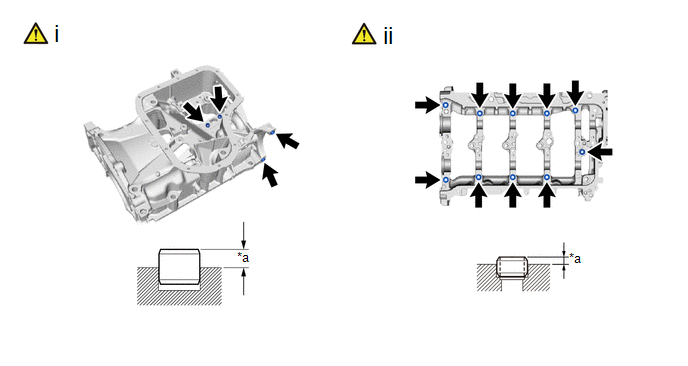

(1) Using a plastic hammer, tap in 4 new ring pins to the stiffening crankcase assembly.

Standard Protrusion Height:

3.5 to 4.5 mm (0.138 to 0.177 in.)

(2) Using a plastic hammer, tap in 10 new camshaft bearing cap setting ring pins to the camshaft housing sub-assembly.

Standard Protrusion Height:

3.2 to 4.3 mm (0.126 to 0.169 in.)

3. INSTALL STUD BOLT

NOTICE:

If a stud bolt is deformed or its threads are damaged, replace it.

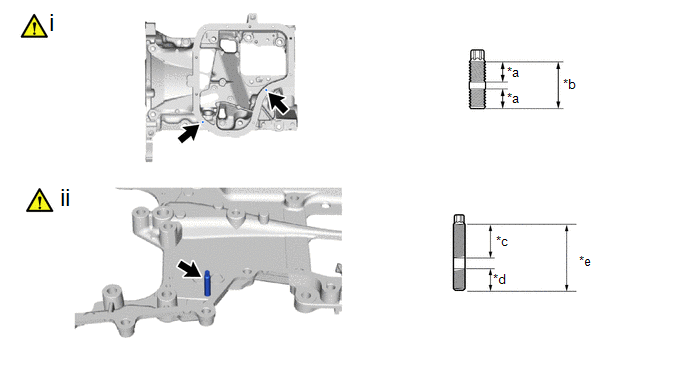

*a

9 mm (0.354 in.)

*b

19 mm (0.748 in.)

*c

21 mm (0.827 in.)

*d

9 mm (0.354 in.)

*e

34 mm (1.339 in.)



(1) Using an E6 "TORX" socket wrench, install the 2 stud bolts to the stiffening crankcase assembly.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

(2) Using an E6 "TORX" socket wrench, install the stud bolt to the timing chain cover assembly.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

4. INSTALL WIRE HARNESS CLAMP BRACKET

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

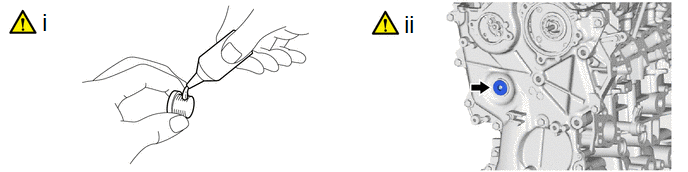

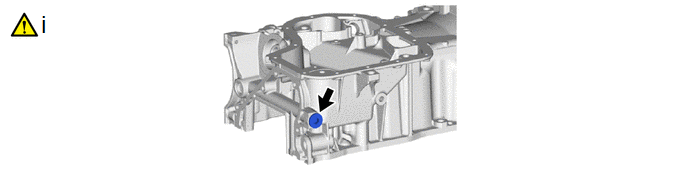

5. INSTALL STRAIGHT SCREW PLUG

(1) Using a 10 mm hexagon socket wrench, install the straight screw plug and a new gasket to the stiffening crankcase assembly.

Torque:

44 N·m {449 kgf·cm, 32 ft·lbf}

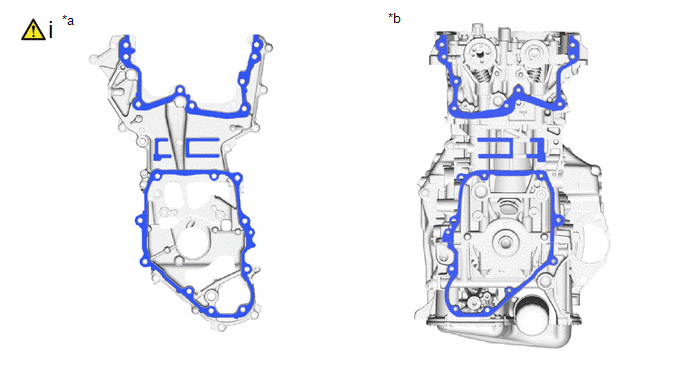

6. INSTALL STIFFENING CRANKCASE ASSEMBLY

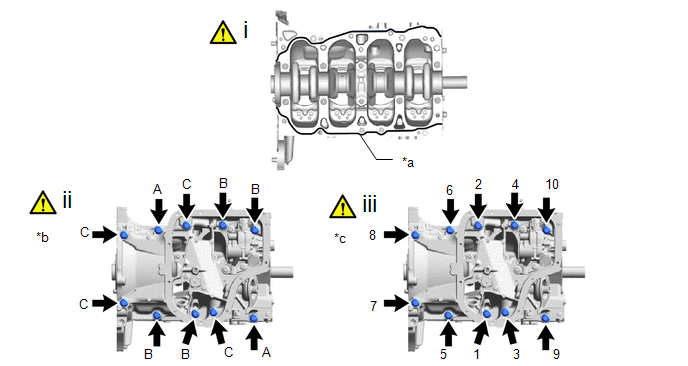

*a

Seal Packing

*b

Bolt Type

*c

Tightening Order

-

-

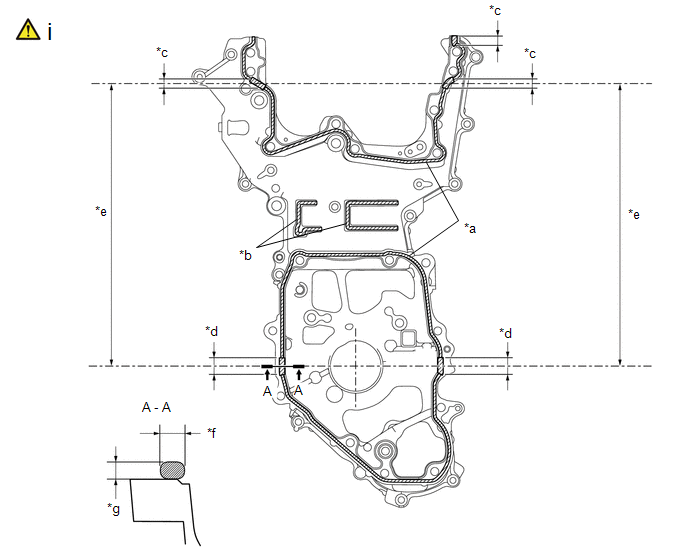

(1) Apply seal packing in a continuous line as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Dimension:

Area

Specified Condition

Continuous Line

2.5 to 3.5 mm (0.0984 to 0.138 in.)

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the stiffening crankcase assembly within 3 minutes and tighten the bolts within 15 minutes of applying seal packing.
  • Do not add engine oil for at least 2 hours after the installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).

(2) Temporarily install the stiffening crankcase assembly with the 10 bolts.

Bolt Length :

Item

Length

Bolt (A)

40 mm (1.57 in.)

Bolt (B)

90 mm (3.54 in.)

Bolt (C)

170 mm (6.69 in.)

(3) Tighten the 10 bolts in the order shown in the illustration to install the stiffening crankcase assembly.

Torque:

43 N·m {438 kgf·cm, 32 ft·lbf}

7. INSTALL OIL PUMP ASSEMBLY

Click here

8. INSTALL ENGINE OIL LEVEL SENSOR

Click here

9. INSTALL OIL STRAINER SUB-ASSEMBLY

(1) Apply a light coat of engine oil to a new oil strainer gasket.

(2) Using an 8 mm socket wrench, install the oil strainer sub-assembly and oil strainer gasket with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

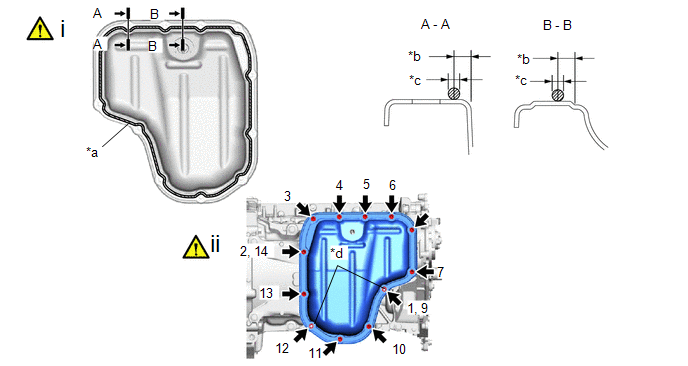

10. INSTALL OIL PAN SUB-ASSEMBLY

*a

Seal Packing

*b

4.5 mm (0.177 in.)

*c

2.5 to 3.5 mm (0.0984 to 0.138 in.)

*d

Nut

(1) Apply seal packing in a continuous line as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Diameter:

2.5 to 3.5 mm (0.0984 to 0.138 in.)

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the oil pan sub-assembly within 3 minutes and tighten the bolts and nuts within 10 minutes of applying seal packing.
  • Do not start the engine for at least 2 hours after installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).

(2) Install the oil pan sub-assembly with the 10 bolts and 2 nuts in several steps in the order shown in the illustration.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

11. INSTALL OIL PAN DRAIN PLUG

Torque:

40 N·m {408 kgf·cm, 30 ft·lbf}

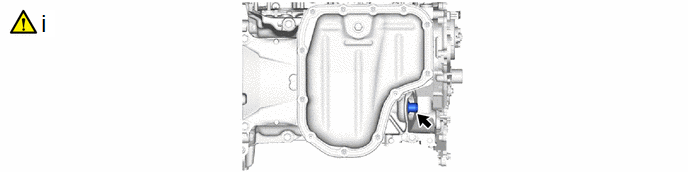

12. INSTALL OIL FILTER UNION

(1) Using a 12 mm hexagon socket wrench, install the oil filter union to the stiffening crankcase assembly.

Torque:

29.5 N·m {301 kgf·cm, 22 ft·lbf}

13. INSTALL OIL FILTER SUB-ASSEMBLY

Click here

14. INSTALL REAR ENGINE OIL SEAL

Click here

15. INSTALL CYLINDER BLOCK WATER JACKET SPACER

16. INSTALL CYLINDER HEAD GASKET

Click here

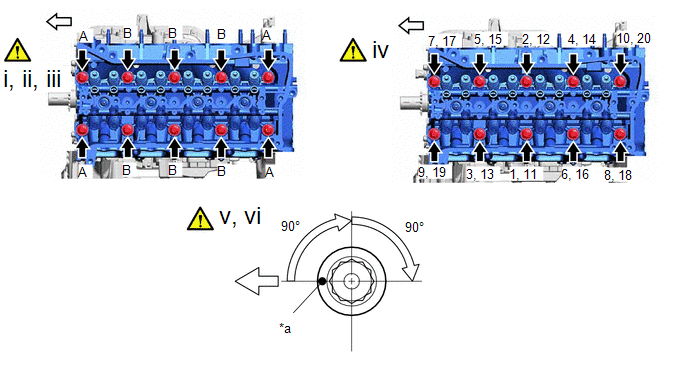

17. INSTALL CYLINDER HEAD SUB-ASSEMBLY

HINT:

The cylinder head set bolts are tightened in 3 progressive steps.

*a

Paint Mark

-

-

Front of Engine

-

-

(1) Place the cylinder head sub-assembly on the cylinder block sub-assembly.

NOTICE:

  • Ensure that the contact surface of the cylinder head sub-assembly is free of oil.
  • Place the cylinder head sub-assembly on the cylinder block sub-assembly gently in order not to damage the cylinder head gasket with the bottom of the cylinder head sub-assembly.

(2) Apply a light coat of engine oil to the threads and under the heads of the cylinder head set bolts.

(3) Install the 6 plate washers to the 10 cylinder head set bolts.

Bolt Length :

Item

Length

Bolt (A)

129.1 to 130.9 mm (5.08 to 5.15 in.)

Bolt (B)

139.1 to 140.9 mm (5.48 to 5.55 in.)

(4) Step 1:

1. Using a 12 mm socket wrench, install and uniformly tighten the 10 cylinder head set bolts in several steps in the order shown in the illustration.

Torque:

50 N·m {510 kgf·cm, 37 ft·lbf}

NOTICE:

Be careful not to drop the plate washers into the cylinder head sub-assembly.

(5) Step 2:

1. Mark each cylinder head set bolt head with paint as shown in the illustration.

2. Tighten the cylinder head set bolts 90° in the order shown in step 1.

(6) Step 3:

1. Tighten the cylinder head set bolts another 90° in the order shown in step 1.

2. Check that the paint marks are now facing rearward.

HINT:

Perform "Inspection After Repair" after replacing the cylinder head sub-assembly.

Click here

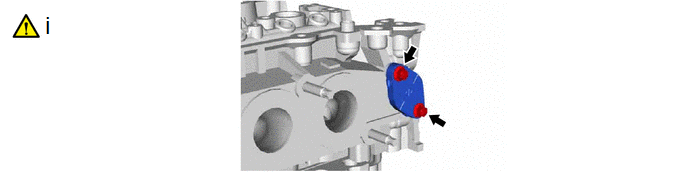

18. INSTALL WATER SEAL PLATE

(1) Using an 8 mm socket wrench, install the water seal plate and a new gasket to the cylinder head sub-assembly with the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

19. INSTALL VALVE STEM CAP

(1) Apply a light coat of engine oil to the valve stem cap ends.

(2) Install the 16 valve stem caps to the cylinder head sub-assembly.

NOTICE:

  • Install the same parts in the same combination to their original locations.
  • Do not drop the valve stem caps into the cylinder head sub-assembly.

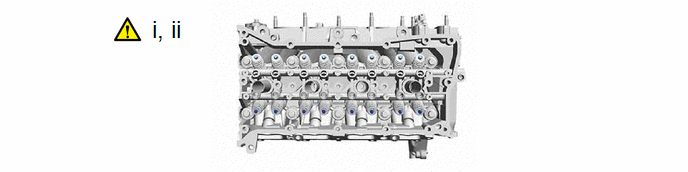

20. INSTALL VALVE LASH ADJUSTER ASSEMBLY

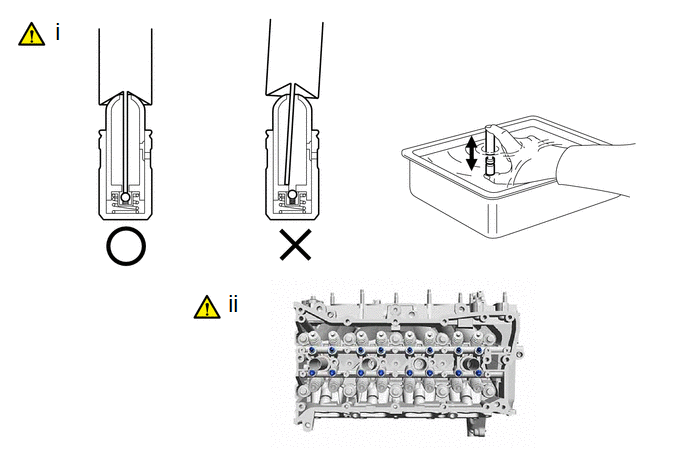

(1) Inspect the 16 valve lash adjuster assemblies before installing them.

Click here

(2) Install the 16 valve lash adjuster assemblies to the cylinder head sub-assembly.

NOTICE:

Install the same parts in the same combination to their original locations.

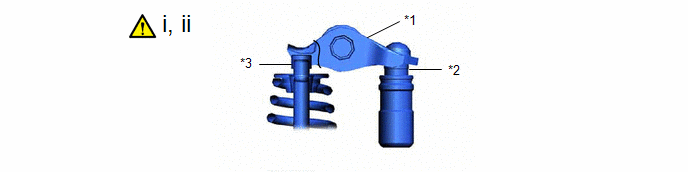

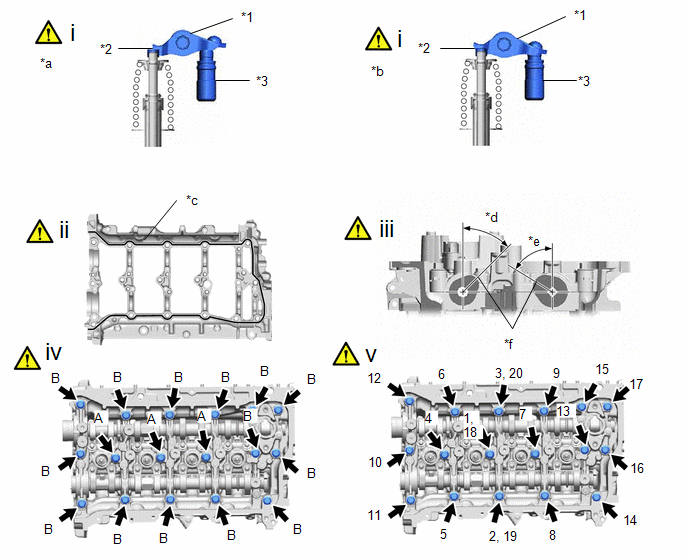

21. INSTALL NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

*1

No. 1 Valve Rocker Arm Sub-assembly

*2

Valve Lash Adjuster Assembly

*3

Valve Stem Cap

-

-

(1) Apply engine oil to the valve lash adjuster assembly tips and valve stem caps.

(2) Install the 16 No. 1 valve rocker arm sub-assemblies as shown in the illustration.

NOTICE:

Install the same parts in the same combination to their original locations.

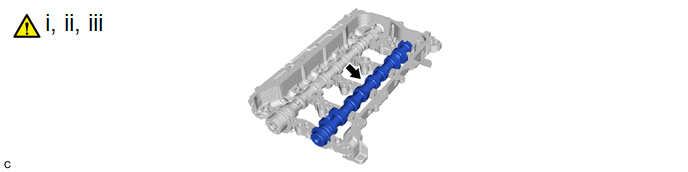

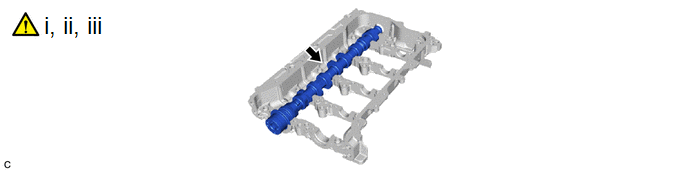

22. INSTALL EXHAUST CAMSHAFT SUB-ASSEMBLY

HINT:

Perform "Inspection After Repair" after replacing the exhaust camshaft sub-assembly.

Click here

(1) Clean the camshaft journals and camshaft housing sub-assembly.

(2) Apply a light coat of engine oil to the camshaft journals and camshaft housing sub-assembly.

(3) Install the exhaust camshaft sub-assembly to the camshaft housing sub-assembly.

23. INSTALL INTAKE CAMSHAFT SUB-ASSEMBLY

HINT:

Perform "Inspection After Repair" after replacing the intake camshaft sub-assembly.

Click here

(1) Clean the camshaft journals, camshaft housing sub-assembly and camshaft bearing caps.

(2) Apply a light coat of engine oil to the camshaft journals, camshaft housing sub-assembly and camshaft bearing caps.

(3) Install the intake camshaft sub-assembly to the camshaft housing sub-assembly.

24. INSTALL CAMSHAFT BEARING CAP

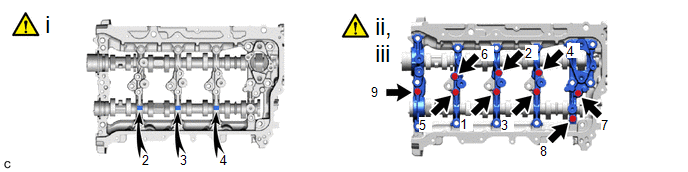

(1) Place the No. 1 camshaft bearing cap, No. 2 camshaft bearing cap and 2 No. 3 camshaft bearing caps and No. 4 camshaft bearing cap in their correct locations.

(2) Install and uniformly tighten the 9 bolts in the order shown in the illustration.

Torque:

16 N·m {163 kgf·cm, 12 ft·lbf}

(3) Check the torque of each bolt again.

25. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY

*1

No. 1 Valve Rocker Arm Sub-assembly

*2

Valve Stem Cap

*3

Valve Lash Adjuster Assembly

-

-

*a

Incorrect

*b

Correct

*c

Seal Packing

*d

17° to 47°

*e

42° to 72°

*f

No. 1 Cylinder Cam Nose

(1) Check that the No. 1 valve rocker arm sub-assemblies are installed as shown in the illustration.

(2) Apply seal packing in a continuous line as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Diameter:

3.0 to 4.0 mm (0.118 to 0.157 in.)

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the camshaft housing sub-assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
  • Do not start the engine for at least 2 hours after installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).

(3) Position the intake camshaft sub-assembly and exhaust camshaft sub-assembly as shown in the illustration.

(4) Temporarily install the camshaft housing sub-assembly with the 17 bolts.

Bolt Length :

Item

Length

Bolt (A)

40 mm (1.57 in.)

Bolt (B)

65 mm (2.56 in.)

(5) Tighten the 17 bolts in several steps in the order shown in the illustration.

Torque:

28.5 N·m {291 kgf·cm, 21 ft·lbf}

NOTICE:

  • Do not add engine oil for at least 2 hours after installation.
  • Do not start the engine for at least 2 hours after installation.
  • After installation, if the seal packing has seeped out, wipe it off.

26. INSTALL FUEL PUMP LIFTER GUIDE

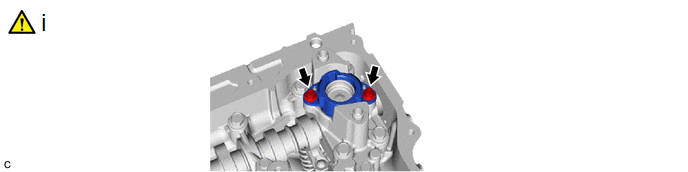

(1) Using an 8 mm socket wrench, install the fuel pump lifter guide to the No. 4 camshaft bearing cap with the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

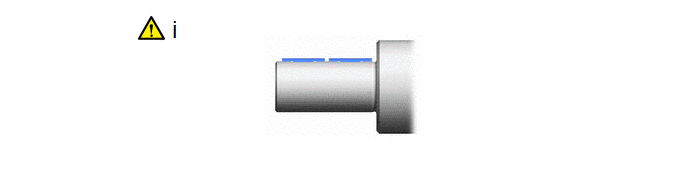

27. INSTALL CRANKSHAFT TIMING GEAR KEY

(1) Using a plastic hammer, tap in the 2 crankshaft timing gear keys.

HINT:

Tap in the crankshaft timing gear keys until they contact the crankshaft as shown in the illustration.

28. INSTALL OIL NOZZLE VALVE SUB-ASSEMBLY

29. INSTALL TIMING CHAIN COVER ASSEMBLY

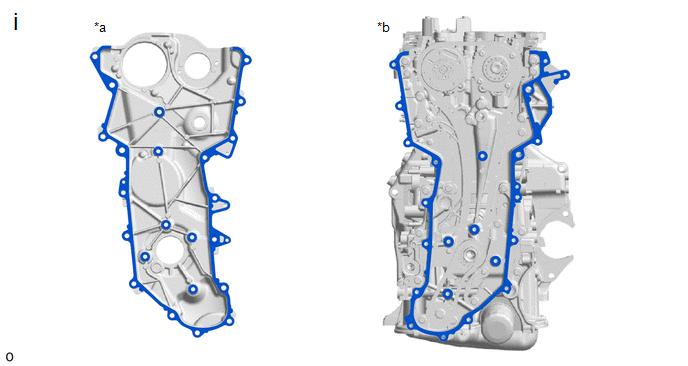

*a

Timing Chain Cover Assembly Side

*b

Engine Assembly Side

(1) Clean the contact surfaces of the timing chain cover assembly, cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block sub-assembly and stiffening crankcase assembly, and confirm that no oil, moisture, or other foreign matter is on the surfaces.

*a

2.5 to 3.5 mm (0.0984 to 0.138 in.)

*b

2.0 to 6.0 mm (0.0787 to 0.236 in.)

*c

10 mm (0.394 in.)

*d

20 mm (0.787 in.)

*e

344.2 mm (1.13 ft.)

*f

4.0 to 6.0 mm (0.157 to 0.236 in.)

*g

3.0 to 4.0 mm (0.118 to 0.157 in.)

-

-

Seal Packing

-

-

(1) Apply seal packing to the timing chain cover assembly as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

NOTICE:

  • Clean the surfaces with non-residue solvent before applying seal packing.
  • Install the timing chain cover assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
  • Do not add engine oil for at least 2 hours after installation.
  • Do not start the engine for at least 2 hours after installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).

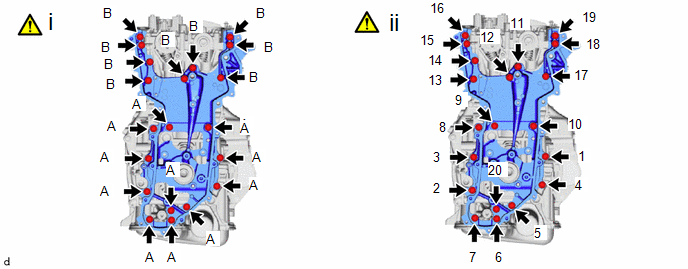

(1) Temporarily install the timing chain cover assembly with the 20 bolts.

Bolt Length:

Bolt

Length

(A)

30 mm (1.18 in.)

(B)

45 mm (1.77 in.)

NOTICE:

Make sure there is no oil on the bolts. If oil is found on any bolt, clean it before installation.

(2) Tighten the 20 bolts in the order shown in the illustration.

Torque:

27 N·m {275 kgf·cm, 20 ft·lbf}

30. INSTALL CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

HINT:

Perform "Inspection After Repair" after replacing the camshaft timing exhaust gear assembly.

Click here

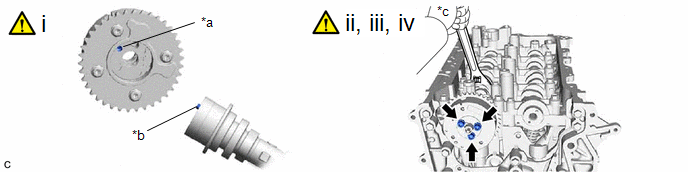

*a

Knock Pin Hole

*b

Knock Pin

*c

Hold

-

-

(1) Align and fit the knock pin of the exhaust camshaft sub-assembly to the knock pin hole of the camshaft timing exhaust gear assembly.

(2) Using a wrench, hold the hexagonal portion of the exhaust camshaft sub-assembly.

NOTICE:

  • Be careful not to damage the cylinder head sub-assembly or spark plug tube with the wrench.
  • Do not disassemble the camshaft timing exhaust gear assembly.

(3) Install the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly).

(4) Using a 5 mm hexagon socket wrench, install the camshaft timing exhaust gear assembly with the 3 bolts.

Torque:

19 N·m {194 kgf·cm, 14 ft·lbf}

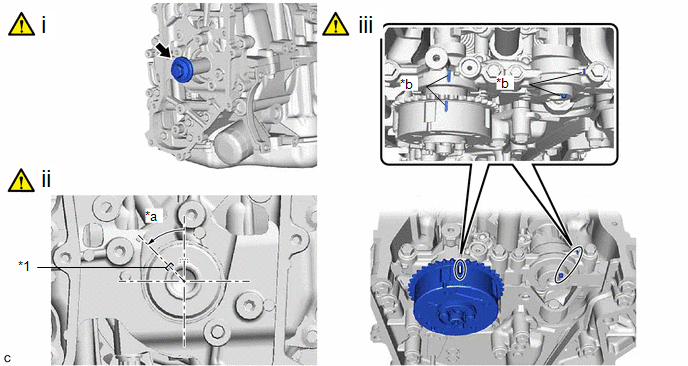

31. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

*1

Crankshaft Timing Gear Key

-

-

*a

44.2°

*b

Timing Mark

(1) Temporarily install the crankshaft pulley bolt.

(2) Rotate the crankshaft 44.2° counterclockwise to position the crankshaft timing gear key as shown in the illustration.

(3) Check that the timing marks of the camshaft timing exhaust gear assembly and knock pin are as shown in the illustration.

32. INSTALL NO. 1 CHAIN VIBRATION DAMPER

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

33. INSTALL CHAIN TENSIONER SLIPPER

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

34. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

HINT:

After replacing or removing and installing the No. 1 chain tensioner assembly, an abnormal noise may occur at start up until the oil in the line has had time to replenish.

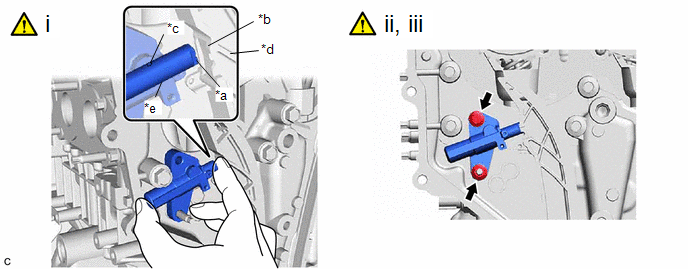

*a

End of the plunger

*b

Groove

*c

Oil Hole

*d

No. 1 Chain Tensioner Slipper

*e

Plunger

-

-

(1) While slightly pushing in the plunger of the No. 1 chain tensioner assembly, install the chain tensioner slipper.

HINT:

  • Make sure that the end of the plunger is correctly seated in the groove of the No. 1 chain tensioner slipper.
  • Make sure that the oil hole of the plunger is facing up.

(2) Using an 8 mm socket wrench, install the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

(3) Install the No. 1 chain tensioner assembly with the nut.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

35. INSTALL CRANKSHAFT TIMING SPROCKET

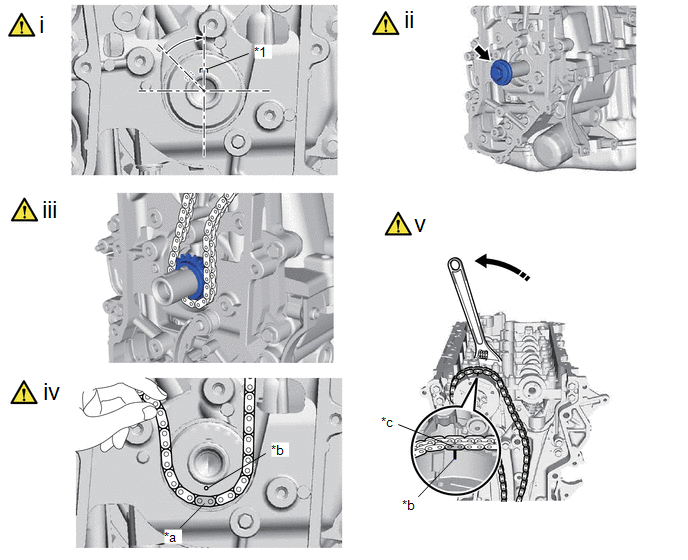

36. INSTALL CHAIN SUB-ASSEMBLY

*1

Crankshaft Timing Gear Key

-

-

*a

Paint Mark (Yellow)

*b

Timing Mark

*c

Paint Mark (Orange)

-

-

Turn

-

-

(1) Set the crankshaft timing gear key as shown in the illustration.

(2) Remove the crankshaft pulley bolt.

(3) Install the crankshaft timing sprocket and chain sub-assembly.

(4) Align the paint mark (yellow) of the chain sub-assembly with the timing mark of the crankshaft timing sprocket and install the chain sub-assembly to the crankshaft timing sprocket.

(5) Using a wrench and the hexagonal portion of the exhaust camshaft sub-assembly, rotate the exhaust camshaft sub-assembly counterclockwise, align the timing mark of the camshaft timing exhaust gear assembly with the paint mark (orange) of the chain sub-assembly, and install the chain sub-assembly to the camshaft timing exhaust gear assembly.

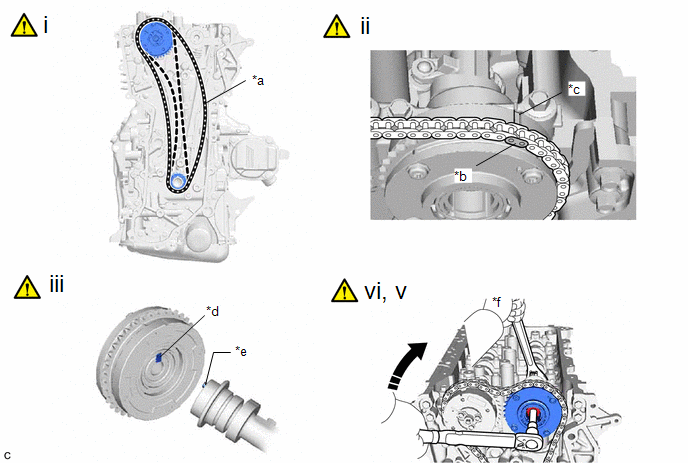

37. INSTALL CAMSHAFT TIMING GEAR ASSEMBLY

HINT:

Perform "Inspection After Repair" after replacing the camshaft timing gear assembly.

Click here

*a

Loosen

*b

Paint Mark (Orange)

*c

Timing Mark

*d

Knock Pin Hole

*e

Knock Pin

*f

Hold

Turn

-

-

(1) Hold the hexagonal portion of the exhaust camshaft sub-assembly with a wrench and turn the camshaft timing exhaust gear assembly clockwise to loosen the chain sub-assembly between the camshaft timing exhaust gear assembly and crankshaft timing sprocket as shown in the illustration.

(2) Align the paint mark (orange) of the chain sub-assembly with the timing mark of the camshaft timing gear assembly and install the chain sub-assembly to the camshaft timing gear assembly.

(3) Align and fit the knock pin of the intake camshaft sub-assembly to the knock pin hole of the camshaft timing gear assembly.

(4) Using a wrench, hold the hexagonal portion of the intake camshaft sub-assembly.

NOTICE:

  • Be careful not to damage the camshaft housing sub-assembly, cylinder head sub-assembly and spark plug tube with the wrench.
  • Do not disassemble the camshaft timing gear assembly.

(5) Using a 10 mm bi-hexagonal wrench, install the camshaft timing gear assembly with the bolt.

Torque:

86 N·m {877 kgf·cm, 63 ft·lbf}

38. INSTALL OIL PUMP DRIVE CHAIN SUB-ASSEMBLY

*1

Oil Pump Drive Sprocket

*2

Oil Pump Drive Shaft Sprocket

*3

Crankshaft Timing Gear Key

*4

Oil Pump Assembly

*a

Mark Plate

*b

Timing Mark

(1) Set the crankshaft timing gear key as shown in the illustration.

(2) Turn the oil pump drive shaft so that the flat face is facing upward.

(3) Align the mark plates with the timing marks of the oil pump drive sprocket and oil pump drive shaft sprocket as shown in the illustration.

HINT:

Make sure the mark plates of the oil pump drive chain sub-assembly are facing away from the engine assembly.

(4) With the oil pump drive chain sub-assembly placed around the oil pump drive sprocket and oil pump drive shaft sprocket, install the oil pump drive sprocket to the crankshaft and temporarily install the oil pump drive shaft sprocket to the oil pump drive shaft.

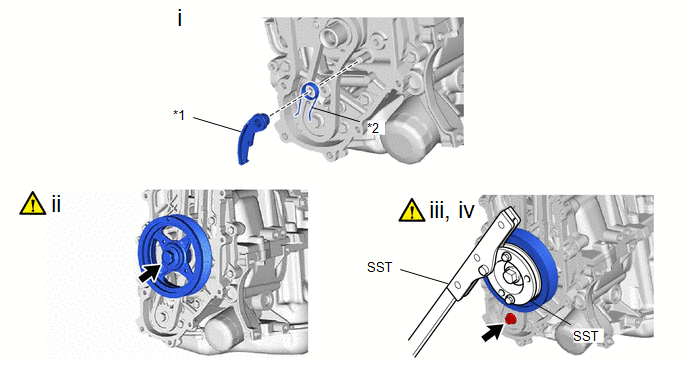

39. INSTALL CHAIN TENSIONER PLATE

*1

Chain Tensioner Plate

*2

Chain Damper Spring

(1) Install the chain damper spring to the chain tensioner plate, and then install the chain tensioner plate.

(2) Temporarily install the crankshaft pulley assembly with the crankshaft pulley bolt.

(3) Using SST, hold the crankshaft pulley assembly and tighten the bolt.]

SST: 09213-54015

SST: 09330-00021

Torque:

50 N·m {510 kgf·cm, 37 ft·lbf}

(4) Remove SST, the crankshaft pulley bolt and crankshaft pulley assembly.

40. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

Click here

41. INSTALL NO. 2 TIMING CHAIN COVER ASSEMBLY

*a

No. 2 Timing Chain Cover Assembly Side

*b

Timing Chain Cover Assembly Side

(1) Clean the contact surfaces of the No. 2 timing chain cover assembly and timing chain cover assembly, and confirm that no oil, moisture, or other foreign matter is on the surfaces.

Seal Packing

-

-

(1) Apply seal packing to the No. 2 timing chain cover assembly as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Diameter:

2.5 to 3.5 mm (0.0984 to 0.138 in.)

NOTICE:

  • Clean the surfaces with non-residue solvent before applying seal packing.
  • Install the No. 2 timing chain cover assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
  • Do not add engine oil for at least 2 hours after installation.
  • Do not start the engine for at least 2 hours after installation.
  • Make sure that the diameter at the start and end of each line of seal packing is 5 +/- 2 mm (0.197 +/- 0.0787 in.).

(2) Temporarily install the No. 2 timing chain cover assembly to the timing chain cover assembly with the 20 bolts.

NOTICE:

Make sure there is no oil on the bolts. If oil is found on any bolt, clean it before installation.

(3) Tighten the 20 bolts in the order shown in the illustration.

Torque:

24 N·m {245 kgf·cm, 18 ft·lbf}

(4) Install the engine mounting bracket RH with the 3 bolts in the order shown in the illustration.

Torque:

43 N·m {438 kgf·cm, 32 ft·lbf}

42. INSTALL STRAIGHT SCREW PLUG

(1) Apply adhesive to the straight screw plug.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

(2) Using a 10 mm hexagon wrench, install the straight screw plug.

Torque:

40 N·m {408 kgf·cm, 30 ft·lbf}

NOTICE:

  • Install the straight screw plug within 3 minutes of applying adhesive.
  • Do not add engine oil for at least 1 hour after installation.

43. INSTALL ENGINE MOUNTING BRACKET RH

44. INSTALL TIMING CHAIN COVER OIL SEAL

Click here

45. INSTALL SPARK PLUG TUBE GASKET

46. TEMPORARILY INSTALL CAMSHAFT POSITION SENSOR

47. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

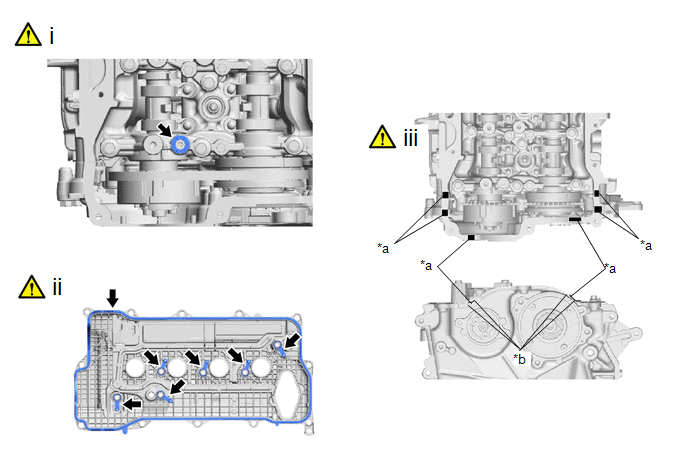

*a

Seal Packing Diameter: 3.0 to 6.0 mm (0.118 to 0.236 in.)

*b

Mark

Seal Packing

-

-

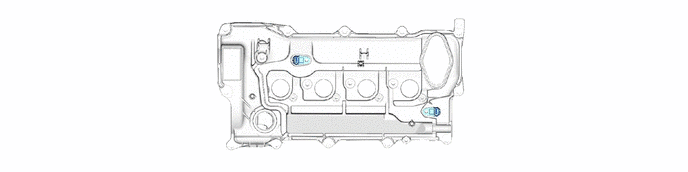

(1) Install a new camshaft bearing cap oil hole gasket to the No. 1 camshaft bearing cap.

NOTICE:

Remove any oil from the contact surfaces.

(2) Install 7 new cylinder head cover gaskets to the cylinder head cover sub-assembly.

NOTICE:

Remove any oil from the contact surfaces.

(3) Apply seal packing as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Standard Seal Packing Diameter:

3.0 to 6.0 mm (0.118 to 0.236 in.)

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the cylinder head cover sub-assembly within 3 minutes and tighten the bolts within 15 minutes of applying seal packing.
  • Do not start the engine for at least 2 hours after installation.

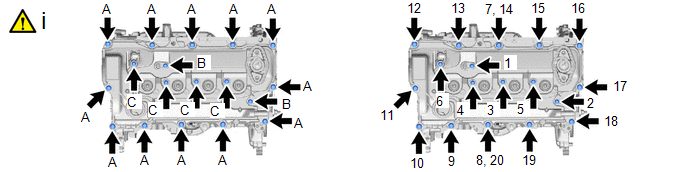

(1) Using an 8 mm socket wrench, install the 2 new bolts (B) and cylinder head cover sub-assembly with 4 new bolts (C) and the 12 bolts (A) in the order shown in the illustration.

Bolt Length:

Bolt

Length

Width Across Flats

(A)

23.5 mm (0.925 in.)

10 mm (0.394 in.)

(B), (C)

30 mm (1.18 in.)

8 mm (0.315 in.)

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

HINT:

After tightening all bolts, check the tightening torque of the bolts (7) and (8). Retighten them if necessary.

48. INSTALL WATER OUTLET PIPE GASKET

49. INSTALL WATER BY-PASS OUTLET SUB-ASSEMBLY

(1) Using an 8 mm socket wrench, install the water by-pass outlet sub-assembly and a new water pipe outlet gasket to the cylinder head sub-assembly with the 3 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

50. INSTALL WATER OUTLET GASKET

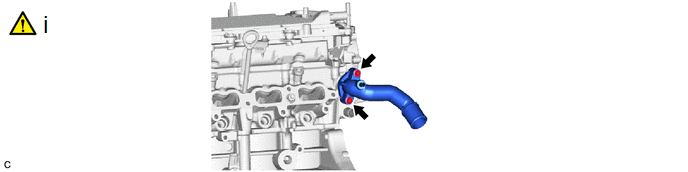

51. INSTALL WATER OUTLET

(1) Using an 8 mm socket wrench, install the water outlet and a new water outlet gasket to the cylinder head sub-assembly with the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

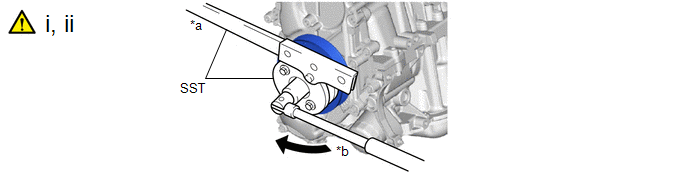

52. INSTALL CRANKSHAFT PULLEY ASSEMBLY

*a

Hold

*b

Turn

(1) Align the crankshaft timing gear key with the key groove of the crankshaft pulley assembly.

(2) Using SST, hold the crankshaft pulley assembly and install the crankshaft pulley bolt.

SST: 09213-54015

SST: 09330-00021

Torque:

260 N·m {2651 kgf·cm, 192 ft·lbf}

53. INSTALL VACUUM PUMP ASSEMBLY

Click here

54. INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

Click here

55. INSTALL CRANKSHAFT POSITION SENSOR

Click here

56. INSTALL OIL FILLER CAP GASKET

57. INSTALL OIL FILLER CAP ASSEMBLY

58. INSTALL CAM TIMING CONTROL MOTOR O-RING

Click here

59. INSTALL CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

Click here

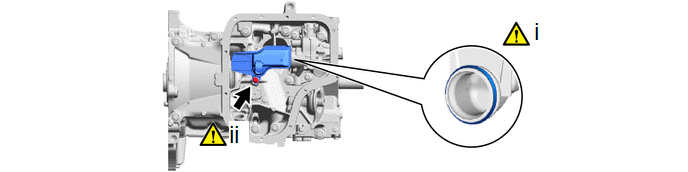

60. INSTALL CAM TIMING OIL CONTROL SOLENOID O-RING

Click here

61. INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Click here

62. INSTALL OIL PRESSURE CONTROL VALVE ASSEMBLY

Click here

63. INSTALL OIL PRESSURE AND TEMPERATURE SENSOR

Click here

64. INSTALL KNOCK CONTROL SENSOR

Click here

65. INSTALL SPARK PLUG

Click here

    READ NEXT:

     Installation

    INSTALLATION CAUTION / NOTICE / HINT COMPONENTS (INSTALLATION) Procedure Part Name Code 1 STUD BOLT - - - 2 WIRE HARNESS CLAMP B

     Front Crankshaft Oil Seal

     Removal

    REMOVAL CAUTION / NOTICE / HINT COMPONENTS (REMOVAL) Procedure Part Name Code 1 FRONT WHEEL RH - - - - 2 NO. 1 ENGINE UNDER COVER ASSEM

    SEE MORE:

     ECM Communication Stop Mode

    DESCRIPTION Detection Item Symptom Trouble Area ECM Communication Stop Mode Communication stop for "ECM (Engine)" is indicated on the "Communication Bus Check" screen of the GTS. Click here ECM

     Camshaft Position "A" - Timing Over-Retarded Bank 1 (P001200)

    DESCRIPTION Refer to DTC P001001. Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note P001200 Camshaft Position "A" - Timing Over-Retarded Bank 1 With engine warmed up and while driving in urban area (engine speed 4000 rpm or less

    © 2020-2024 Copyright www.tcorollacross.com
